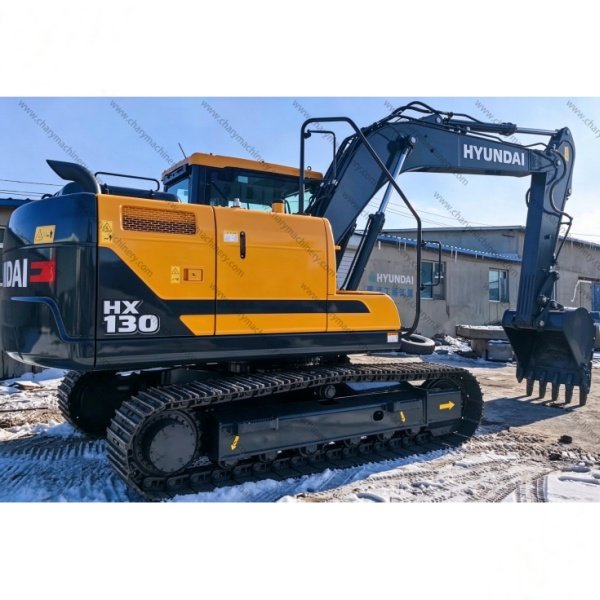

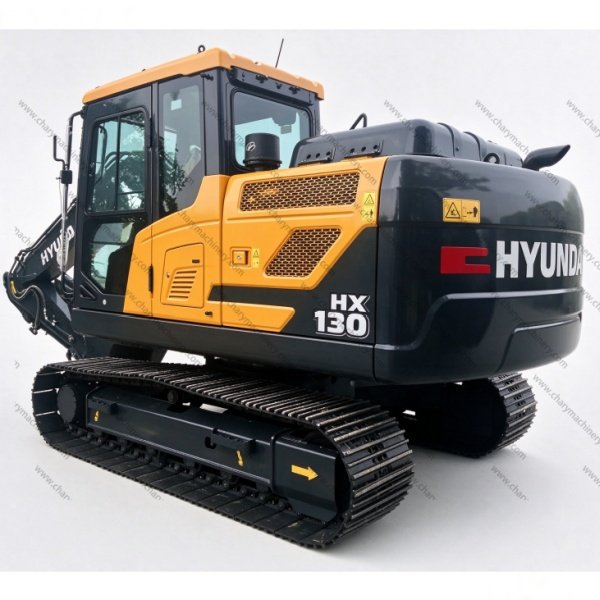

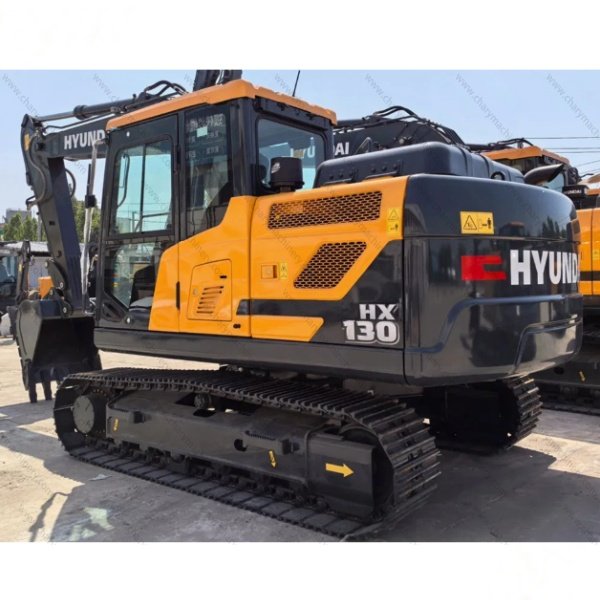

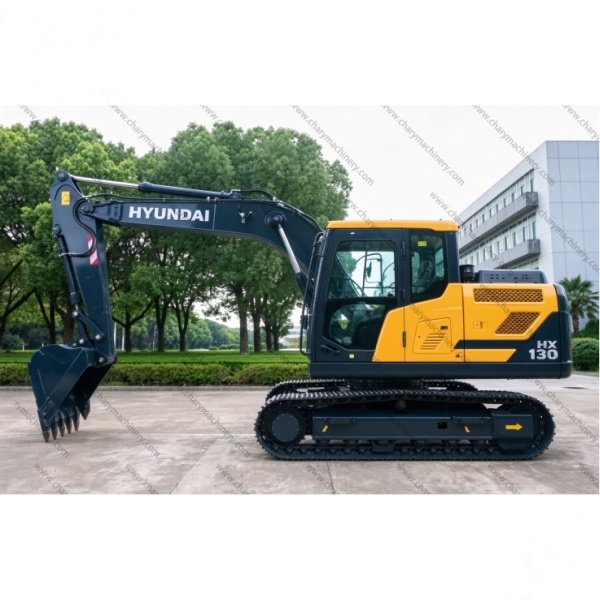

Hyundai HX130 13 Ton Medium Hydraulic Excavator

13 ton medium digger
hydraulic construction excavator
Hyundai heavy machinery
Hyundai HX130 13 Ton Medium Hydraulic Excavator
Hyundai HX130 Excavator
Hyundai HX130 Medium Excavator
13 ton medium digger
hydraulic construction excavator
Hyundai heavy machinery
Hyundai HX130 13 Ton Medium Hydraulic Excavator
Hyundai HX130 Excavator
Hyundai HX130 Medium Excavator

Hyundai HX130 Medium Excavator

The Hyundai HX130 is a 13-ton medium hydraulic excavator designed for multi-scenario engineering operations. Equipped with Hyundai’s advanced original engine and optimized hydraulic control system, it balances powerful digging performance with outstanding fuel economy. The reinforced boom and arm structure improves durability under heavy load conditions. The spacious operator cabin features shock absorption design and clear control layout, reducing fatigue during long shifts. This machine is widely used in municipal construction, road building, earthmoving, quarrying and site renovation. Hyundai’s global spare parts network guarantees convenient maintenance support, extending machine service life for your projects.

Hyundai HX130 Medium Excavator

The Hyundai HX130 is a versatile 13-ton medium hydraulic excavator. It comes with strong hydraulic performance and optimized fuel efficiency. The machine delivers stable digging power and comfortable operator cabin. Suitable for road construction, earthmoving, quarry and municipal jobs. Global spare parts support and long service life.

Main Technical Parameters
ENGINEOVERALL DIMENSIONS
Manufacturer—CumminsBoom Lengthmm4,600
Model—F4.5Arm Lengthmm2,260
Emission Standard—China Stage IVBucket Capacity (STD)m³0.52
Rated Power (Gross)kW/hp/ps/rpm89(119)/2200Overall Lengthmm7,820
Rated Power (Net)kW/hp/ps/rpm87(116)/2200Overall Height (Boom)mm2,700
Max TorqueN·m/rpm515(500)/1300Overall Height (Cab)mm2,950
Displacementcc4,500Track Ground Contact Lengthmm2,780
No. of Cylinders - Bore×StrokeEA-mm4-107×124Track Lengthmm3,485
BatteryEA-V×Ah2-75Counterweight Ground Clearancemm890
Starting MotorV/kW24/4.8Tail Swing Radiusmm2,335
AlternatorV/A28/70Overall Widthmm2,540
PERFORMANCETrack Widthmm500
Swing Speedrpm10.95Gaugemm1,990
Swing TorquekN·m34.44Min. Ground Clearancemm425
Travel Speedkm/hr3.13/5.54OTHERS
Gradeabilitydeg35Fuel Tank CapacityL270
Max Traction Forceton13.5Hydraulic Oil Tank Capacity (System)L210
Bucket Digging Force (ISO) [Boost]ton8.87(9.68)Engine OilL14
Arm Digging Force (ISO) [Boost]ton6.18(6.74)Engine CoolantL30
UNDERCARRIAGE


Top RollersEA (Each Side)1


Track RollersEA (Each Side)6


Track ShoesEA (Each Side)43


Ground Pressurekgf/cm²0.41
