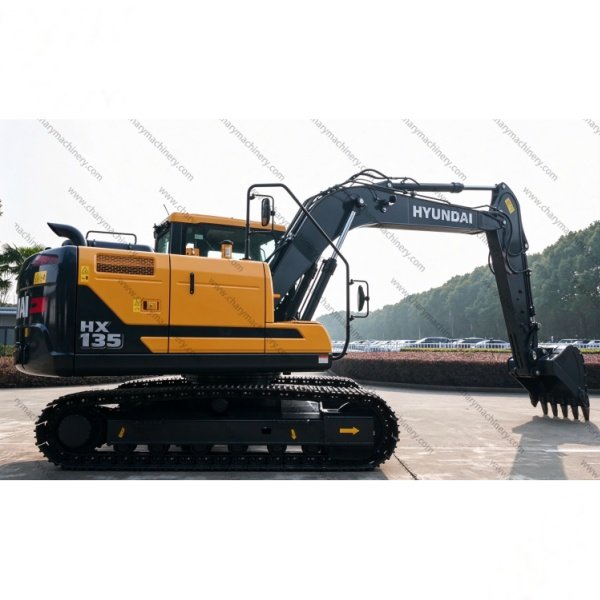

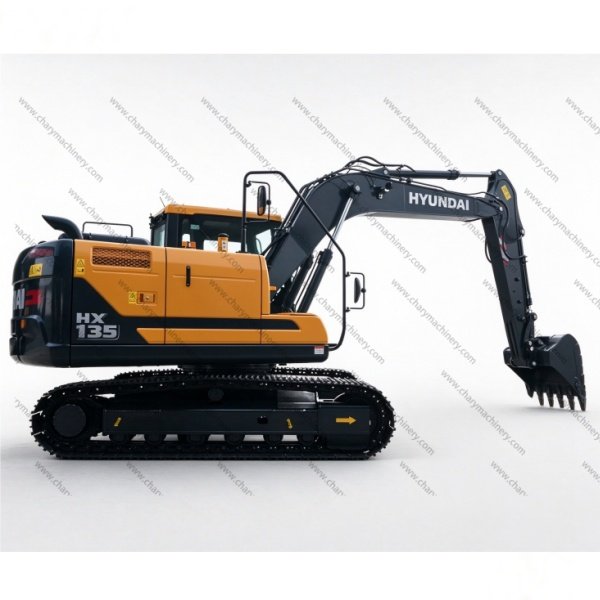

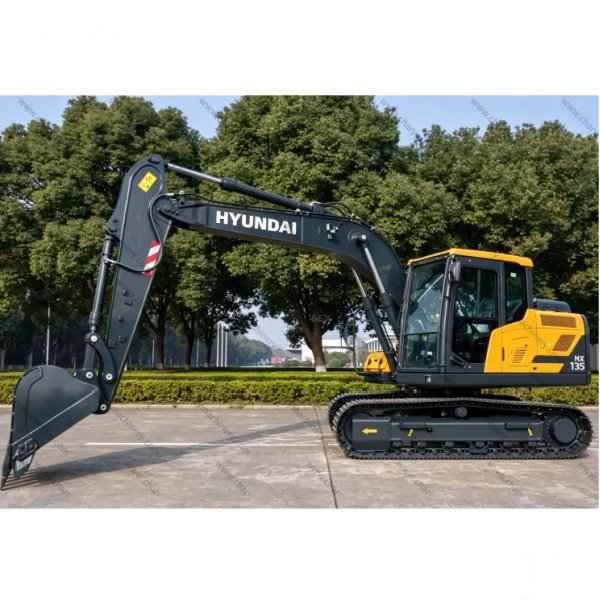

Hyundai HX135 Crawler Excavator

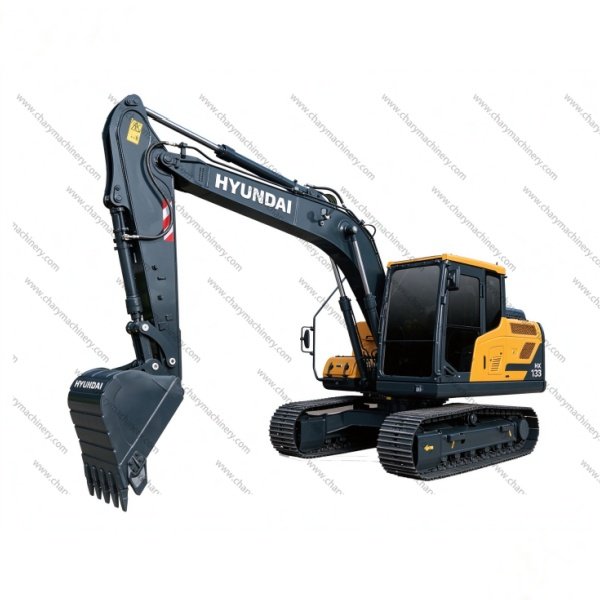

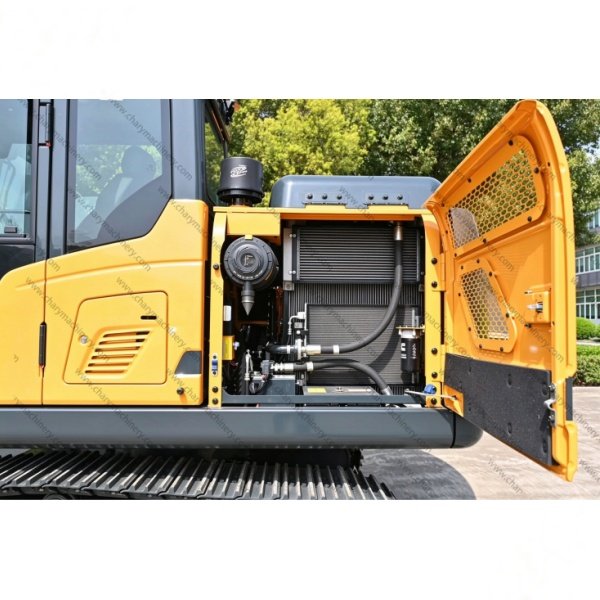

The Hyundai HX135 crawler excavator is a 13.6-ton construction machine powered by the Cummins F4.5 engine, meeting China National IV emission standard. With 89kW rated power and a 0.52m³ standard bucket, it delivers reliable digging force and stable performance for earthmoving, road construction, site development and municipal works.
Hyundai HX135 Crawler Excavator

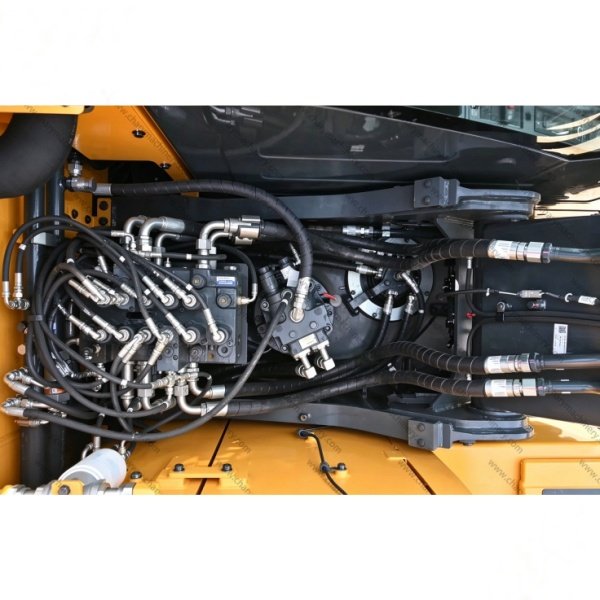

Equipped with a 4600mm main boom and 2500mm arm, this Hyundai HX135 excavator ensures flexible operation in narrow working sites. It features strong climbing ability, great traction and low ground pressure, adapting to muddy, rough and uneven terrain. The hydraulic system provides smooth control and high efficiency while reducing fuel consumption.
| Main Technical Parameters | |||||
| ENGINE | OVERALL DIMENSIONS | ||||
| Manufacturer | — | Cummins | Boom Length | mm | 4,600 |
| Model | — | F4.5 | Arm Length | mm | 2,260 |
| Emission Standard | — | China Stage IV | Bucket Capacity (STD) | m³ | 0.52 |
| Rated Power (Gross) | kW/hp/ps/rpm | 89(119)/2200 | Overall Length | mm | 7,820 |
| Rated Power (Net) | kW/hp/ps/rpm | 87(116)/2200 | Overall Height (Boom) | mm | 2,700 |
| Max Torque | N·m/rpm | 515(500)/1300 | Overall Height (Cab) | mm | 2,950 |
| Displacement | cc | 4,500 | Track Ground Contact Length | mm | 2,780 |
| No. of Cylinders - Bore×Stroke | EA-mm | 4-107×124 | Track Length | mm | 3,485 |
| Battery | EA-V×Ah | 2-75 | Counterweight Ground Clearance | mm | 890 |
| Starting Motor | V/kW | 24/4.8 | Tail Swing Radius | mm | 2,335 |
| Alternator | V/A | 28/70 | Overall Width | mm | 2,540 |
| PERFORMANCE | Track Width | mm | 500 | ||
| Swing Speed | rpm | 10.95 | Gauge | mm | 1,990 |
| Swing Torque | kN·m | 34.44 | Min. Ground Clearance | mm | 425 |
| Travel Speed | km/hr | 3.13/5.54 | OTHERS | ||
| Gradeability | deg | 35 | Fuel Tank Capacity | L | 270 |
| Max Traction Force | ton | 13.5 | Hydraulic Oil Tank Capacity (System) | L | 210 |
| Bucket Digging Force (ISO) [Boost] | ton | 8.87(9.68) | Engine Oil | L | 14 |
| Arm Digging Force (ISO) [Boost] | ton | 6.18(6.74) | Engine Coolant | L | 30 |
| UNDERCARRIAGE | |||||
| Top Rollers | EA (Each Side) | 1 | |||
| Track Rollers | EA (Each Side) | 6 | |||
| Track Shoes | EA (Each Side) | 43 | |||
| Ground Pressure | kgf/cm² | 0.41 | |||
