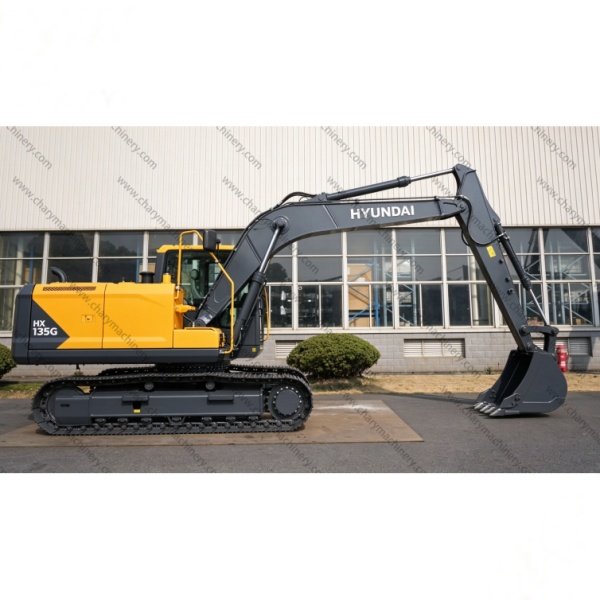

Hyundai HX135G Crawler Excavator

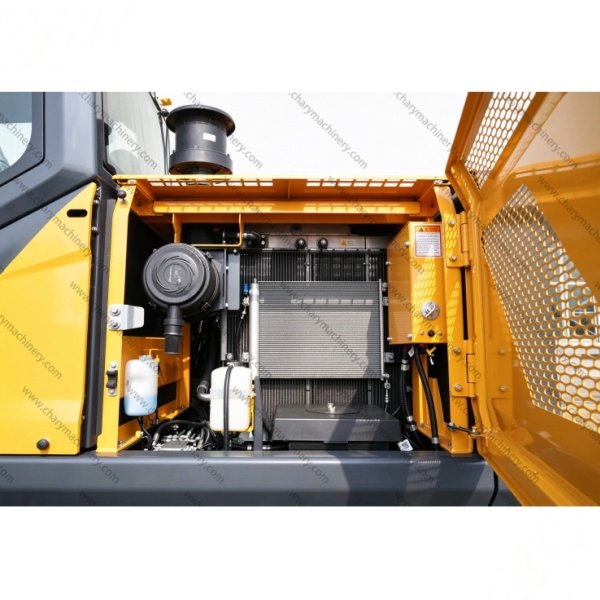

13 ton hydraulic digger

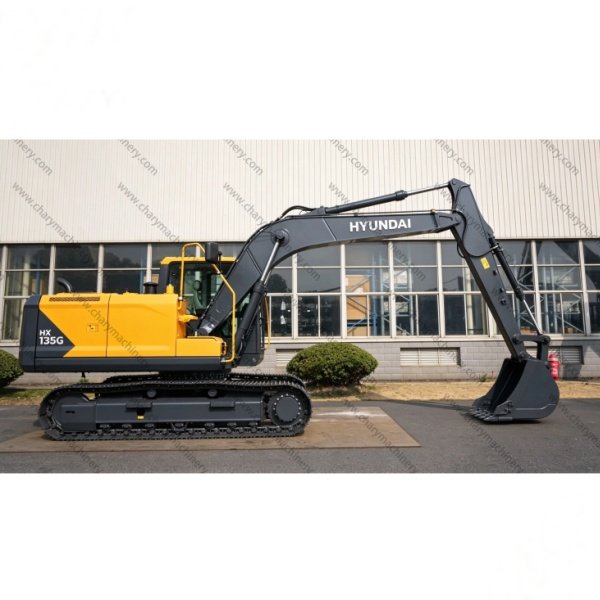

13 Ton Hydraulic Digger For Construction

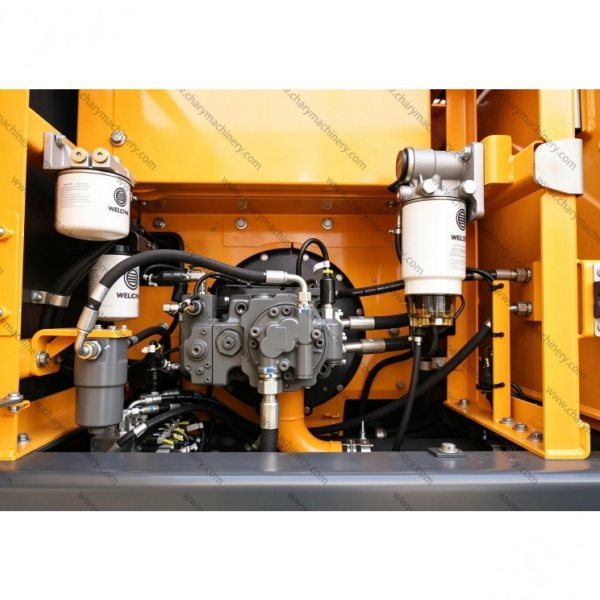

municipal excavator

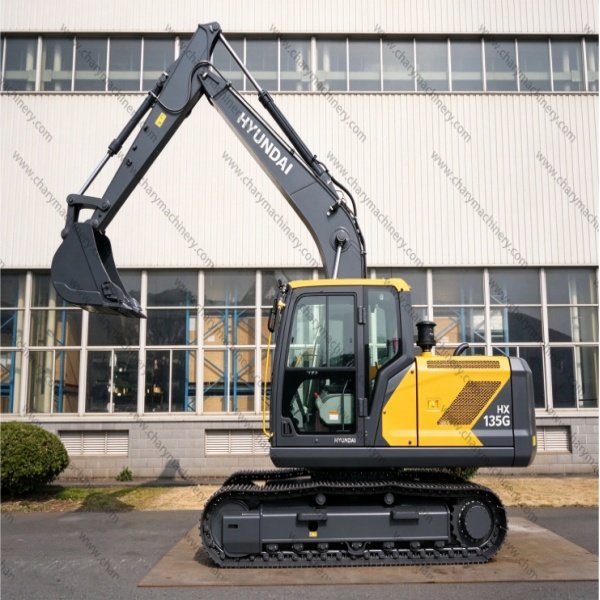

Hyundai earthmoving machine
Hyundai HX135G Medium Crawler Excavator

Hyundai HX135G Medium Crawler Excavator

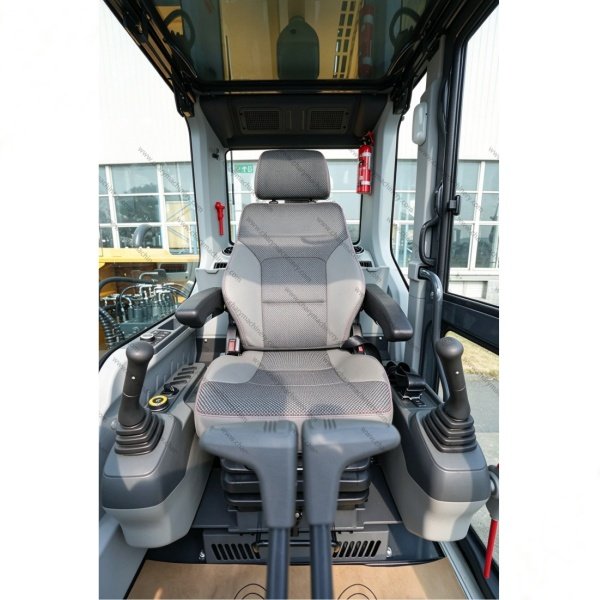

Hyundai HX135G is a 13-ton medium crawler excavator designed for general engineering tasks. It is equipped with a reliable engine and optimized hydraulic system, delivering steady digging force and great fuel economy. The strengthened boom and arm structure can withstand frequent heavy-duty operation. The ergonomic enclosed cabin offers good vision and low noise, easing operator fatigue. Widely used in municipal works, earthmoving, road renovation and site clearing. It can match breakers, grapples and other attachments, with convenient maintenance and global spare parts service.

Hyundai HX135G Medium Crawler Excavator

The Hyundai HX135G is a 13-ton medium crawler excavator built to balance agility and power. Its refined hydraulic system delivers fast, smooth movements to boost work efficiency while keeping fuel costs under control. The robust working structure handles frequent digging and loading in mixed working conditions. The operator cabin provides wide field of vision and comfortable seating, ideal for long working shifts. This versatile machine fits urban municipal works, land clearing, pipeline trenching and small road projects. It supports a full range of attachments, with simple routine maintenance and worldwide spare parts supply.

Main Technical Parameters
ParameterUnitWeichai (Std)Yuchai (Opt)Value
ENGINE PARAMETERS
Manufacturer-Weichai (Standard)Yuchai (Optional)
Model-WP4.1G100E440YCF36125-T482
Emission Standard-China IVChina IV
Rated Power (Net)kW/hp/ps/rpm74/220092/2200
Max. TorqueN·m/rpm420/1400~1600480/1300~1600
Displacementcc40884088
No. of Cylinders – Bore × Strokeea-mm4-105×1184-98×120
Batteryea-V·Ah2-24×1002-24×100
Starting MotorV/kW24/4.524/4.5
AlternatorV/A28/5528/55
PERFORMANCE PARAMETERS
Swing Speedrpm11.611.6
Swing TorquekN·m4040
Travel Speedkm/h3.6/5.63.6/5.6
Gradeabilitydeg3535
Max. Traction Forceton11.311.3
Bucket Digging Force (ISO)ton9.89.8
Arm Digging Force (ISO)ton9.49.4
WORKING EQUIPMENT
Boom Length / OPTmm46004600
Arm Length / OPTmm25002500
Bucket Capacity / OPT (SAE)m³0.560.56
OVERALL DIMENSIONS
Overall Lengthmm

7880
Overall Widthmm

2500
Upper Structure Width (Body Width)mm

2500
Overall Height (Boom)mm

2865
Overall Height (Cab)mm

2877
Track Gaugemm

1990
Track Contact Length (Wheelbase)mm

3010
Track Lengthmm

3778
Track Shoe Width (OPT)mm

500
Min. Ground Clearancemm

422
Counterweight Ground Clearancemm

903
Tail Swing Radius / Tail Radiusmm

2559/2520
TANKS
Fuel Tank CapacityL

290
Hydraulic Tank Capacity (System)L

200
Engine OilL

12
WORKING RANGE
Min. Swing Radiusmm

2576
Max. Digging Reachmm

8336
Max. Digging Depthmm

5542
Max. Digging Heightmm

8568
Max. Dumping Heightmm

6097
