Hyundai HX155L 14.28 Ton Medium Crawler Excavator

4 ton medium crawler digger
hydraulic construction excavator
Hyundai heavy equipment
4 ton medium crawler digger
hydraulic construction excavator
Hyundai heavy equipment
4 ton medium crawler digger
hydraulic construction excavator
Hyundai heavy equipment
4 ton medium crawler digger
hydraulic construction excavator
Hyundai heavy equipment

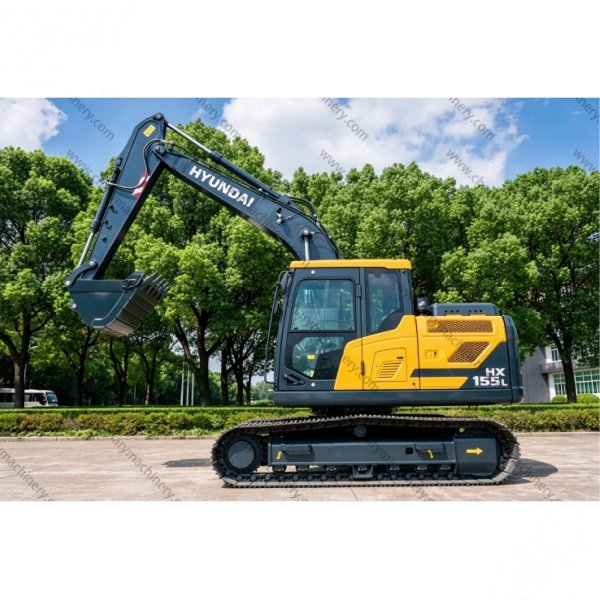

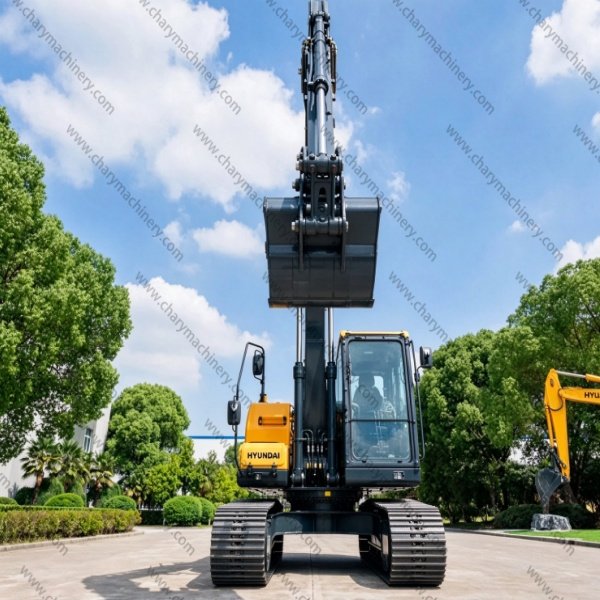

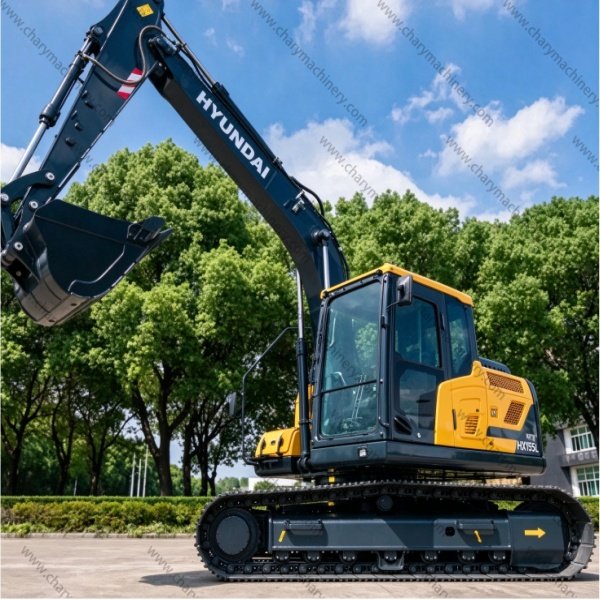

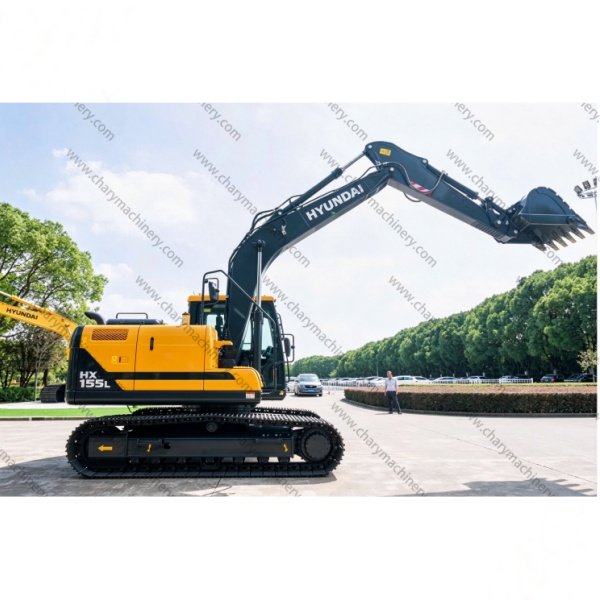

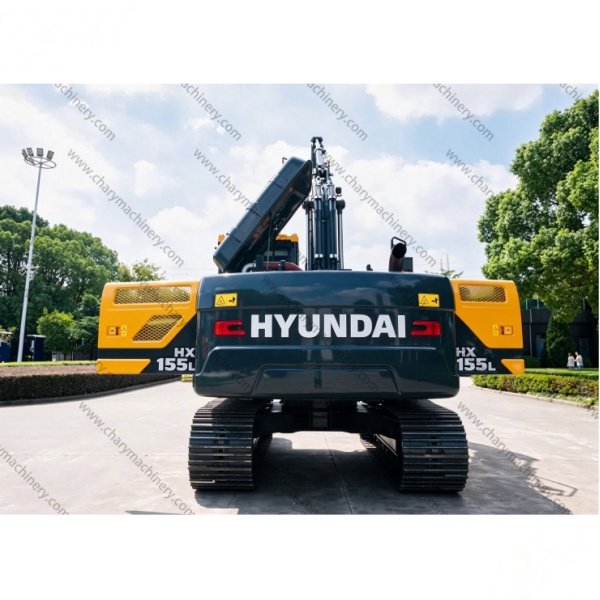

Hyundai HX155L Medium Crawler Excavator

The Hyundai HX155L is a 14.28-ton medium crawler hydraulic excavator designed for multi-purpose construction jobs. It is powered by an 89kW high-performance original engine, delivering stable torque output and excellent fuel economy. The upgraded load-sensing hydraulic system realizes precise control and powerful digging force, supporting smooth compound movements. Reinforced boom, arm and bucket with thickened steel plates and heavy-duty welding ensure outstanding durability under continuous heavy loads. The spacious, sealed operator cabin adopts shock-absorbing design, low-noise structure and wide panoramic windows to boost operator comfort during long shifts. It is suitable for earthmoving, road construction, municipal projects, quarry work and site leveling. This machine can be equipped with hydraulic breakers, grapples and other attachments. Global spare parts supply and easy maintenance help reduce your operation downtime.

Hyundai HX155L Medium Crawler Excavator

Hyundai HX155L is a 14.28-ton medium crawler excavator built for medium-duty earthwork tasks. It adopts reliable power unit and upgraded hydraulic system to deliver responsive control and stable digging power. Reinforced working attachments resist heavy impact in tough sites. The quiet and roomy cabin improves operating comfort. This machine is flexible for municipal projects, road building and quarry work, compatible with various attachments to expand working functions. Simple maintenance and worldwide spare parts support lower your operating cost.

Main Technical Parameters
ParameterUnitValue
ENGINE PARAMETERS
Manufacturer-Cummins
Model-F4.5
Emission Standard-China IV
Rated Power (Gross)kW/hp/rpm89(119)/2200
Rated Power (Net)kW/hp/rpm87(116)/2200
Max. TorqueN·m/rpm51(500)/1300
Displacementcc4500
No. of Cylinders – Bore × Strokeea-mm4-107×124
Voltageea-V·Ah2-75
Starting MotorV/kW24/4.8
AlternatorV/A28/70
PERFORMANCE PARAMETERS
Swing Speedrpm11.71
Swing TorquekN·m36.08
Travel Speedkm/h3.42/5.64
Gradeabilitydeg35
Max. Traction Forceton14.3
Bucket Digging Force (ISO) [Boost]ton10.51(11.41)
Arm Digging Force (ISO) [Boost]ton6.67(7.24)

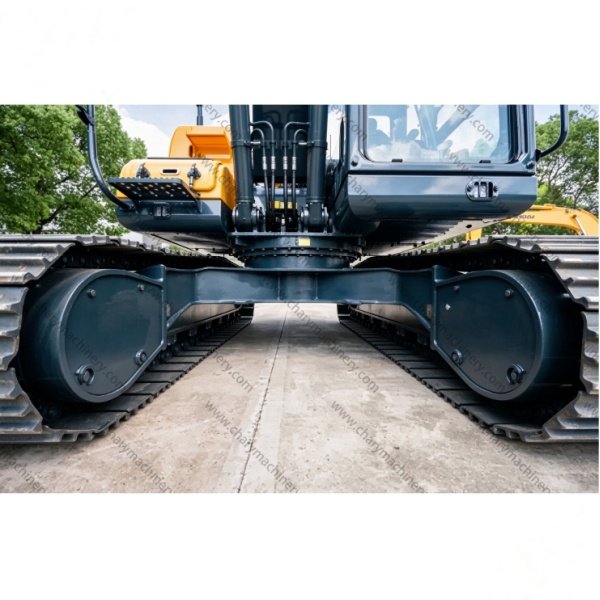

UNDERCARRIAGE
Top Rollersea (each side)1
Track Rollersea (each side)7
Track Shoe No.ea (each side)46
Ground Pressurekgf/cm²0.37
OVERALL DIMENSIONS
Boom Lengthmm4,600
Arm Lengthmm2,500
Bucket Capacity (STD)m³0.58
Overall Lengthmm7,830
Overall Height (Boom)mm2,800
Overall Height (Cab)mm2,980
Track Contact Length (Wheelbase)mm3,000
Track Lengthmm3,735
Counterweight Ground Clearancemm930
Tail Swing Radiusmm2,335
Overall Widthmm2,590
Track Widthmm600
Track Gaugemm1,990
Min. Ground Clearancemm440
OTHERS
Fuel Tank CapacityL270
Hydraulic Tank Capacity (System)L210
Engine OilL14
Engine CoolantL30
