Hyundai HX200 is a 20-ton class medium excavator powered by Cummins F4.5 engine. It balances powerful digging capacity and low fuel consumption, widely used for earthmoving, road construction and municipal engineering projects.

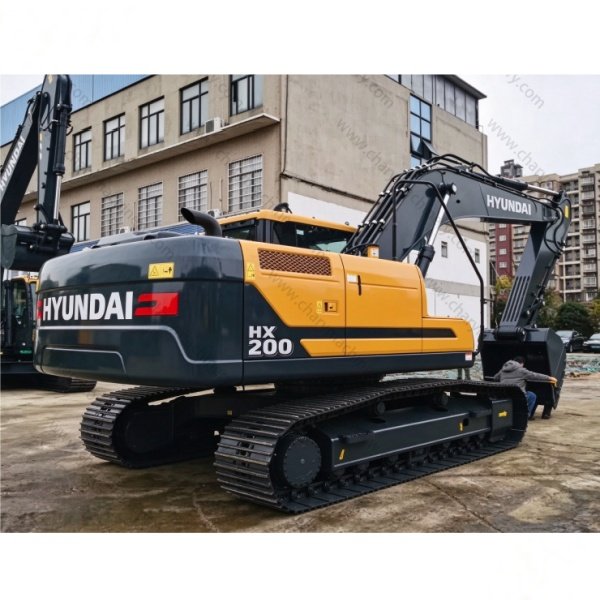

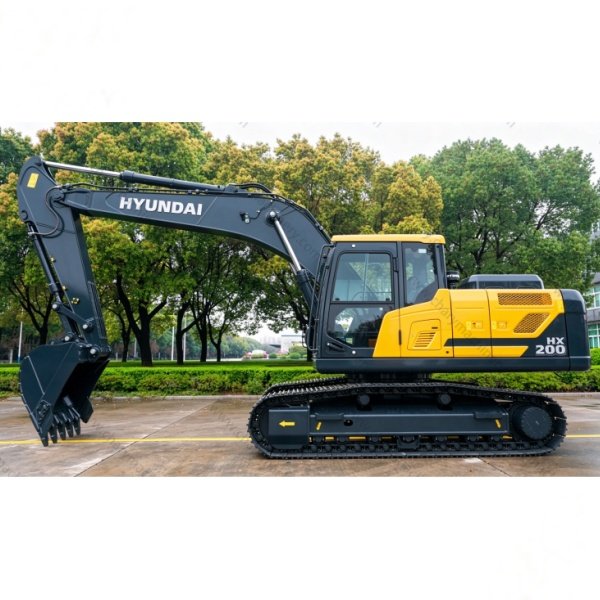

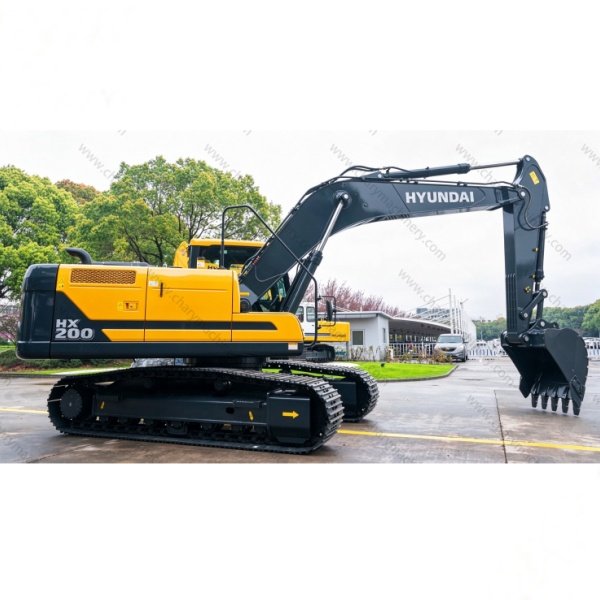

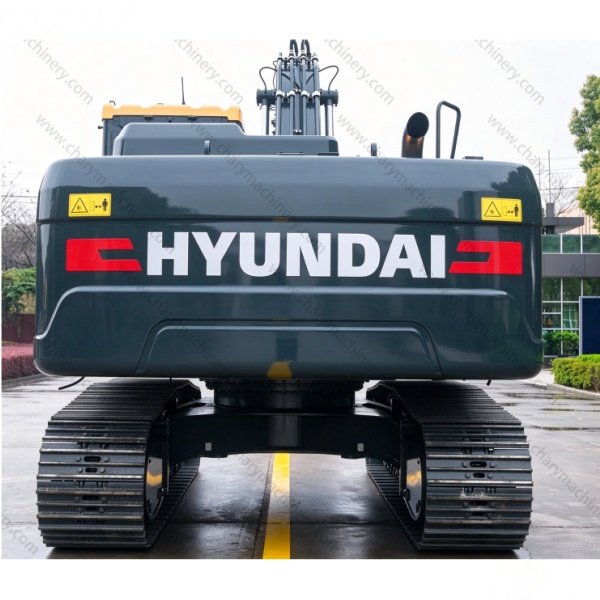

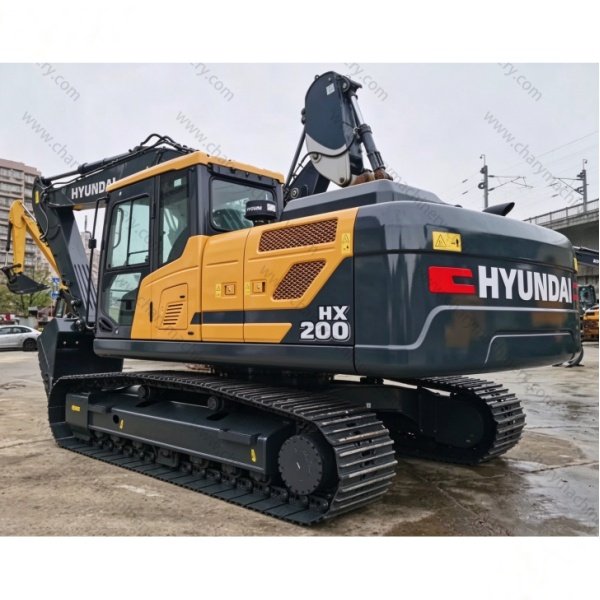

Hyundai HX200 Medium Hydraulic Excavator
Hyundai HX200 is a 20-ton class medium excavator powered by Cummins F4.5 engine. It balances powerful digging capacity and low fuel consumption, widely used for earthmoving, road construction and municipal engineering projects.
Hyundai HX200 Medium Hydraulic Excavator

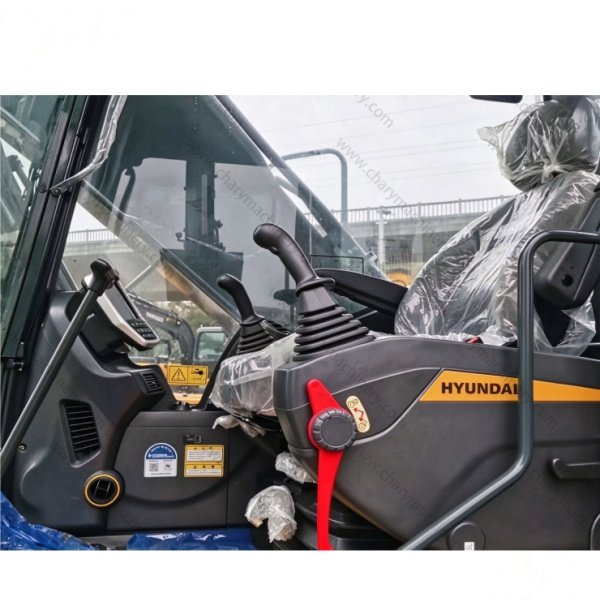

Hyundai HX200 is a popular 20-ton medium hydraulic excavator, equipped with reliable Cummins F4.5 engine delivering 125kW power. The optimized hydraulic system offers fast cycle speed and precise operation. Reinforced boom and arm improve durability for long-time continuous work. The ergonomic cab with good visibility eases operator fatigue. It is a cost-effective machine for municipal jobs, road building and general earthmoving tasks.
| Main Technical Specifications | |||
| Category (类别) | Parameter | Unit | Value |
| Engine Parameters | Manufacturer | - | Cummins |
| Model | - | F4.5 | |
| Emission Standard | - | China IV (Stage IV) | |
| Rated Power (Gross) | kW/hp/ps/rpm | 125/168/170/2200 | |
| Rated Power (Net) | kW/hp/ps/rpm | 123/165/167/2200 | |
| Max. Torque | N·m/rpm | 670/1300 | |
| Displacement | cc | 4,500 | |
| No. of Cylinders - Bore x Stroke | EA-mm | 4-107×124 | |
| Battery | EA-V×AH | 2-12V75 | |
| Starter Motor | V/kW | 24/4.8 | |
| Alternator | V/A | 28/70 | |
| Performance Parameters | Swing Speed | rpm | 10.54 |
| Swing Torque | kN·m | 65.3 | |
| Travel Speed | km/hr | 5.1/3.3 | |
| Gradeability | deg | 35 | |
| Max. Traction Force | ton | 22.6 | |
| Bucket Digging Force (ISO) | ton | 15.4 | |
| Arm Digging Force (ISO) | ton | 11.6 | |
| Dimensions | Boom Length | mm | 5,680 |
| Arm Length | mm | 2,700 | |
| Bucket Capacity (STD) | m³ | 0.9 | |
| Overall Length | mm | 9,525 | |
| Overall Width | mm | 2,800 | |
| Upper Structure Width (Body Width) | mm | 2,750 | |
| Overall Height (Boom) | mm | 3,010 | |
| Overall Height (Cab) | mm | 3,030 | |
| Track Gauge | mm | 2,200 | |
| Track Ground Contact Length (Wheelbase/Tread) | mm | 3,360 | |
| Track Length | mm | 4,165 | |
| Track Shoe Width (OPT) | mm | 600 | |
| Min. Ground Clearance | mm | 470 | |
| Counterweight Ground Clearance | mm | 1,025 | |
| Tail Swing Radius | mm | 2,890 | |
| Others | Fuel Tank Capacity | L | 395 |
| Hydraulic Oil Tank Capacity (System) | L | 160(280) | |
| Engine Oil | L | 13 | |
