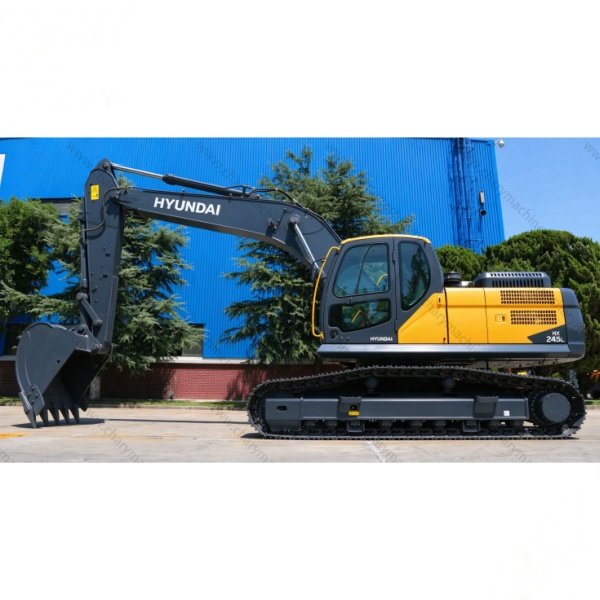

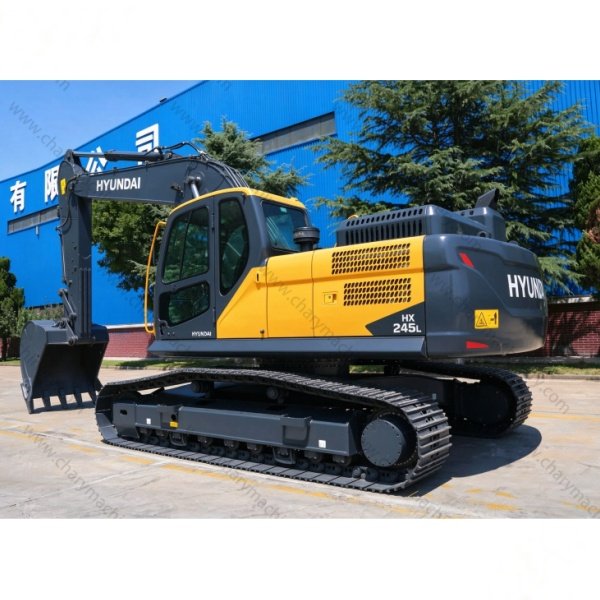

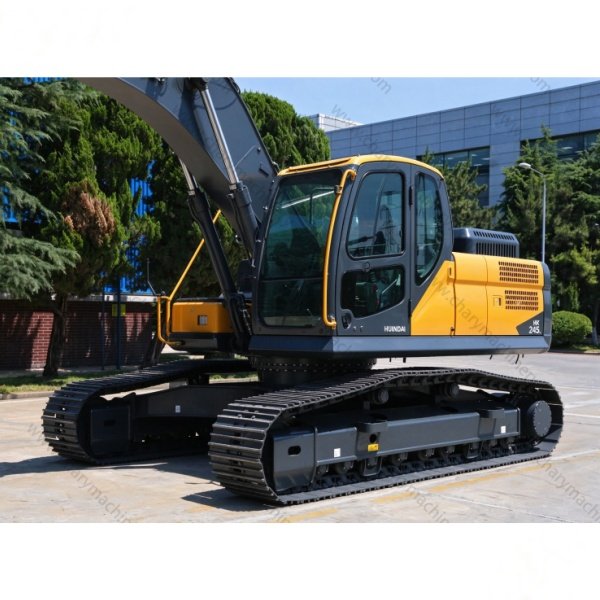

Hyundai HX245L Medium Large Hydraulic Excavator
Hyundai HX245L is a new-generation 24.5-ton medium-large excavator. Equipped with high-efficiency Cummins engine and upgraded hydraulic system, it delivers strong digging power, fast cycle speed and lower fuel consumption. Perfect for road construction, earthwork, quarry and municipal large-scale projects.
Hyundai HX245L Medium Large Hydraulic Excavator
The Hyundai HX245L is a upgraded 24.5-ton medium-large excavator designed for medium and heavy construction scenarios. Adopting optimized power matching and intelligent hydraulic control system, it realizes stronger excavation force, faster working cycle and lower fuel consumption compared with traditional models.
The reinforced boom, arm and heavy-duty undercarriage greatly improve durability and adaptability for quarry, stone loading, road renovation and large-area earthwork. The upgraded intelligent cab provides clearer vision and shock absorption, ensuring stable and comfortable long-hour operation.
With reliable quality, low maintenance cost and high comprehensive efficiency, Hyundai HX245L has become the most cost-effective mainstream construction equipment for global contractors and engineering teams.
| Main Technical Parameters (EN) | ||
| Parameter | Unit | Value |
| ENGINE PARAMETERS | ||
| Manufacturer | - | Hyundai |
| Model | - | DL06 |
| Emission Standard | - | China IV |
| Rated Power (Gross) | kW/rpm | 141.4/2,000 |
| Displacement | cc | 5,890 |
| No. of Cylinders – Bore × Stroke | ea-mm | 100×125 |
| Battery | ea-V×Ah | 24×100 |
| PERFORMANCE PARAMETERS | ||
| Swing Speed | rpm | 11.1 |
| Travel Speed | km/h | 6.2/3.3 |
| Max. Traction Force | ton | 22.5 |
| Bucket Digging Force (ISO [Boost]) | ton | 15.1 |
| Arm Digging Force (ISO [Boost]) | ton | 11.1 |
| UNDERCARRIAGE | ||
| Top Rollers | ea (each side) | 2 |
| Track Rollers | ea (each side) | 9 |
| Track Shoe No. | ea (each side) | 51 |
| Ground Pressure | kgf/cm² | 0.58 |
| OVERALL DIMENSIONS | ||
| Boom Length | mm | 5,700 |
| Arm Length | mm | 2,900 |
| Bucket Capacity | m³ | 1.4 |
| Overall Length | mm | 9,571 |
| Overall Width | mm | 3,200 |
| Upper Structure Width (Body Width) | mm | 2,709 |
| Overall Height (Boom) | mm | 3,005 |
| Overall Height (Cab) | mm | 2,996 |
| Track Gauge | mm | 2,600 |
| Track Length | mm | 4,630 |
| Track Shoe Width | mm | 600 |
| Min. Ground Clearance | mm | 427 |
| Counterweight Ground Clearance | mm | 1,076 |
| Tail Swing Radius | mm | 2,855 |
| OTHERS | ||
| Fuel Tank Capacity | L | 400 |
| Hydraulic Tank Capacity (System) | L | 196 |
| Engine Oil | L | 29 |
| Engine Coolant | L | 30 |
| DEF Tank (Urea) | L | 45 |
