Hyundai HX350L 35 Ton Heavy Duty Crawler Hydraulic Excavator

Hyundai HX350L 35-ton heavy excavator
35 ton construction digger
quarry and earthmoving excavator
HX350L.6
Hyundai HX350L Heavy Duty Crawler Hydraulic Excavator 35 Ton
Hyundai HX350L Heavy Duty Crawler Hydraulic Excavator
Hyundai HX350L 35-ton heavy excavator
35 ton construction digger
quarry and earthmoving excavator
HX350L.6
Hyundai HX350L Heavy Duty Crawler Hydraulic Excavator 35 Ton
Hyundai HX350L Heavy Duty Crawler Hydraulic Excavator

Hyundai HX350L Heavy Duty Crawler Hydraulic Excavator 35 Ton

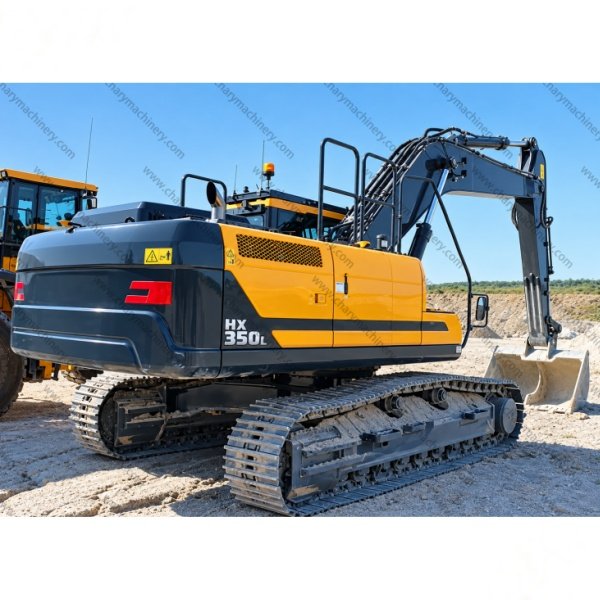

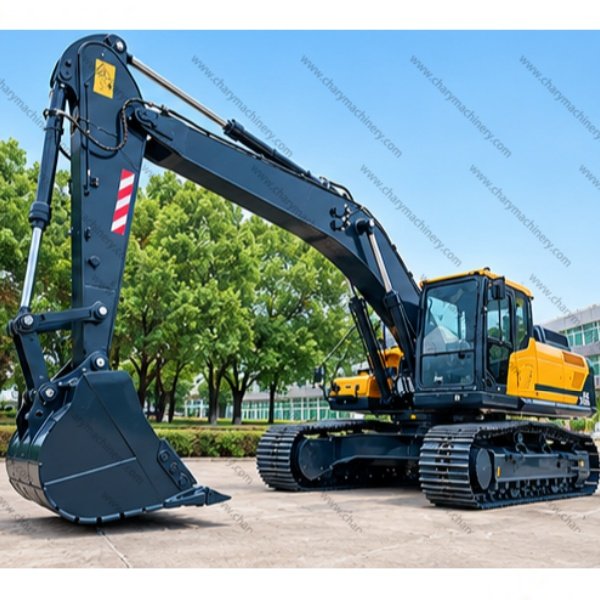

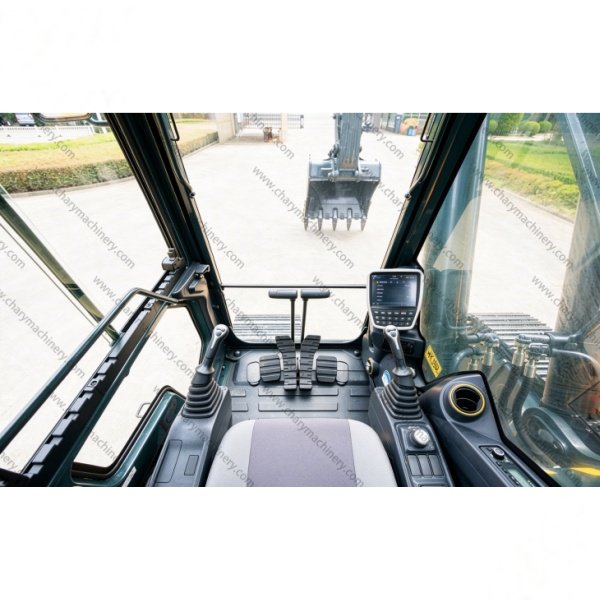

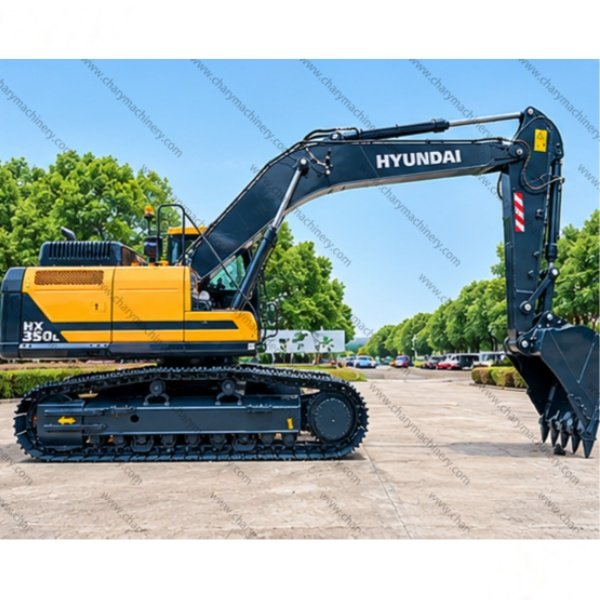

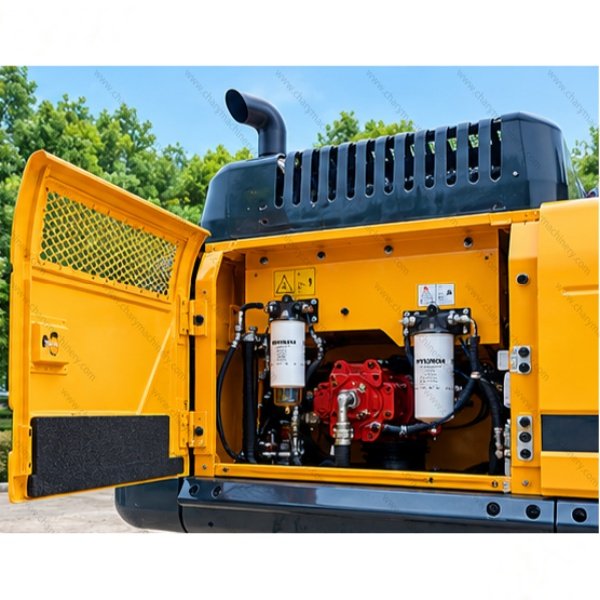

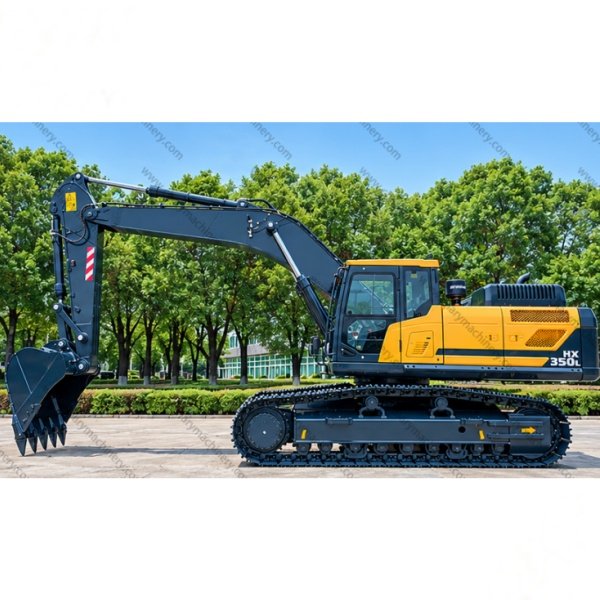

The Hyundai HX350L is a 35-ton heavy crawler excavator designed for medium and large-scale heavy construction. Powered by a high-torque Cummins engine, it provides stable power output and good fuel economy under continuous heavy loads. The optimized load-sensing hydraulic system delivers powerful breakout force and fast working cycles to boost daily productivity. Reinforced boom, arm and bucket adopt thickened high-strength steel to resist impact and abrasion in rocky working sites. The heavy-duty undercarriage ensures stable traction on rough terrain. The sealed shock-dampened cabin offers low noise and panoramic visibility to reduce operator fatigue during long shifts. It is widely applied in quarrying, large earthmoving, road construction and rock excavation. Compatible with rock buckets and heavy hydraulic breakers. Centralized maintenance points and global spare parts supply effectively cut downtime.

Hyundai HX350L Heavy Duty Crawler Hydraulic Excavator

Built to tackle heavy construction workloads, the Hyundai HX350L is a 35-ton class crawler excavator trusted for quarry and mass earthwork. It adopts a reliable Cummins engine with abundant torque reserve, maintaining stable output during long-hour continuous digging and loading. The refined hydraulic system realizes precise power distribution, shortening operation cycles and improving work efficiency while controlling fuel consumption. The boom, arm and bucket are reinforced at stress points with high-strength steel, capable of enduring rock impact and abrasive working conditions. The heavy-duty chassis and track assembly deliver outstanding stability on rugged sites. The ergonomic sealed cabin suppresses vibration and noise, offering a broad field of view for operators. This machine fits quarry operations, large land development, highway construction and rock trenching. It can be equipped with heavy rock buckets and hydraulic breakers. The machine is designed with easy-to-reach service points, and global spare parts support helps reduce operational downtime.

Main Technical Specifications
EngineManufacturer-CumminsDimensionsBoom Lengthmm6,450
Model-L9Arm Lengthmm2,850
Emission Standard-China IVBucket Capacity (Std.)m³1.83(HD)
Rated Power (Gross)kW/rpm254/1900Bucket Capacity (Opt.)m³1.60(ROCK)
Rated Power (Net)kW/rpm251/1900Overall Lengthmm11,230
Max. TorqueN·m/rpm1520/1100~1400Overall Widthmm3,280
Displacementcc8,900Upper Body Widthmm3,090
No. of Cylinders-Bore×StrokeEA-mm6-114×145Overall Height (Boom)mm3,500
BatteryEA-V×AH2-12X200Overall Height (Cab)mm3,120
Starting MotorV/kW24/7.8Gaugemm2,680
AlternatorV/A28/70Track on Ground Lengthmm4,030
PerformanceSwing Speedrpm10.66Track Lengthmm4,940
Swing TorquekN·m108.11Track Shoe Width (OPT)mm600
Travel Speedkm/h6.2/3.5Min. Ground Clearancemm490
Gradeabilitydeg35Counterweight Ground Clearancemm1,180
Max. Drawbar Pullton29.7Tail Swing Radiusmm3,570/3,500
Bucket Digging Force (ISO) [Boost]ton22.11[24.00]OthersFuel Tank CapacityL585
Arm Digging Force (ISO) [Boost]ton16.11[17.49]Hydraulic Oil Tank Capacity (System)L210(375)
Carrier RollerEA(Each Side)2Engine OilL34
Track RollerEA(Each Side)9Engine CoolantL29
Track Shoe NumberEA(Each Side)48DEF TankL70
Ground Pressurekgf/cm²0.66
