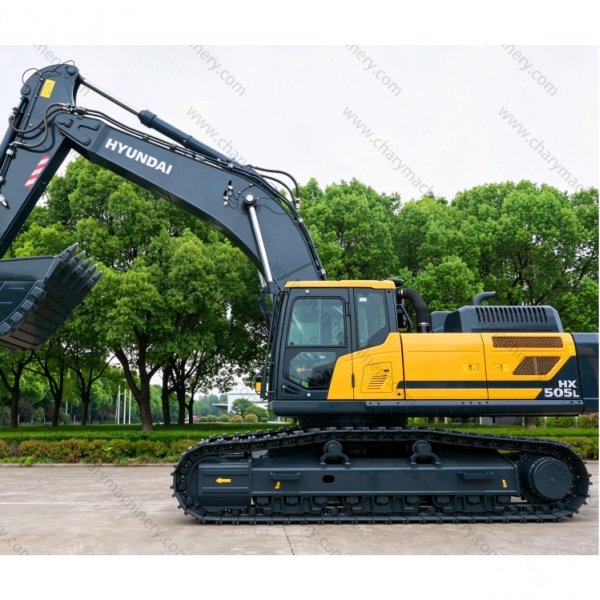

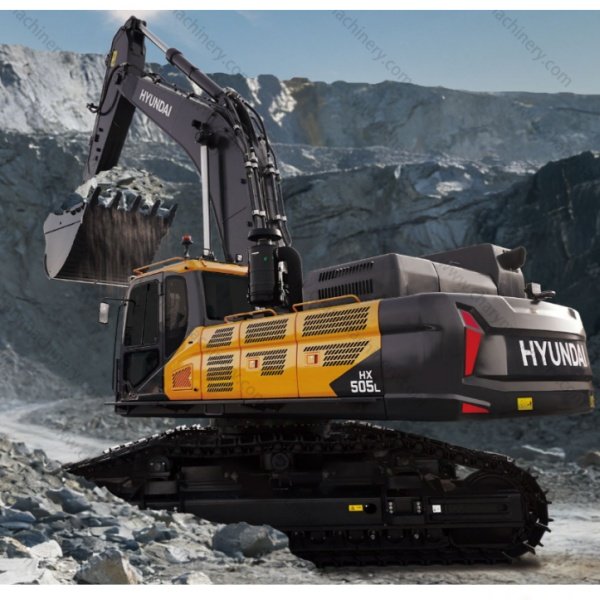

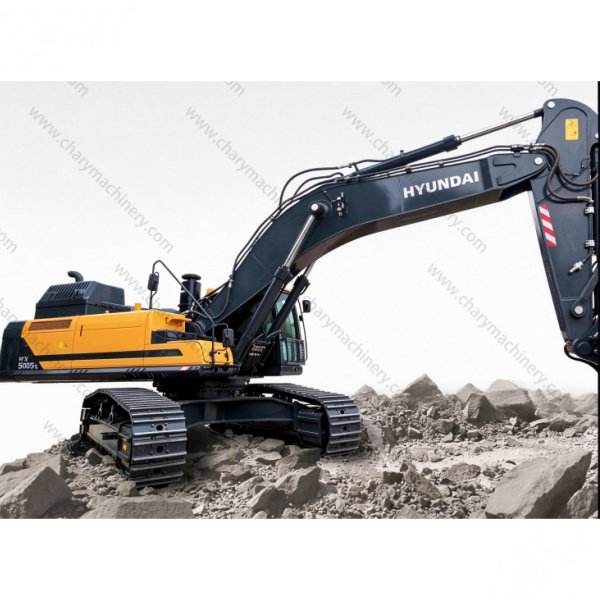

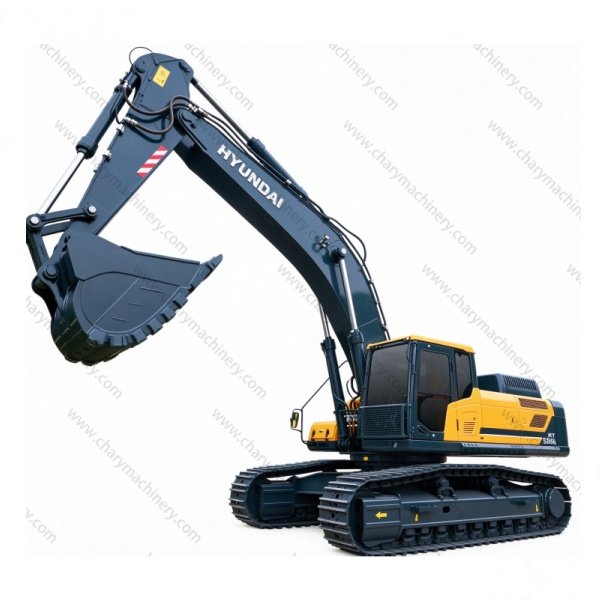

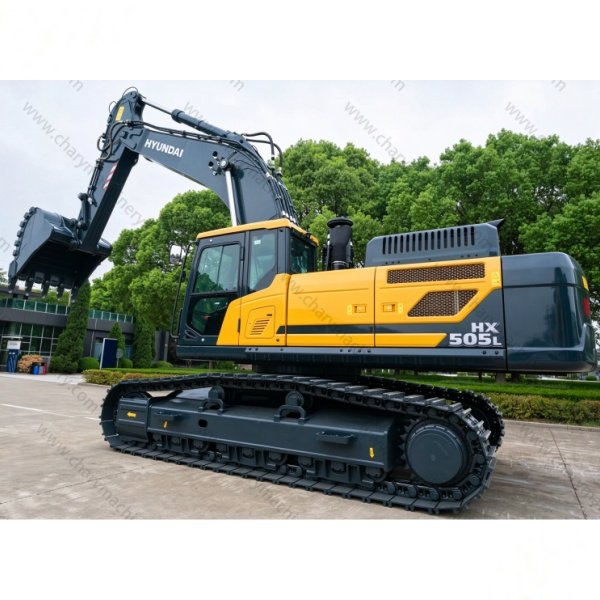

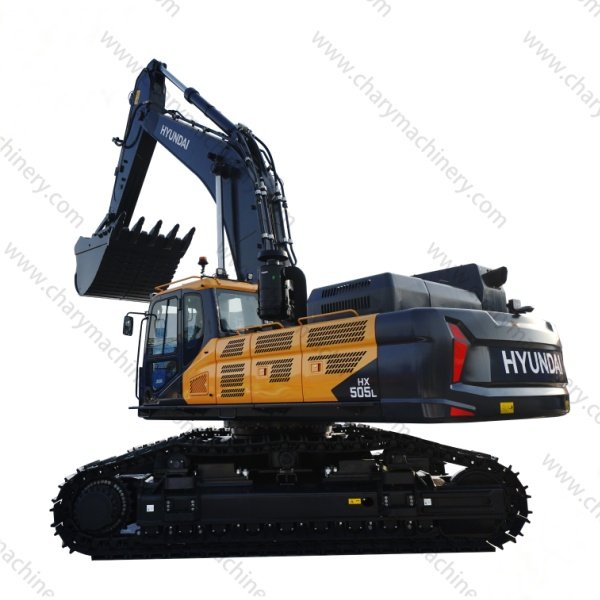

Hyundai HX505VL Large Crawler Hydraulic Excavator
Hyundai HX505VL is a heavy-duty 50-ton large crawler excavator. Powered by high-performance Cummins engine and advanced hydraulic system, it delivers massive digging force and excellent stability. Suitable for quarry mining, large earthmoving, mine site and big infrastructure projects.
Hyundai HX505VL Large Crawler Hydraulic Excavator
The Hyundai HX505VL is a robust 50-ton class large excavator engineered for the toughest heavy-duty working conditions. It adopts high-power Cummins engine paired with upgraded intelligent hydraulic system, realizing strong breakout force, smooth operation and optimized fuel efficiency.
Reinforced boom, arm and heavy-duty track frame are specially strengthened for mining and stone loading scenarios, resisting impact and abrasion. The spacious operator cab features shock absorption, panoramic view and intelligent control panel, greatly improving comfort during long-time continuous operation.
Easy access to maintenance points reduces downtime. Reliable structure and outstanding load capacity make Hyundai HX505VL the ideal heavy machine for mine sites, quarry operations, land reclamation and large infrastructure projects worldwide.
| Main Technical Parameters (HX505VL / HX560VL) | |||
| Parameter | Unit | HX505VL | HX560VL |
| ENGINE | |||
| Model | - | Scania DC13 | Scania DC13 |
| Cylinders | - | 6 | 6 |
| Rated Power | kW/rpm | 294/1,800 | 294/1,800 |
| Max. Torque | kg·m/rpm | 189.8/1,500 | 189.8/1,500 |
| Bore × Stroke | mm | 130×160 | 130×160 |
| Displacement | L | 12.7 | 12.7 |
| HYDRAULIC SYSTEM | |||
| Type | - | FEH (Full Electric-Hydraulic Control) | FEH (Full Electric-Hydraulic Control) |
| Max. Flow | L/min | 2×390 | 2×390 |
| Relief Valve Setting – Working Equipment Circuit | kg/cm² (MPa) | 330 (32.3) | 330 (32.3) |
| Relief Valve Setting – Travel Circuit | kg/cm² (MPa) | 330 (32.3) | 330 (32.3) |
| Relief Valve Setting – Swing Circuit | kg/cm² (MPa) | 300 (29.4) | 300 (29.4) |
| Relief Valve Setting – Boost Circuit | kg/cm² (MPa) | 350 (34.3) | 350 (34.3) |
| SWING SYSTEM | |||
| Swing Speed | rpm | 9.2 | 9.2 |
| Max. Swing Torque | kg·m | 20,130 | 20,130 |
| TRAVEL | |||
| Travel Speed (High/Low) | km/h | 5.3/3.1 | 5.3/3.1 |
| Max. Digging Force (ISO) – Bucket | ton | 25.7 (252 kN) | 24.4 (239 kN) |
| Max. Digging Force (ISO) – Arm | ton | 23.5 (230 kN) | 24.9 (244 kN) |
| CYLINDERS | |||
| Boom | mm | 2-170×115×1,650 | 2-170×115×1,650 |
| Arm | mm | 1-190×130×1,980 | 1-190×130×1,980 |
| Bucket | mm | 1-170×115×1,341 | 1-170×115×1,341 |
| TANK CAPACITIES | |||
| Fuel Tank | L | 626 | 626 |
| Hydraulic Tank | L | 390 | 390 |
| COOLANT / LUBRICANT CAPACITIES (REPLACEMENT) | |||
| Radiator | L | 52.8 | 52.8 |
| Engine | L | 45 | 45 |
| Travel Reduction Gear Oil | L | 2×9 | 2×9 |
| Swing Reduction Gear | L | 2×5 | 2×5 |
| UNDERCARRIAGE | |||
| Center Frame | - | X-Type | X-Type |
| Top Rollers | ea (each side) | 3 | 3 |
| Track Rollers | ea (each side) | 9 | 9 |
| Track Shoe No. | ea (each side) | 53 | 53 |
| Track Shoe Width | mm | 600 | 600 |
| OPERATING WEIGHT | |||
| Operating Weight | kg | 50,500 | 53,200 |
| Ground Pressure | kg/cm² | 0.88 | 0.92 |
| Bucket Capacity | m³ | 3.2 | 3.6 |
| Counterweight | ton | 9.2 | 11.1 |
