Hyundai HX60G 6 Ton Compact Crawler Hydraulic Excavator

Hyundai HX60G Excavator
Hyundai HX60G Excavator
6 ton mini digger
compact crawler excavator
Hyundai small construction machinery
Hyundai small construction machinery
Hyundai HX60G Excavator
Hyundai HX60G Excavator
6 ton mini digger
compact crawler excavator
Hyundai small construction machinery
Hyundai small construction machinery

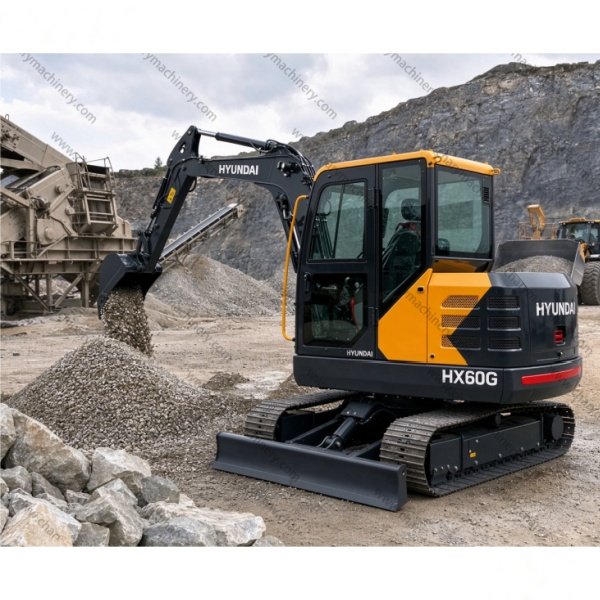

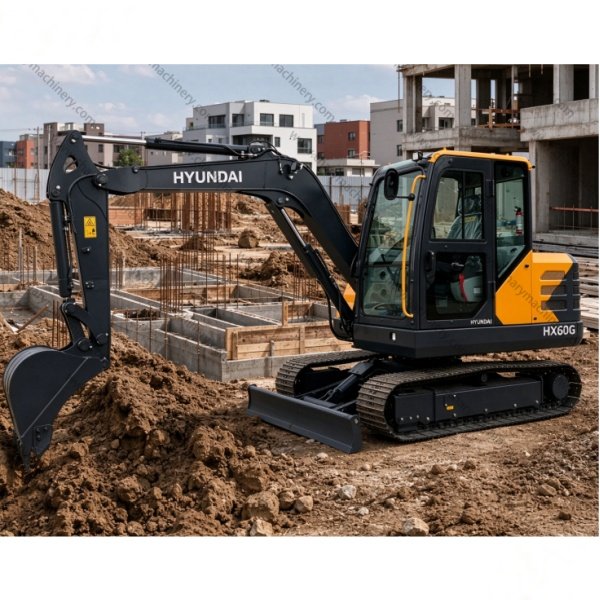

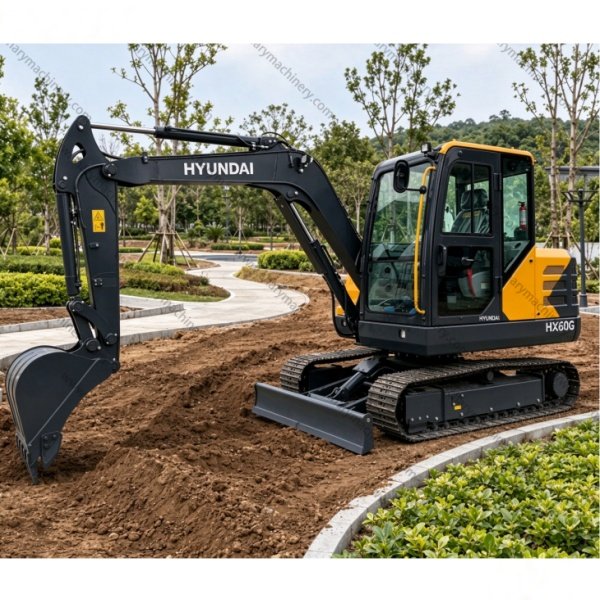

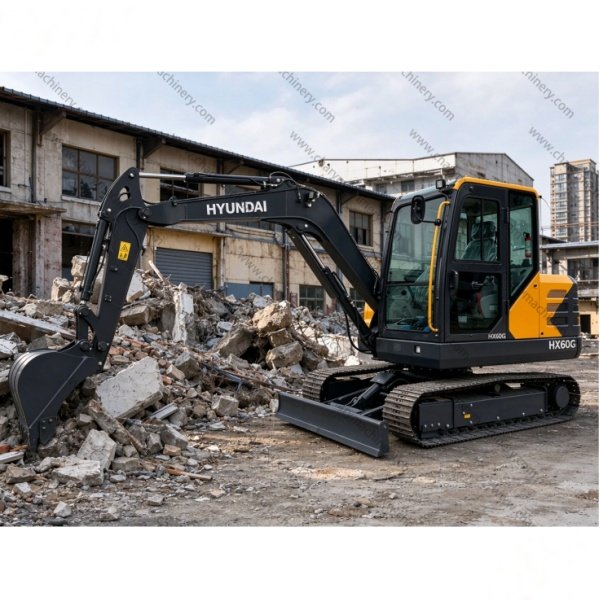

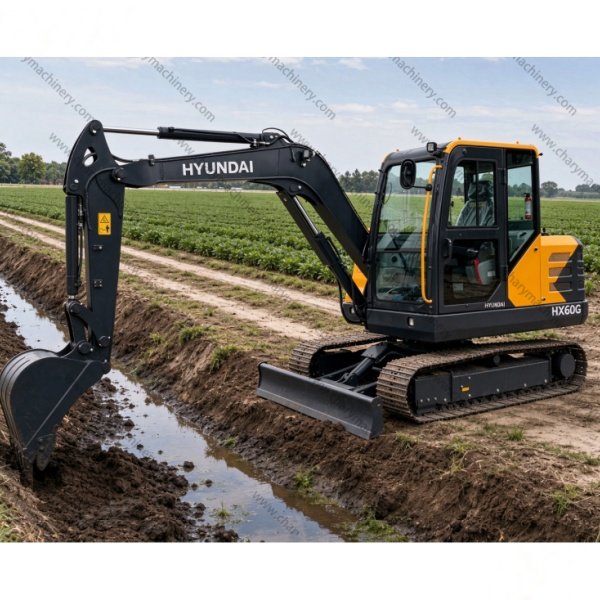

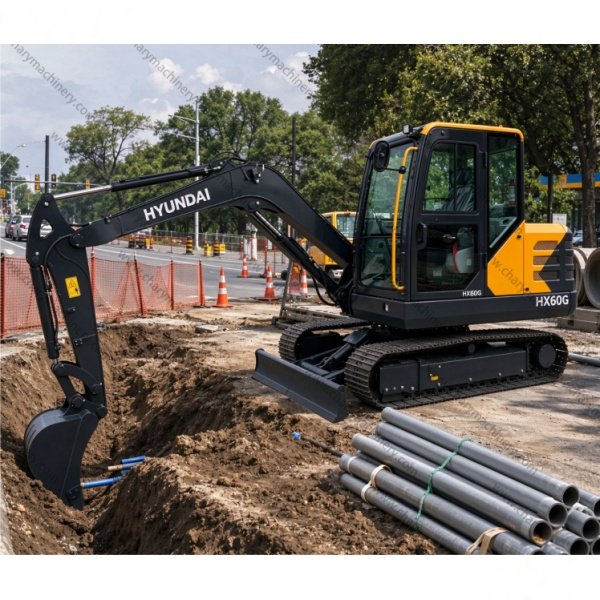

Hyundai HX60G Mini Crawler Excavator

The Hyundai HX60G is a 5.85-ton compact crawler excavator engineered for tight and confined job sites. Powered by a high-efficiency 36.8kW original engine, this machine delivers stable power output while keeping fuel costs low. It adopts advanced optimized hydraulic system to achieve smooth, precise movement and strong digging force. Reinforced boom, arm and bucket structure improve wear resistance and extend service life. The enclosed operator cabin comes with shock-absorbing seats and clear control layout to reduce operator fatigue during long working hours. Compact body design allows easy access for landscaping, municipal repair, trenching, farm renovation and indoor demolition. Global spare parts supply and reliable after-sales support make Hyundai HX60G a cost-effective choice for small and medium engineering projects.

Hyundai HX60G Mini Crawler Excavator

The Hyundai HX60G is a 5.85-ton compact crawler excavator built for tight construction sites. It is fitted with a high-torque original engine, delivering reliable power while cutting fuel consumption. Adopting the LS load-sensing hydraulic system, it provides smooth, precise control and outstanding compound operation performance. The reinforced boom, arm and bucket structure greatly improves wear resistance and overall durability. The enclosed ergonomic cabin features shock-absorbing seat and wide sight view, reducing operator fatigue during long working hours. It comes with three-stage fuel filtration system and optimized cooling package to adapt to dusty and high-temperature working environments. The compact body design enables easy access for urban renovation, trenching, landscaping and farm projects. This Hyundai mini excavator supports quick coupler and hydraulic breaker attachments. Global spare parts supply and simple maintenance help you lower operation costs.

Hyundai HX60G Mini Crawler Excavator
Parameter CategoryParameter NameUnitWeichaiYanmar (Optional)Yunnei (Optional)
EngineManufacturer-WeichaiYanmar (Optional)Yunnei (Optional)
Model-WP3.2G50E4304TNV94LYN30NBN4
Emission Standard-China IVChina IVChina IV
Rated Power (Gross)kW/rpm36.8/2,20035.9/200035.5/2100
Rated Power (Net)kW/rpm35.4/2,200/35/2100
Max TorqueN.M/rpm210/1,400-1,600200.8/1400195/1300-1500
Displacementcc3,1683,0542977
No. of Cylinders - Bore x StrokeEA-mm4-98x1054-94x1104-95X105
BatteryEA-VxAH100

Starter MotorV/kW12/3.812/3.012/3.5
AlternatorV/A14V/70A12V/55A14V/55A
PerformanceSwing Speedrpm10.5

Swing TorquekN.m16

Travel Speedkm/hr2.5/4.2

Gradeabilitydeg35.0

Max Traction ForcekN51

Bucket Digging Force (ISO)kN40

Arm Digging Force (ISO)kN28

Working RangeMax Digging Reachmm5,946

Max Digging Reach (Ground)mm5,811

Max Vertical Digging Depthmm2,245

Max Digging Heightmm5,980

Max Dumping (Loading) Heightmm4,185

Min Swing Radiusmm2,030

DimensionsBoom Lengthmm3,000

Arm Lengthmm1,550

Bucket Capacity (SAE)m30.25

Overall Lengthmm5,670

Overall Height (Boom)mm1,920 (Transport)

Overall Height (Cab)mm2,630

Track Ground Contact Length (Tread)mm2,030

Track Lengthmm2,550

Counterweight Ground Clearancemm700

Tail Swing Radiusmm1,700

Overall Widthmm2,000

Track Shoe Widthmm400

Track Gaugemm1,600

Min Ground Clearancemm332

UndercarriageCarrier RollerEA(Each Side)1

Track RollerEA(Each Side)5

No. of Track ShoesEA(Each Side)40

OthersFuel Tank CapacityL130

Hydraulic Tank Capacity (System)L80

Engine OilL9

Engine CoolantL16
