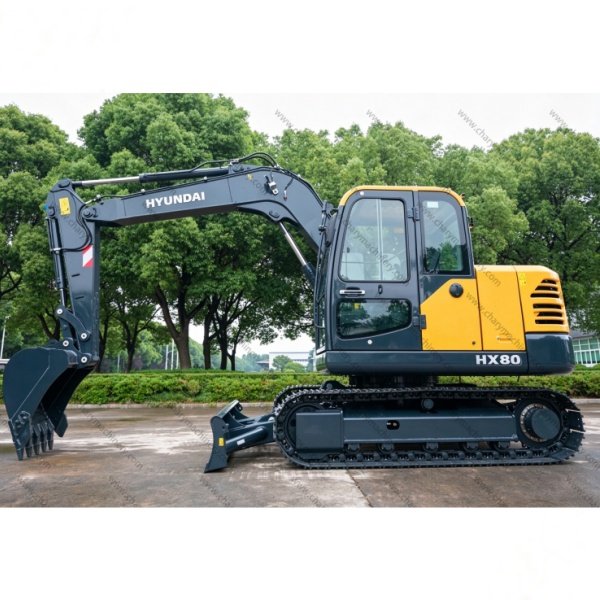

Hyundai HX80 Small Excavator
The Hyundai HX80 is an 8-ton compact hydraulic excavator. It features stable power output, flexible operation and low fuel consumption. Widely used in landscaping, municipal engineering and farm work. Original Hyundai construction machinery with durable spare parts support.
Hyundai HX80 Small Excavator
Hyundai HX80 Small ExcavatorHyundai HX80 is a compact 8-ton hydraulic excavator built for restricted work sites. It delivers strong digging power together with great maneuverability. This Hyundai machine saves fuel and requires simple maintenance. Perfect for urban renovation, trenching and garden projects. Reliable after-sales and spare parts available worldwide.
| MAIN TECHNICAL SPECIFICATIONS | |||||||
| CATEGORY | PARAMETER | UNIT | VALUE | CATEGORY | PARAMETER | UNIT | VALUE |
| ENGINE | Manufacturer | — | Yanmar | DIMENSIONS | Boom Length | mm | 3,700 |
| Model | — | 4TNV94L | Arm Length | mm | 1,670 | ||
| Emission Standard | — | China IV | Bucket Capacity (STD) | m³ | 0.32 | ||
| Rated Power (Gross) | kW/hp/ps/rpm | 36.2/2200 | Overall Length | mm | 6,090 | ||
| Rated Power (Net) | kW/hp/ps/rpm | 34.2/2200 | Overall Height (Boom) | mm | 2,710 | ||
| Max. Torque | N·m/rpm | 200.8/1400 | Overall Height (Cab) | mm | 2,510 | ||
| Displacement | cc | 3,054 | Track Ground Contact Length (Wheelbase) | mm | 2,130 | ||
| No. of Cylinders - Bore × Stroke | EA-mm | 4-94×110 | Track Length | mm | 2,730 | ||
| Battery | EA-V×AH | 1-93 | Counterweight Clearance | mm | 745 | ||
| Starter Motor | V/kW | 12/3.0 | Rear Swing Radius | mm | 1,725 | ||
| Alternator | V/A | 12/100 | Overall Width | mm | 2,260 | ||
| PERFORMANCE | Swing Speed | rpm | 10.5 | Track Shoe Width | mm | 450 | |
| Swing Torque | kN·m | 17.94 | Track Gauge | mm | 1,750 | ||
| Travel Speed | km/hr | 2.43/3.95 | Min. Ground Clearance | mm | 290 | ||
| Gradeability | deg | 35 | OTHERS | Fuel Tank Capacity | ℓ | 142 | |
| Max. Traction Force | ton | 6.75 | Hydraulic Tank Capacity (System) | ℓ | 128 | ||
| Bucket Digging Force (ISO) | ton | 5.04 | Engine Oil | ℓ | 9.2 | ||
| Arm Digging Force (ISO) | ton | 3.52 | Engine Coolant | ℓ | 11.7 | ||
| CHASSIS | Top Rollers | EA (Each Side) | 1 | ||||
| Track Rollers | EA (Each Side) | 5 | |||||
| Track Shoe Count | EA (Each Side) | 38 | |||||
| Ground Pressure | kgf/cm² | 0.33/0.35 | |||||
