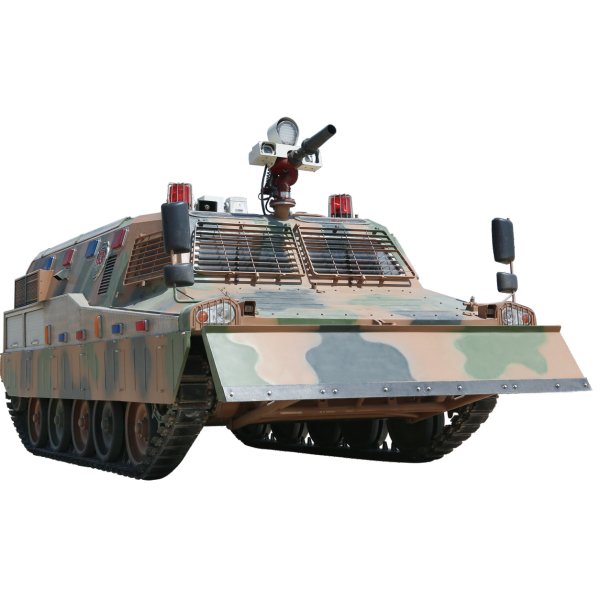

Light Armored Tracked Multi-Purpose Fire Rescue Vehicle | All-Terrain Wildfire Disaster Suppression Crawler
Compact light armored tracked fire vehicle built on robust crawler chassis for mountain, wildland and collapsed disaster zone fire rescue.
Equipped with standard 50L/s water monitor, 65L/s fire pump and front bulldozer blade for fire suppression and debris clearance.
Powerful B/FL413F turbo air-cooled diesel engine delivers 235kW power with max road speed over 60km/h.
Large dual 1300L water and foam tanks support long-duration fire attack with 70m water jet and 65m foam jet range.
Optional auxiliary equipment including searchlight, communication radio, Beidou/GPS navigation and hydraulic breaking tools for full-scene rescue.
Products
Light Armored Tracked Multi-Purpose Fire Rescue Vehicle | All-Terrain Wildfire Disaster Suppression Crawler
Compact light armored tracked fire vehicle built on robust crawler chassis for mountain, wildland and collapsed disaster zone fire rescue.
Equipped with standard 50L/s water monitor, 65L/s fire pump and front bulldozer blade for fire suppression and debris clearance.
Powerful B/FL413F turbo air-cooled diesel engine delivers 235kW power with max road speed over 60km/h.
Large dual 1300L water and foam tanks support long-duration fire attack with 70m water jet and 65m foam jet range.
Optional auxiliary equipment including searchlight, communication radio, Beidou/GPS navigation and hydraulic breaking tools for full-scene rescue.
This light tracked multi-functional fire rescue vehicle adopts armored tracked crawler chassis, integrating fire suppression and disaster clearance functions. It is standardly fitted with long-range water & foam fire monitor, high-flow fire pump and front bulldozer blade to clear road obstacles and execute remote fire extinguishing.
Supported by high-power air-cooled turbo diesel engine, it boasts outstanding all-terrain mobility to access mountain wildfire, mudslide and collapsed building sites. Optional searchlight, communication, navigation and hydraulic rescue tools can be configured to meet diversified emergency rescue operation demands.
Main Specification
|
Engine Model | B/FL413F four-stroke exhaust turbocharged air-cooled diesel engine |
Engine Rated Power | 235kW |
Overall Dimension(L×W×H) | 6600 × 3080 × 2840 mm |
| Transmission | 6-speed manual transmission |
| Curb Weight | 14.5T |
| Vehicle Configuration (●=Standard, ○=Optional) |
| Water Monitor (50L/s flow rate) | ● Standard |
| Fire Pump (65L/s flow rate) | ● Standard |
| Bulldozer Blade | ● Standard |
| Fire Scene Searchlight | ○ Optional |
| Air Conditioning System | ○ Optional |
| Communication System (Radio & Digital Intercom) | ○ Optional |
| Vehicle Navigation (GPS / Beidou) | ○ Optional |
| Traction Winch | ○ Optional |
| Hydraulic Breaking Tools | ○ Optional |
| Near-Scene Surveillance System | ○ Optional |
| Main Performance Parameters |
| Curb Weight | 14.5T |
| Full Load Weight | ≤17T |
| Average Road Speed | 45–50km/h |
| Max Road Speed | ≥60km/h |
| Water Tank Volume | 1300L |
| Foam Tank Volume | 1300L |
| Water Jet Range | 70m |
| Foam Jet Range | 65m |
