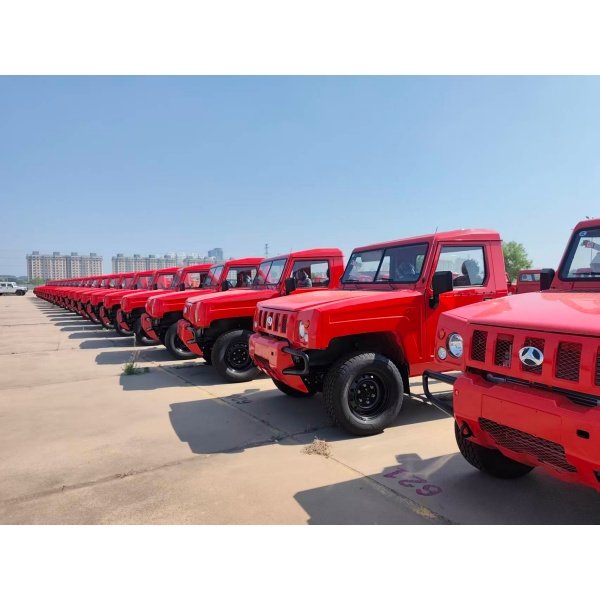

Ruisheng Military 4×4 Diesel Class II Bare Chassis

2
3
2
3

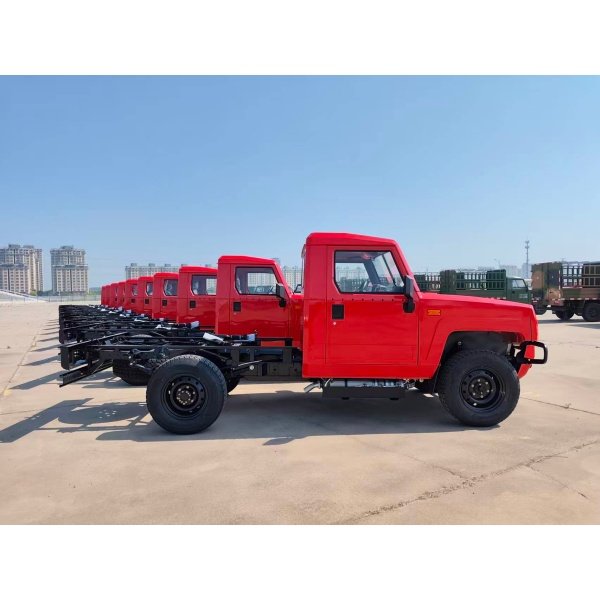

Military 4WD Diesel Class II Off-road Bare Chassis

Ruisheng BAW2043HMS53D is a professional military-grade part-time 4WD class II bare chassis built with non-load-bearing body structure. Equipped with 2.36L high-torque diesel engine, it supports National III and National VI b two emission standards to match different national registration policies. With 225mm high ground clearance, leaf spring dependent suspension and mechanical two-speed transfer case, the chassis owns excellent cross-country passing performance, widely used for refitting emergency rescue vehicles, field engineering vehicles, patrol vehicles and special off-road equipment. Simple mechanical layout brings low failure rate and convenient global after-sales maintenance.

Product TypeComplete VehicleClass II Bare Chassis
Model No.BAW2043HHS42BAW2043HHS42D

Brand NameRuisheng BrandRuisheng Brand
Curb Weight (Kg)22001980
Gross Vehicle Weight (Kg)44654465
Axle Load (Kg)1570/28951570/2895
Wheelbase (mm)30353035
Front/Rear Track (mm)15401540
Leaf Spring Quantity (pcs)-/3-/3
Tire Specification7.00R16LT12PR/265/70R16LT 10PR265/70R17LT 10PR
7.00R16LT12PR/265/70R16LT 10PR
Overall Dimension
L×W×H (mm)
5110×1830,1940×20254480×1830×1950
Cargo Box Dimension
L×W×H (mm)
2195×1580×480/
Minimum Ground Clearance (mm)225225
Minimum Turning Diameter (m)13.713.7
Maximum Speed (Km/h)120120
Number of Axles22
Seating Capacity (persons)22
Approach/Departure Angle (°)42/2542/25
Front/Rear Overhang (mm)775/1300775/1300
Engine ModelYCY24165-66/YCY24140-30AYCY24165-66/YCY24140-30A
Fuel TypeDieselDiesel
Emission StandardNational VI b / National IIINational VI b / National III
Displacement (mL)23602360
Rated Power/Speed kW/r/min120、103/2950120、103/2950
Max Torque/Speed N·m/r/min350/1500-2400350/1500-2400
Transmission5MT5MT
Drive LayoutFront-engine 4WDFront-engine 4WD
4WD TypePart-time 4WDPart-time 4WD
Transfer Case ControlMechanical 2-speed Manual ShiftMechanical 2-speed Manual Shift
Front Suspension TypeFront Coil Spring Multi-link Non-independent SuspensionFront Coil Spring Multi-link Non-independent Suspension
Rear Suspension TypeLongitudinal Leaf Spring Non-independent SuspensionLongitudinal Leaf Spring Non-independent Suspension
Steering BoosterMechanical Hydraulic AssistMechanical Hydraulic Assist
Body StructureNon-load-bearing BodyNon-load-bearing Body
Front/Rear Brake TypeFront Disc, Rear DrumFront Disc, Rear Drum
Parking Brake TypeHand BrakeHand Brake
ABS+EBD
Energy-absorbing Steering Column
Front 3-point Seat Belts
Rear 3-point Seat Belts
Tow Hook
Steering Wheel Tilt Adjustment
Standard Steering Wheel
Manual Integrated Heating & Cooling AC
Center Storage Box
Front Reading Lamp
Rear Dome Lamp
Cigarette Lighter
Driver Seat Adjustment● Fore/aft adjustment
● Backrest adjustment
● Fore/aft adjustment
● Backrest adjustment
Passenger Seat Adjustment● Fore/aft adjustment
● Backrest adjustment
● Fore/aft adjustment
● Backrest adjustment
Fabric Seats
Leather Seats
Speakers2 pcs2 pcs
Radio
External Audio Input (AUX/USB/iPod etc.)USB (Front: 1, Rear: 0)USB (Front: 1, Rear: 0)
Manual Outer Rearview Mirror
Front Fog Lamp
Rear Fog Lamp
Halogen Headlamp
High-mounted Brake Light//
Water-saving Spray Wiper Nozzle
