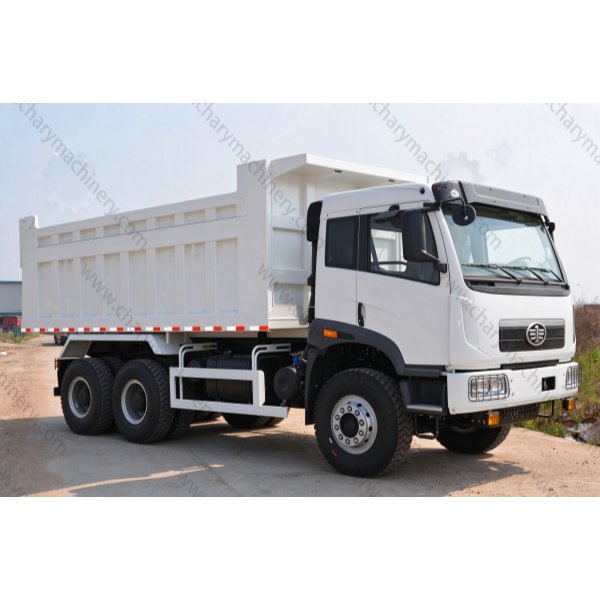

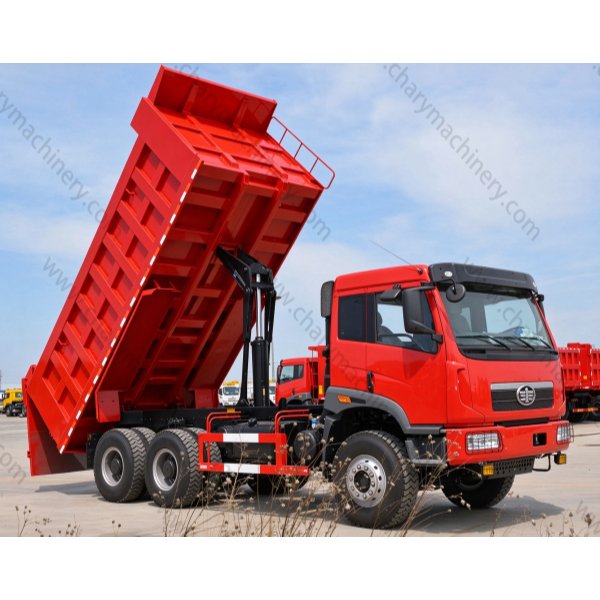

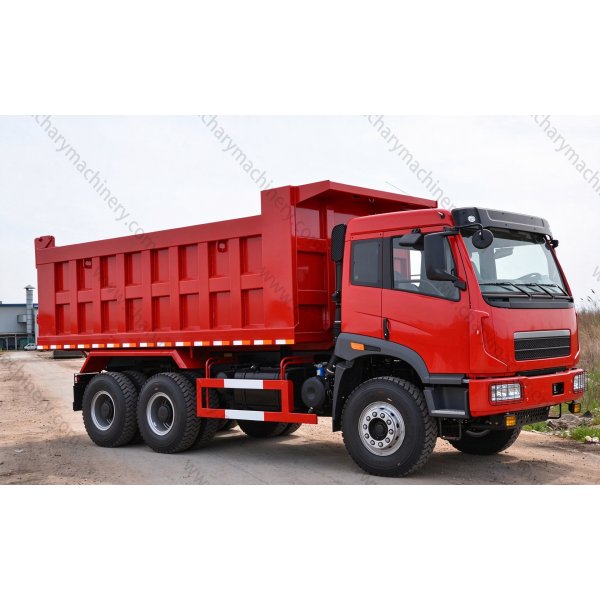

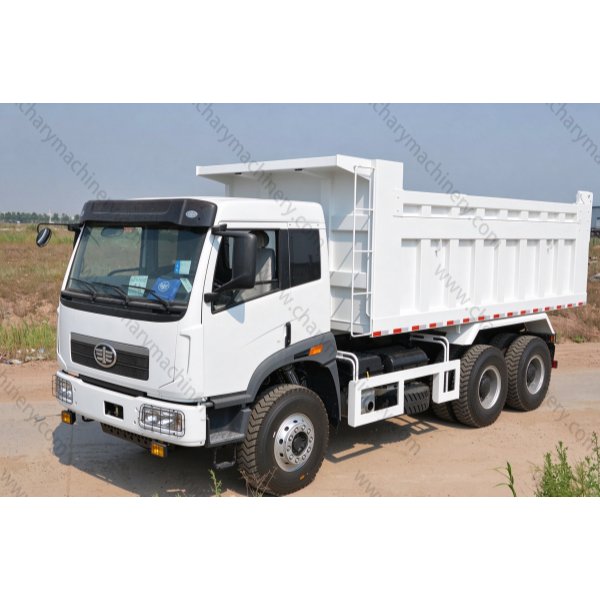

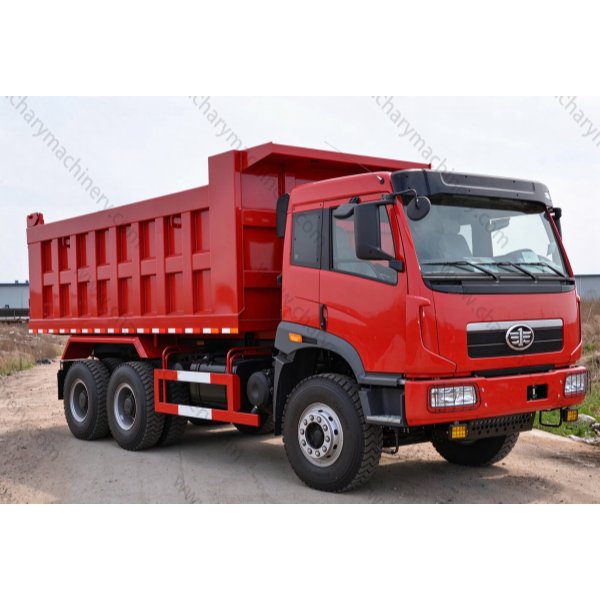

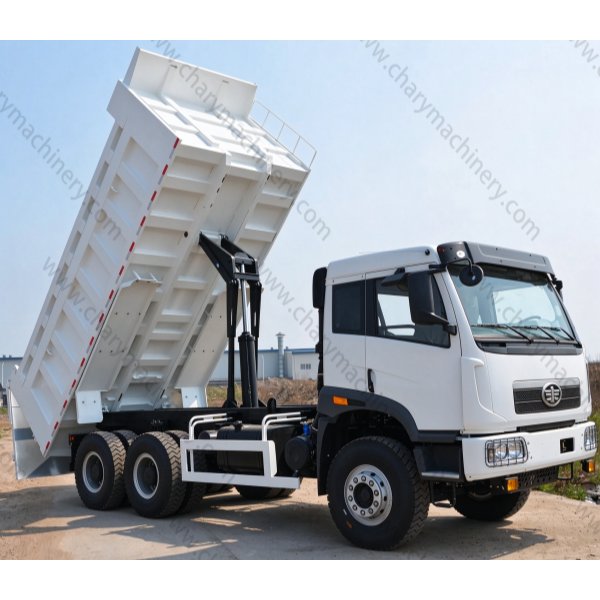

New FAW J5P 6×4 390HP Tipper Truck
New FAW J5P 6×4 390HP Tipper Truck for West African mines and quarries: 390HP with 1750N.m pulls 20t up loaded slopes; 19.3m³ 8mm-floor reinforced box handles rock and gravel; middle-lifting cylinder unloads fast; twin 16T wheel-reduction axles survive rough roads; familiar 10-speed gearbox and easy local parts.
Products
New FAW J5P 6×4 390HP Tipper TruckNew FAW J5P 6×4 390HP Tipper Truck for West African mines and quarries: 390HP with 1750N.m pulls 20t up loaded slopes; 19.3m³ 8mm-floor reinforced box handles rock and gravel; middle-lifting cylinder unloads fast; twin 16T wheel-reduction axles survive rough roads; familiar 10-speed gearbox and easy local parts.
| Item | Specification |
|---|---|
| Vehicle Type | New J5P Dump Truck, 6×4 (10 Wheels), LHD |
| Emission Standard | Customizable |
| Engine | FAW CA6DM2-39E3F, Inline 6-cyl Turbo Intercooler, 390HP / 1750N.m, 11.04L, EGR |
| Clutch | Φ430 |
| Gearbox | FAW CA10TA190F Manual with PTO, 10 Forward / 2 Reverse |
| Front Axle | FAW 2020, 7T |
| Rear Axle | Φ300 Cast-iron Wheel Reduction Axle, 16T×2, Ratio 5.921 |
| Dump Box | 5600×2300×1500mm, 19.32m³; Bottom 8mm, Side 6mm; Middle Lifting |
| Overall Dimensions | 8800×2500×3450mm |
| Payload | 20T |
