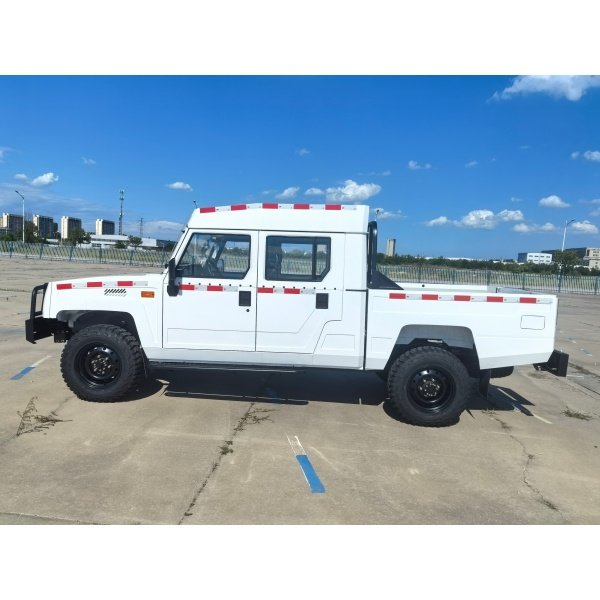

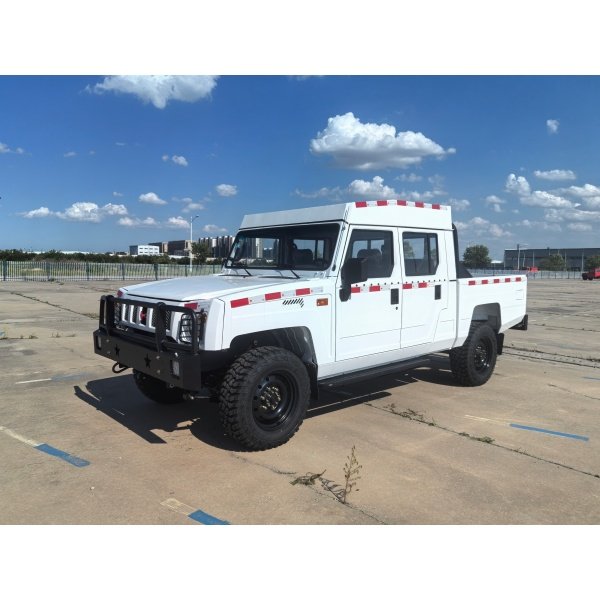

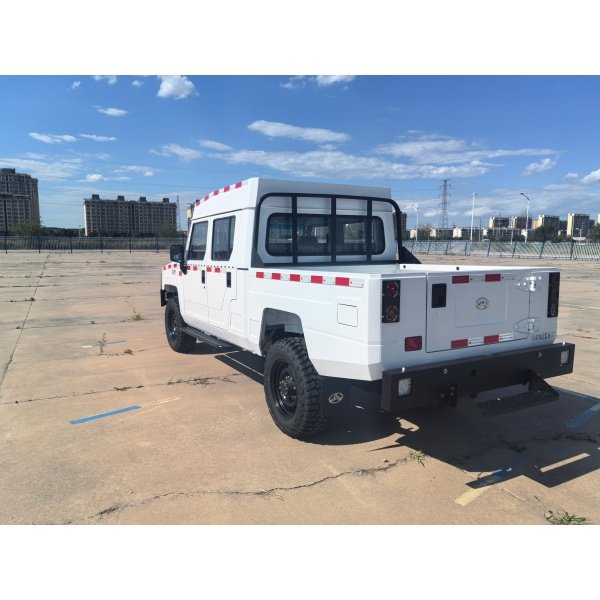

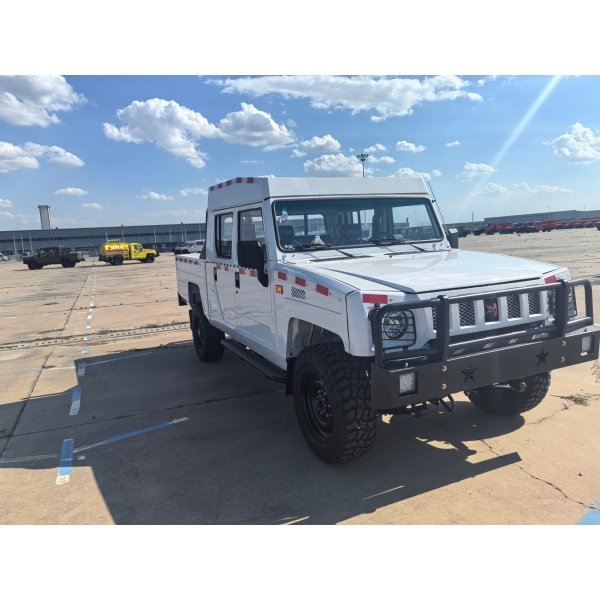

Ruisheng 4WD Off-road Pickup Truck | Military Style Diesel Cargo Pickup
Ruisheng pickup adopts a rugged non-load-bearing off-road chassis paired with National VI b / National III compliant diesel engine. With 225mm high ground clearance and powerful low-speed torque, this 5-seater pickup is ideal for field exploration, engineering transportation and emergency material delivery. In-stock vehicles are available for global supply.
Model No. BAW2043HHS42 Image Brand Name Ruisheng Brand Curb Weight (Kg) 2200 Gross Vehicle Weight (Kg) 4465 Axle Load (Kg) 1570/2895 Wheelbase (mm) 3035 Front/Rear Track (mm) 1540 Leaf Spring Quantity (pcs) -/3 Tire Specification 7.00R16LT12PR/265/70R16LT 10PR Overall Dimension
L×W×H (mm)5110×1830，1940×2025 Cargo Box Dimension
L×W×H (mm)2195×1580×480 Minimum Ground Clearance (mm) 225 Minimum Turning Diameter (m) 13.7 Maximum Speed (Km/h) 120 Number of Axles 2 Seating Capacity (persons) 2 Approach/Departure Angle (°) 42/25 Front/Rear Overhang (mm) 775/1300 Engine Model YCY24165-66/YCY24140-30A Fuel Type Diesel Emission Standard National VI b / National III Displacement (mL) 2360 Rated Power/Speed kW/r/min 120、103/2950 Max Torque/Speed N·m/r/min 350/1500-2400 Transmission 5MT Drive Layout Front-engine 4WD 4WD Type Part-time 4WD Transfer Case Control Mechanical 2-speed Manual Shift Front Suspension Type Front Coil Spring Multi-link Non-independent Suspension Rear Suspension Type Longitudinal Leaf Spring Non-independent Suspension Steering Booster Mechanical Hydraulic Assist Body Structure Non-load-bearing Body Front/Rear Brake Type Front Disc, Rear Drum Parking Brake Type Hand Brake ABS+EBD ● Energy-absorbing Steering Column ● Front 3-point Seat Belts ● Rear 3-point Seat Belts ● Tow Hook ○ Steering Wheel Tilt Adjustment ● Standard Steering Wheel ● Manual Integrated Heating & Cooling AC ● Center Storage Box ● Front Reading Lamp ● Rear Dome Lamp ● Cigarette Lighter ● Driver Seat Adjustment ● Fore/aft adjustment
● Backrest adjustmentPassenger Seat Adjustment ● Fore/aft adjustment
● Backrest adjustmentFabric Seats ● Leather Seats ○ Speakers 2 pcs Radio ● External Audio Input (AUX/USB/iPod etc.) USB (Front: 1, Rear: 0) Manual Outer Rearview Mirror ● Front Fog Lamp ● Rear Fog Lamp ● Halogen Headlamp ● High-mounted Brake Light / Water-saving Spray Wiper Nozzle ●
