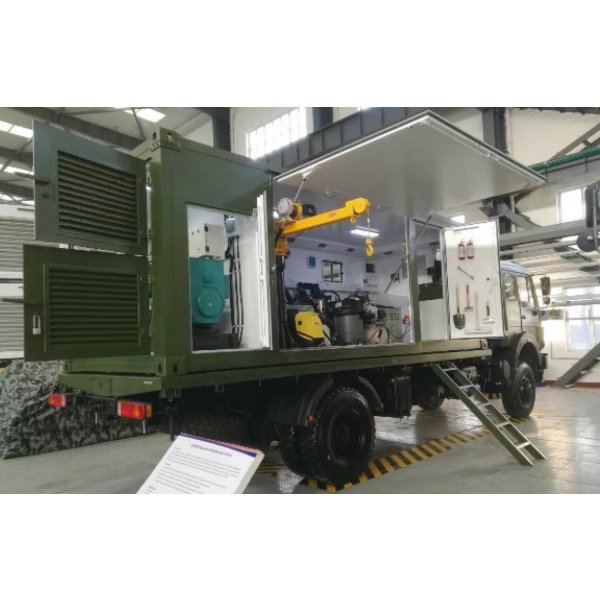

4×4 Off-Road Vehicle Mounted Maintenance Workshop Shelter | Mobile Field Equipment Repair Service Cabin
Integrated field maintenance shelter equipped with welding, cutting, drilling, threading, sandblasting, flushing and air inflation multi-process working functions.
Built with a small lifting crane and 40kW generator to support on-site disassembly, replacement and maintenance of vehicle walking components.
Based on 4×4 off-road chassis with excellent mobility and cross-country capacity to reach remote field operation areas.
Complete air compression system provides 0.8MPa stable air pressure for pneumatic tools, with maximum drilling diameter up to 13mm.
Good passing performance including 800mm wading depth, 500mm ditch crossing and 400mm vertical obstacle crossing for complex wild terrain.
This maintenance support shelter is capable of various operations including welding, cutting, drilling, threading, sandblasting, vehicle flushing, high-pressure air inflation and grease filling.
It adopts a 4×4 off-road chassis with strong mobility and cross-country capacity. It can carry out disassembly, assembly and daily maintenance for driving wheels, load wheels, side reducers, guide wheels, track rollers and balance beams of equipment.
Main Specification
|
Overall Dimension | Length: 9415±100mm; Width: 2500±100mm; Height: 3560±100mm |
Total Vehicle Weight | ≤14T |
Engine Rated Power |
228kW |
Mobility Performance |
| Max Road Speed | 85km/h |
| Fuel Consumption | 25–30L/100km |
| Driving Range | 800km |
| Trafficability Performance |
| Minimum Turning Radius | 11.5m |
| Max Wading Depth | 800mm |
| Max Ditch Crossing Width | 500mm |
| Max Vertical Obstacle Crossing Height | 400mm |
Working Performance |
| Max Drilling Diameter | 13mm |
| Compressed Air Pressure | 0.8MPa |
| Max Lifting Weight | 0.8t |
| Generator Set Power | 40kW |
