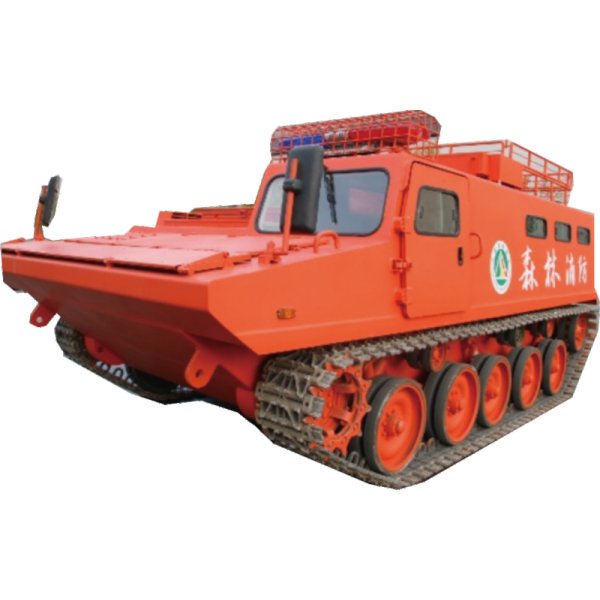

Old Model Tracked Forest Troop Carrier | All-Terrain Crawler Wildfire Personnel Transport Vehicle

Armored full-track carrier for transporting forest firefighting crews in rugged wild terrain.
235kW high-power engine delivers stable power for mountain, swamp and slope cross-country travel.
Compact dimension with curb weight ≤14 tons for flexible operation in narrow woodland paths.
55km/h max road speed and 400km cruising range support long-duration field patrol tasks.
Spacious passenger cabin meets large team transfer and emergency evacuation demands for wildfire rescue.

Liorah

13780658694

+86 13780658694

liorah@charymachinery.com

Inquiry List Add To Inquire Vehicle

This old series adopts unified armored tracked carrier chassis, optimized for complex forest and grassland emergency rescue environments. The modular universal chassis owns high mobility, strong power, reliable protection and excellent obstacle-crossing ability.

Two customized cabins (personnel transport / water tank fire suppression) are optional to fully satisfy all wildfire prevention and rescue work requirements.

Main Specification
Overall Dimensions	Length: 6300±100mm Width: 3100±100mm Height: 3100±100mm
Curb Weight	≤ 14 T
Engine Rated Power	235kW
Max Road Speed	55km/h
Fuel Consumption	80–90L/100km
Cruising Range	400km
Max Gradeability	22°
Max Trench Crossing	1.6m
Max Vertical Obstacle Crossing Height	0.4m
Track Width	470mm
