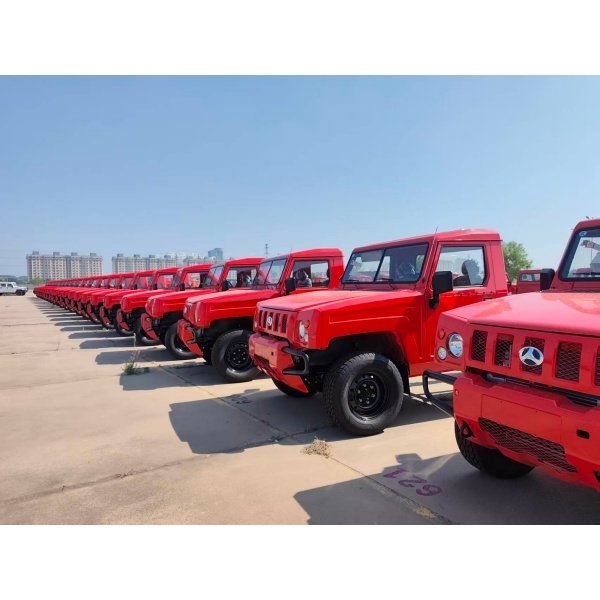

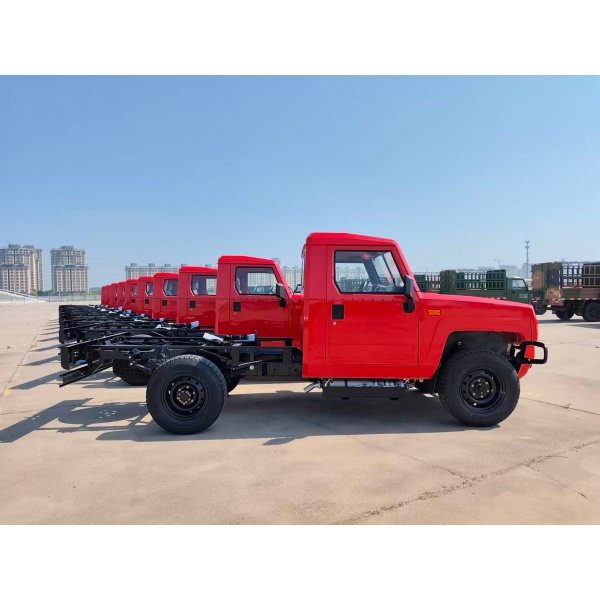

Part-time 4WD Off-road Pickup Chassis
Built with body-on-frame chassis and part-time 4-wheel drive for stable off-road driving.
Matched with 2.36L diesel engine and 5MT gearbox, fitted with leaf spring suspension.
Features 225mm ground clearance together with great approach and departure angles.
Mainly applied to emergency rescue, transportation, field work and special vehicle modification.
Allow buyers to process and install cargo bodies locally in African regions.
Products
Part-time 4WD Off-road Pickup ChassisBuilt with body-on-frame chassis and part-time 4-wheel drive for stable off-road driving.
Matched with 2.36L diesel engine and 5MT gearbox, fitted with leaf spring suspension.
Features 225mm ground clearance together with great approach and departure angles.
Mainly applied to emergency rescue, transportation, field work and special vehicle modification.
Allow buyers to process and install cargo bodies locally in African regions.
| Model No. | BAW2043HMS61 | Drive Mode | Part-time 4WD, Front engine layout |
| Curb Weight | 2330kg | Gross Vehicle Weight | 4465kg |
| Wheelbase | 3695mm | Track Width | 1540mm |
| Ground Clearance | 225mm | Min Turning Diameter | 16.1m |
| Max Speed | 120km/h | Angle of Attack / Departure | 42° / 30° |
| Engine Model | YCY24165-66 / YCY24140-30A | Displacement | 2360mL |
| Rated Power | 120kW / 103kW@2950rpm | Max Torque | 350N·m (1500-2400rpm) |
| Gearbox | 5MT Manual Gearbox | Fuel Type | Diesel |
| Emission Standard | Euro6b / Euro2 | Tire Spec | 7.00R16LT / 265/70R16LT |
| Brake System | Front disc + Rear drum with ABS+EBD | Suspension | Leaf spring non-independent suspension |
| Cab Capacity | 2+3 persons | Overall Dimension | 5840×1850×2050mm |
