Semi-Trailer Amphibious Dredging Rescue Vehicle | Flood Control Water & Land Dual-Purpose Excavator
Special semi-trailer amphibious floating rescue machine independently developed for flood control emergency dredging and obstacle removal.
Integrated wheel set and suspension structure allows road towing transport to rapidly reach flood operation sites.
Auxiliary support legs push the whole pontoon equipment into water without extra loading and unloading procedures.
Quick coupling and decoupling design fits mainstream North Benz, HOWO and other tractor head brands for highway haulage.
Replaceable digging bucket and gripper attachments support various waterway dredging and barrier clearing rescue operations.

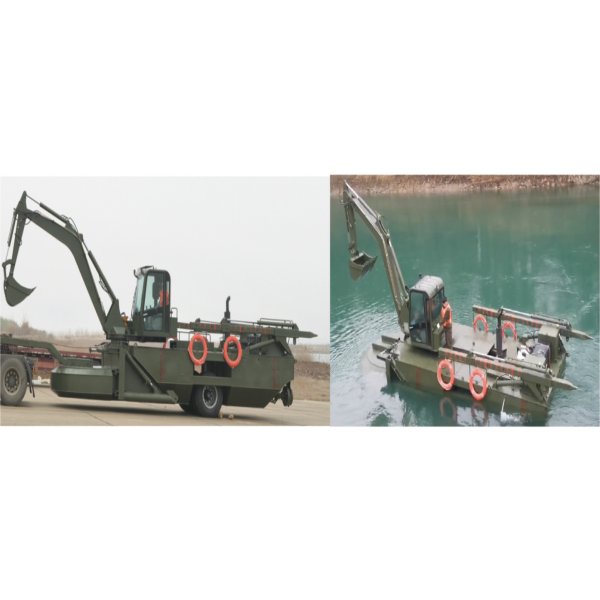

The semi-trailer amphibious rescue equipment is a dedicated amphibious product developed for flood fighting and emergency rescue. Adopting an integral floating pontoon structure with built-in wheel groups and suspension, it can travel on land under tractor towing to quickly arrive at rescue sites. Supported by its self-contained outriggers, the whole equipment can be pushed into water by the tractor to carry out operations without loading or unloading.
The semi-trailer chassis system can be rapidly coupled and decoupled with tractors of brands including North Benz and HOWO, meeting standard highway transportation requirements. Equipped with modular engineering working units and replaceable attachments such as digging buckets and grapples, it can complete water obstacle clearing and dredging rescue missions.
Main Specification |
Overall Dimension | ≤12.5m × 3m × 4.2m |
Total Mass | ≤20t |
Load Capacity On Water | ≤5t |
| Max Towing Speed On Road | ≥45km/h |
| Max Navigation Speed | ≥5km/h |
| Max Digging Depth | ≤2.5m |
| Bucket Capacity | ≤0.3m³ |
| Engine Power | 103kW |
