DIMENSIONS

Size

10400mm*2540mm*3600mm

Cargo body size

9530*2480*1600mm

Capacity

37 CBM (60T)

Thickness of cargo body

Bottom 8mm, side wall 6 mm. Q345 Mn steel

Main beam

Heavy duty and extra durability designed I beam, Mn345B steel plates, automatic submerged arc welded.

Floor

8mm plain plate, Q345 Mn steel

Side wall

Height 1600mm, thickness 6mm. Q345 Mn steel

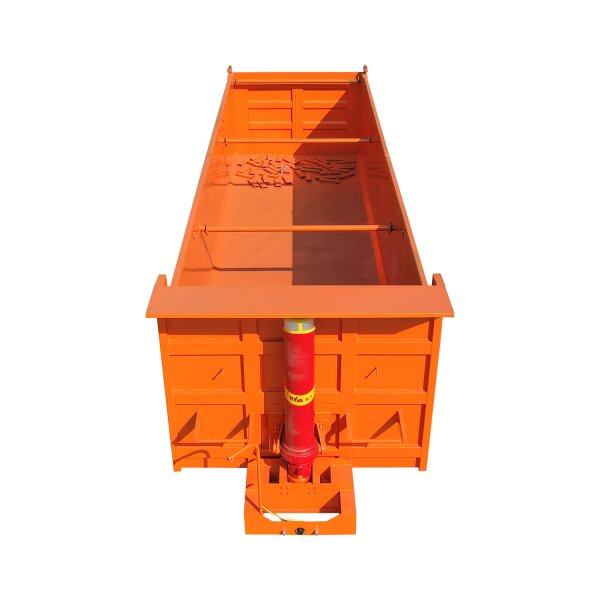

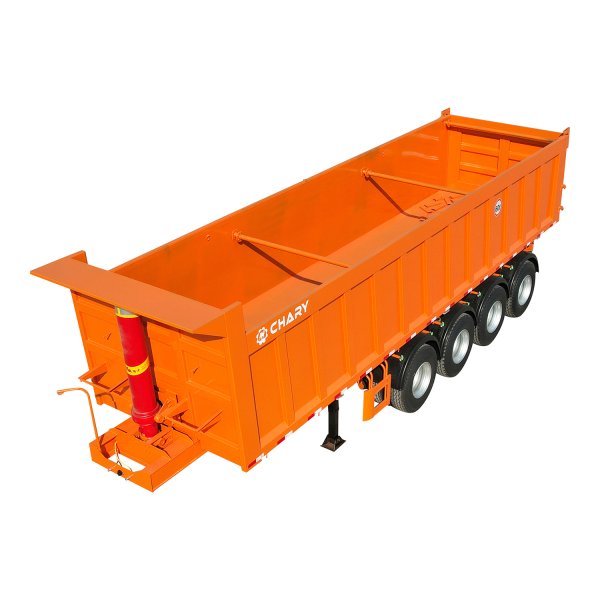

Tipping Cylinder

Holland brand, HYVA FCA191

Front tipping with more stable

Performance,  Φ191mm

Axle

4 axles. 3 axles FUWA 16T, 1 lifting axle FUWA 13T

Suspension

First axle FUWA 13T lifting with pneumatic/AIR suspension system, and 3 units of 16 tons FUWA axles suspension with heavy leaf spring suspension system.

Beam

Beam: 500mm height, top/bottom flange 18mm, middle plate 10mm

Leaf spring

Leaf spring 11pcs*90*13mm

Tires

13R22.5 tubeless radial tire

16+1 spare tire

Rims

9.75-22.5 rim, 16+1 pcs, 10 holes

Spare tire carrier

2pcs, 1 with spare tire and the other without

Kingpin

JOST 3.5” bolt-in king pin

Landing gear

JOST brand two-speed, manual operating ,heavy duty landing gear 28T. Static load 80T

Braking system

Double circuit air brake. Front axle 30/30 brake chamber , rear axle 30 brake chamber. No ABS

Lights

LED 8 side lights and 2 rear lights 2 width lamp

Front: white. Rear: Red. Side: Yellow. Turn: Yellow

Painting

Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2coats of final paint

Voltage

12 Volt

Accessories

One standard tool box

Connector

7 PINS

Reflectors

On both side and rear side of the trailer

Relay valves

WABCO brand
