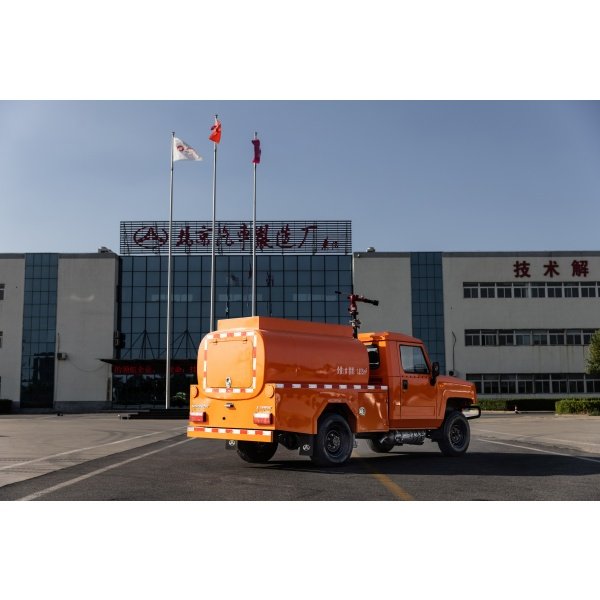

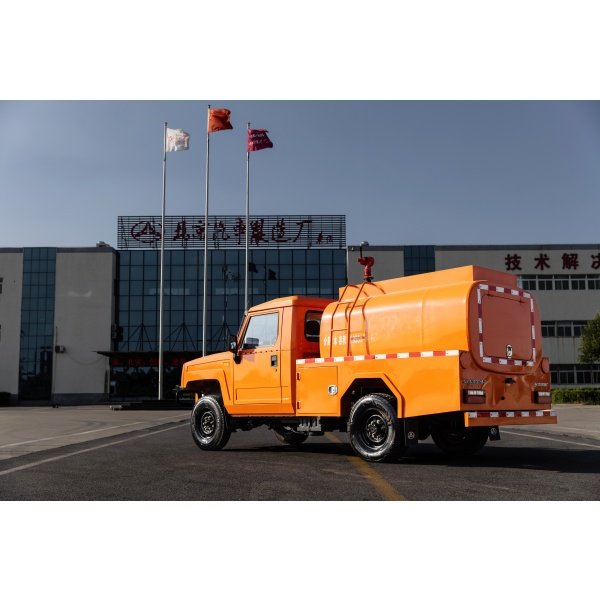

4x4 Single Cab Water Supply Sprinkler Fire Truck|Off-Road Forest Fire Prevention Water Carrier

Part-time 4WD chassis adapts to rugged mountain forest terrain for wildfire duty
1.67m³ water tank with fast filling & draining, water cannon shooting range ≥25m
Turbo diesel engine delivers stable power, max speed up to 120km/h
National VI emission standard and 70L fuel tank support long-distance field operation
Optional warning light, megaphone and wire reel for complete forest fire rescue work

Liorah

Main Specification
Overall Dimension	5925×1870×2090mm
Wheelbase	3025mm
Front/Rear Track	1540/1540mm
Curb Weight	2990kg
Gross Weight	4485kg
Seating Capacity	2 persons
Transmission	5-speed manual gearbox
Drive Mode	Part-time 4WD
Suspension	Front coil spring, rear leaf spring (9/8+8 pieces)
Tire Spec	Front:7.00 R16LT 12PR; Rear:265/75R16LT 10PR
Max Speed	120km/h
Fuel Type	Diesel
Engine Model	YCT24140-60A
Displacement	2390mL
Max Power / RPM	103kW / 2950rpm
Max Torque / RPM	350N·m / 1400-2400rpm
Intake Type	Turbocharged
Emission Standard	Euro VI
Fuel Tank Capacity	70L

Special Equipment

Water tank volume: 1.67m³; tank filling ≤6min, tank draining ≤5min, water cannon range ≥25m, pump flow 100L/min
Optional fittings: warning light, megaphone, wire reel and other devices
