PXAGV30 30 Ton Ultra-Heavy-Duty Flatbed AGV

Products

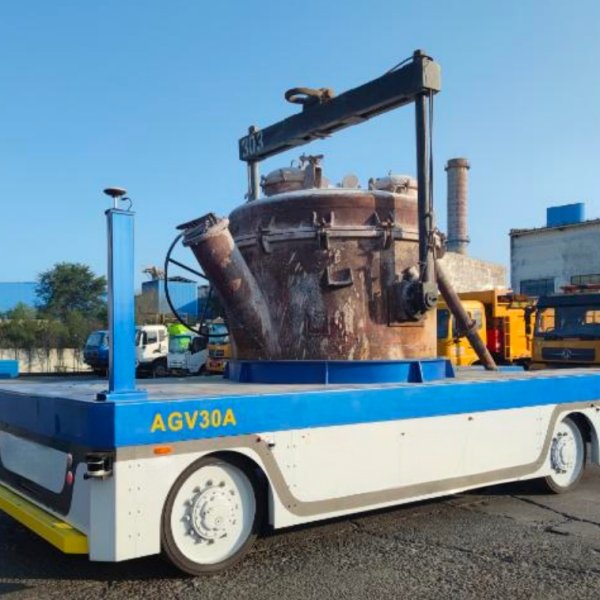

30 Ton Heavy-Duty Outdoor Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle
30 Ton Heavy-Duty Outdoor Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle

30 Ton Heavy-Duty Outdoor Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle

  • 30 Ton Ultra-Heavy Load Capacity: Designed for transporting the heaviest industrial materials in factories and steel plants.

  • Rugged Flatbed Platform: Low-profile design ideal for handling large, heavy payloads like ladles and industrial containers.

  • GNSS+IMU Hybrid Navigation: No magnetic tape required, works reliably in large open industrial yards.

  • Stable & Controlled Operation: Max speed 5.4 km/h, 7° climbing ability, and 8m turning radius for safe, precise movement.

  • Long Endurance: 81kWh battery delivers up to 40km range on a single charge, suitable for multi-shift work.

Main Specification

Model

PXAGV30

Overall Dimensions

7300mm (L)  × 3000mm (W) × 1200mm (H)

Maximum Speed

5.4km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

30T

Minimum Turning Radius

8m

Superstructure Type

Flatbed

Navigation Method

GNSS + IMU + Inertial Navigation

Battery Capacity

81kWh

Operating Range

40km
