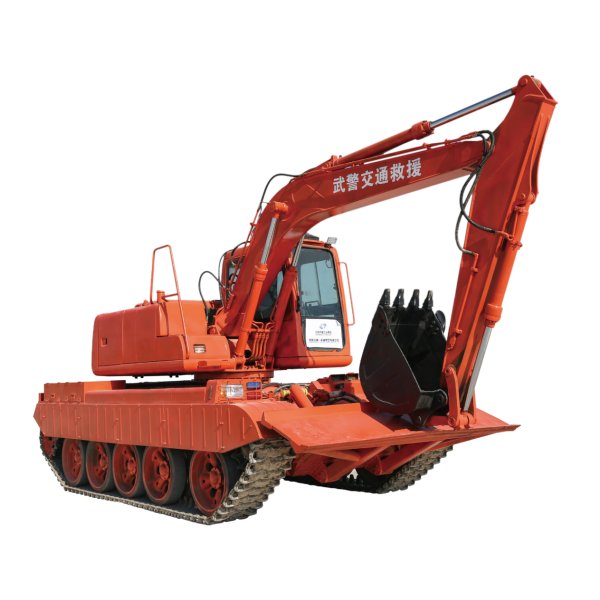

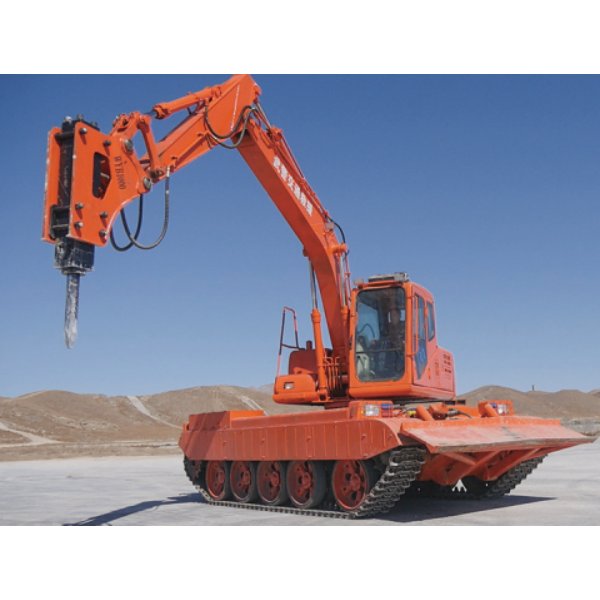

Tracked All-Terrain Road Rescue Clearance Vehicle | Landslide Earthquake Disaster Crawler Excavator
Armored tracked road clearance vehicle specially developed for earthquake, landslide and mudslide disaster emergency rescue.
Dual independent power system with 382kW chassis engine and 108kW excavator engine for super strong operation power.
Integrated bulldozing, digging, rock breaking and vehicle towing multi-functional working equipment.
Reinforced collision & anti-fall armored cabin fully protects operators in harsh disaster working conditions.
Outstanding cross-country performance enables 8 times faster arrival at rescue sites than ordinary wheeled excavators.
Special Truck
Tracked All-Terrain Road Rescue Clearance Vehicle | Landslide Earthquake Disaster Crawler Excavator
Armored tracked road clearance vehicle specially developed for earthquake, landslide and mudslide disaster emergency rescue.
Dual independent power system with 382kW chassis engine and 108kW excavator engine for super strong operation power.
Integrated bulldozing, digging, rock breaking and vehicle towing multi-functional working equipment.
Reinforced collision & anti-fall armored cabin fully protects operators in harsh disaster working conditions.
Outstanding cross-country performance enables 8 times faster arrival at rescue sites than ordinary wheeled excavators.
This equipment is mainly used for emergency rescue after major natural disasters such as earthquakes, mountain landslides and mudslides. It integrates functions including bulldozing, earth excavation, rock crushing and vehicle towing.
Adopting armored chassis with collision and fall resistance features, it effectively protects crew safety. Equipped with superior trafficability, it can reach rescue operation sites rapidly at a speed 8 times faster than standard excavators.
Main Specification |
Engine Model | 12150LV four-stroke direct injection turbocharged water-cooled high-speed diesel engine |
Chassis Engine Power | 382kW |
Excavator Engine Power | 108kW |
| Overall Dimension(L×W×H) | 10056 × 3270 × 3727 mm |
| Max Travel Speed | ≥40km/h |
| Curb Mass | ≤36 Tons |
| Crew Capacity | 1 driver + 1 operator (2 persons) |
| Max Trench Crossing Width | 1.6m |
| Max Vertical Obstacle Height | 0.5m |
| Excavator Bucket Capacity | 0.7m³ |
| Excavator Travel Speed | ≥1km/h |
| Bulldozing Thrust | 15 T |
| Digging Depth | ≥200mm |
| Hydraulic Winch Pulling Force | 30 T |
| Hydraulic Winch Speed | 3m/min |
| Electric Winch Pulling Force | 1 T |
