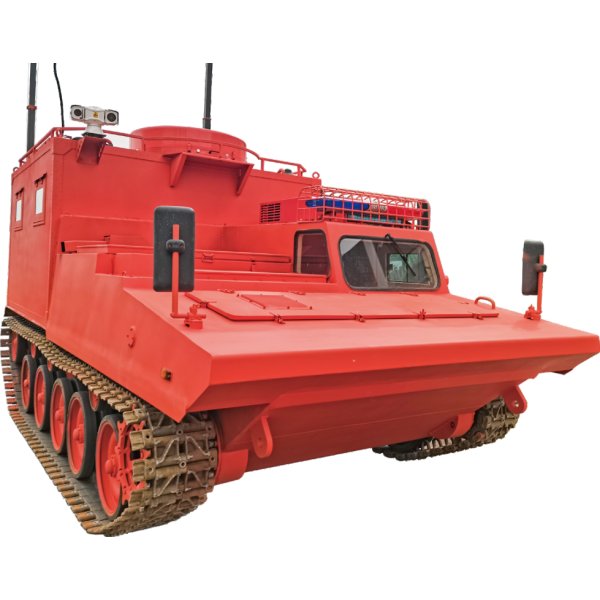

Tracked All-Terrain Emergency Command Vehicle | Wildfire Forest Rescue Crawler Command Center Truck
Full-armor tracked mobile command center for on-site unified scheduling of forest and grassland wildfire rescue operations.
235kW tracked chassis delivers strong off-road capacity to reach inaccessible mountain and swamp fire zones.
Equipped with multi-mode communication, Beidou positioning and fire mapping system for real-time field information transmission.
Integrated office, video conference and drone surveillance system supports all-round emergency monitoring and command.
Optional generator, air conditioner and rescue towing tools guarantee stable long-duration field command work.
Special Truck
Tracked All-Terrain Emergency Command Vehicle | Wildfire Forest Rescue Crawler Command Center Truck
Full-armor tracked mobile command center for on-site unified scheduling of forest and grassland wildfire rescue operations.
235kW tracked chassis delivers strong off-road capacity to reach inaccessible mountain and swamp fire zones.
Equipped with multi-mode communication, Beidou positioning and fire mapping system for real-time field information transmission.
Integrated office, video conference and drone surveillance system supports all-round emergency monitoring and command.
Optional generator, air conditioner and rescue towing tools guarantee stable long-duration field command work.
This tracked command vehicle adopts the universal armored crawler chassis for forest and grassland emergency rescue. It serves as a mobile integrated command hub for frontline wildfire disposal.
The modular command cabin is fitted with complete communication, positioning, office and reconnaissance equipment to support real-time monitoring, cross-team coordination and remote emergency scheduling under harsh off-road field conditions.
Main Specification |
Overall Dimensions | Length: 6300±100mm Width: 3100±100mm Height: 3100±100mm |
Curb Weight | ≤ 14 T |
Engine Rated Power | 235kW |
| Steering Mode | Steering Wheel Control |
Max Road Speed | 55km/h |
Fuel Consumption | 80–90L/100km |
| Engine Oil Consumption | 1L / 100km |
Cruising Range | ≥400km |
Max Gradeability | 22° |
Max Trench Crossing Width | 1.6m |
Max Vertical Obstacle Crossing Height | 0.4m |
| Min Turning Radius | 3.5m |
Track Width | 470mm |
| Max Wading Depth | 0.7m |
| Rated Occupants | ≥1 driver + 3 staff |
| Command Cabin Power Supply | Three power supply modes: UPS uninterruptible power supply, on-board generator power supply and municipal power supply |
| Kitchen Working Performance |
| Double Cooking Stoves | 600mm caliber, 50L per pot |
| Clean Water Tank | 400L volume |
| Water Purifier | 500L/h purification flow |
| Dough Mixer | 15L capacity, 0.5–5kg dry flour per batch |
| Steam Oven | 10 trays (4kg rice/noodles per tray) |
| Refrigerator & Freezer | 90L fridge + 90L freezer |
| Overall Catering Capacity | 200 servings per hour |
Optional Supporting Facilities |
| Generator | Power matched to the load of all supporting equipment |
| Communication System | Mobile satellite communication, 4G/5G public network communication, shortwave/ultra-shortwave communication, WiFi interconnection, vehicle dispatch communication, VoIP satellite phone |
| Positioning System | Beidou satellite tracking and positioning, fire front mapping system |
| Office System | Industrial control computer with KVM, LCD display, video conference system, LAN interconnection, internet access |
| Reconnaissance System | Unmanned aerial vehicle, roof camera monitoring system |
| Auxiliary Tools | 1 steel wire rope (length 10m, towing mass ≥15T); shovels, picks, mesh bags, binding straps, vehicle cover, alarm device, external loudspeaker, air conditioning unit |
