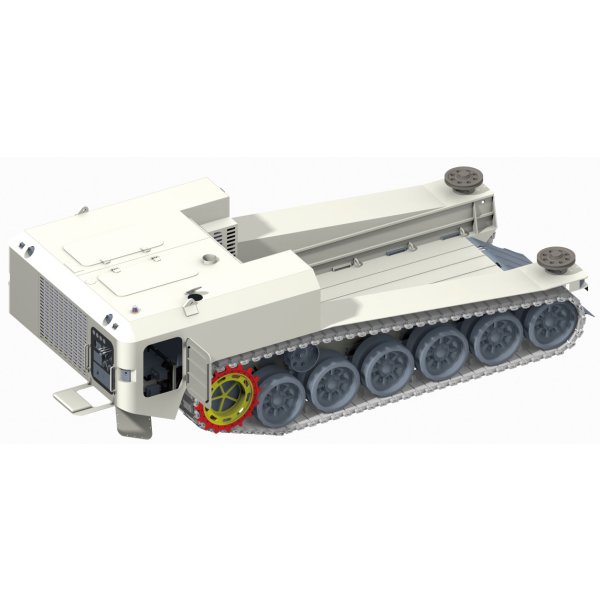

Tracked High Load Explosion-Proof Mine Transport Vehicle | Remote Control Hydraulic Coal Mine Support Carrier
Adopts tracked torsion bar suspension system matched with high-power explosion-proof hydraulic transmission system for heavy underground load transportation.
Maximum load capacity over 40 tons to meet the haulage demands of large-tonnage hydraulic supports inside narrow underground roadways.
Full hydraulic drive structure with stable traction performance; the built-in winch provides 30-ton traction force for auxiliary dragging operations.
Supports 40-meter wireless remote control operation with maximum 25° climbing capacity to adapt to inclined underground mining roadways.
Continuous 8-hour non-stop working cycle provides reliable equipment support for safe and high-efficiency production of coal mining industry.
Products
Tracked High Load Explosion-Proof Mine Transport Vehicle | Remote Control Hydraulic Coal Mine Support Carrier
Adopts tracked torsion bar suspension system matched with high-power explosion-proof hydraulic transmission system for heavy underground load transportation.
Maximum load capacity over 40 tons to meet the haulage demands of large-tonnage hydraulic supports inside narrow underground roadways.
Full hydraulic drive structure with stable traction performance; the built-in winch provides 30-ton traction force for auxiliary dragging operations.
Supports 40-meter wireless remote control operation with maximum 25° climbing capacity to adapt to inclined underground mining roadways.
Continuous 8-hour non-stop working cycle provides reliable equipment support for safe and high-efficiency production of coal mining industry.
The tracked high-load explosion-proof mining transporter is equipped with tracked torsion bar suspension and high-power explosion-proof hydraulic transmission system.
It is developed to solve the transportation difficulty of large-tonnage hydraulic supports in underground mines, delivering powerful equipment support for safe and efficient development of the coal mining industry.
Main Specification
|
Maximum Load Capacity | ≥40t |
Overall Dimension | ≤7500×3200×1800 mm |
Maximum Travel Speed (Full Load) | 4.8km/h |
| Drive Mode | Hydraulic Drive |
| Maximum Gradeability | 25° |
| Remote Control Distance | 40m |
| Winch Traction Force | 30T |
| Maximum Continuous Working Time | 8H
|
