Tracked Jet Turbine Fire Suppression Vehicle | Armored All-Terrain Jet Fire Extinguishing Tank Truck
Heavy-duty armored tracked fire vehicle equipped with large jet turbine device for rapid flame blowout and high-temperature fire suppression.
Dual independent power system with 382kW chassis engine and auxiliary working engine delivers ultra-strong power for harsh fire sites.
Standard high-flow 80L/s water pump matched with 1300L water tank and 780L foam tank supports long-duration continuous fire attack.
Superior off-road performance with 460mm ground clearance and max speed over 50km/h to reach inaccessible mountain and chemical fire zones.
Multiple optional auxiliary equipment including searchlight, cooling spray, communication and gas detection system meets full-scene rescue demands.
Products
Tracked Jet Turbine Fire Suppression Vehicle | Armored All-Terrain Jet Fire Extinguishing Tank Truck
Heavy-duty armored tracked fire vehicle equipped with large jet turbine device for rapid flame blowout and high-temperature fire suppression.
Dual independent power system with 382kW chassis engine and auxiliary working engine delivers ultra-strong power for harsh fire sites.
Standard high-flow 80L/s water pump matched with 1300L water tank and 780L foam tank supports long-duration continuous fire attack.
Superior off-road performance with 460mm ground clearance and max speed over 50km/h to reach inaccessible mountain and chemical fire zones.
Multiple optional auxiliary equipment including searchlight, cooling spray, communication and gas detection system meets full-scene rescue demands.

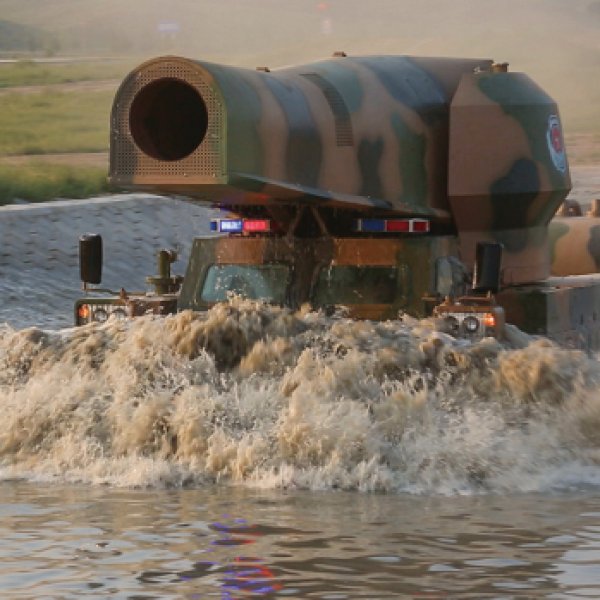

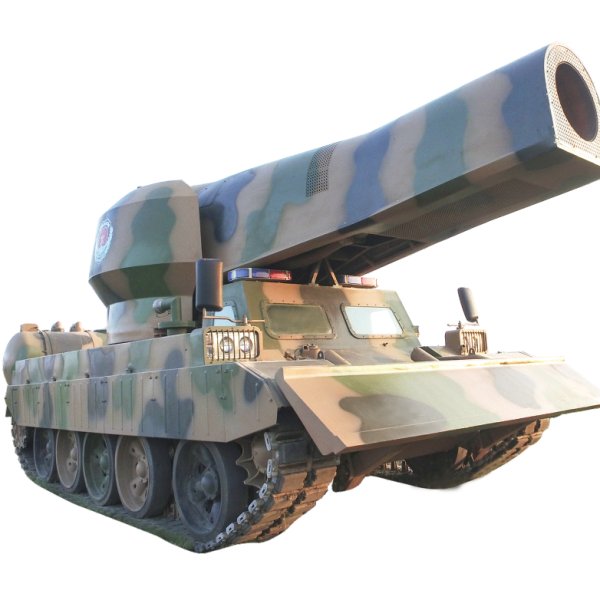

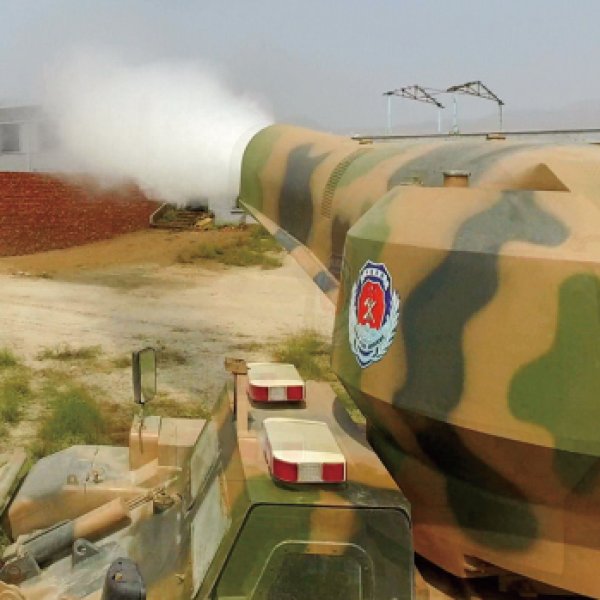

This tracked jet turbine special fire vehicle adopts heavy armored tank chassis, fitted with a large jet blast suppression device as core fire-fighting equipment. Driven by dual high-power diesel engines, it generates powerful jet airflow to rapidly blow out open flames and cool high-temperature combustion zones.
The vehicle is standardly equipped with high-flow water pump, large-capacity water and foam storage tanks to realize remote long-distance fire extinguishing. With outstanding all-terrain passing performance, it can operate stably in mountain wildfires, chemical plant fires and post-disaster complex terrain. A full set of optional auxiliary detection, communication and life support equipment can be configured to cope with various complex emergency fire rescue missions.
Main Specification
|
Engine Model | 12150LV four-stroke direct injection turbocharged water-cooled high-speed diesel engine |
Chassis Engine Power | 382kW |
Working Equipment Engine Power | 382kW |
| Overall Dimension (L×W×H) | 7850 (muzzle length up to 8900) × 3340 × 3430 mm |
| Drive Layout | 5 driving wheels + 1 idler wheel |
| Curb Weight | 33T |
| Vehicle Configuration (●=Standard, ○=Optional) |
| Jet Turbine Suppression Device | ● Standard |
| Fire Water Pump (80L/s Flow Rate) | ● Standard |
| Fire Scene Searchlight | ○ Optional |
| Spraying Cooling System | ○ Optional |
| Air Conditioning System | ○ Optional |
| Communication System (Radio & Digital Intercom) | ○ Optional |
| Vehicle Navigation (GPS / Beidou) | ○ Optional |
| Traction Winch | ○ Optional |
| AG107 Combustible Gas Detector | ○ Optional |
| Personal Respirator & Air Bottle Set | ○ Optional |
| Main Performance Parameters |
| Curb Weight | ≤33000kg |
| Full Load Weight | ≤36000kg |
| Average Road Speed | 20–30km/h |
| Max Road Speed | ≥50km/h |
| Ground Clearance | 1300L |
| Water Tank Volume | 1300L |
| Foam Tank Volume | 780L |
| Water Jet Range | 70m |
| Foam Jet Range | 65m |
