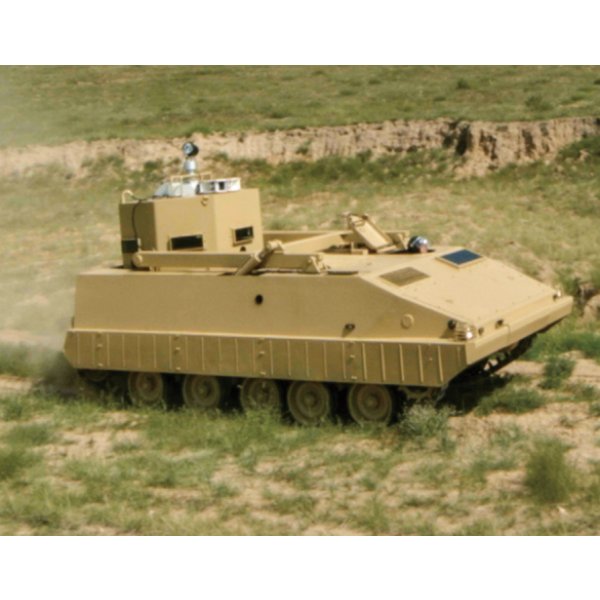

Tracked Self-Propelled Lifting Armored Anti-Riot Guard Post Vehicle | Border Patrol Observation Chassis
Adopts full tracked armored chassis carrying a vertically liftable armored sentry cabin to realize rapid shift of fixed patrol posts for police and border troops.
Superior all-terrain passing performance with 28° climbing gradient, 25° lateral tilt driving and 0.5m vertical obstacle crossing capacity to pass complex rugged roads inaccessible to wheeled anti-riot vehicles.
Standard NIJ Level I bulletproof armor protection, equipped with observation window, internal communication alarm and two-way intercom warning function for on-duty safety monitoring.
Optional firepower configuration supports mounting of 7.62mm or 12.7mm machine guns to strengthen long-distance warning and deterrence capability at duty posts.
Fills the domestic technical blank by breaking the terrain limitation of wheel-based anti-terror vehicles, realizing flexible mobile sentry duty in mountainous, muddy and bumpy border zones.
Products
Tracked Self-Propelled Lifting Armored Anti-Riot Guard Post Vehicle | Border Patrol Observation Chassis
Adopts full tracked armored chassis carrying a vertically liftable armored sentry cabin to realize rapid shift of fixed patrol posts for police and border troops.
Superior all-terrain passing performance with 28° climbing gradient, 25° lateral tilt driving and 0.5m vertical obstacle crossing capacity to pass complex rugged roads inaccessible to wheeled anti-riot vehicles.
Standard NIJ Level I bulletproof armor protection, equipped with observation window, internal communication alarm and two-way intercom warning function for on-duty safety monitoring.
Optional firepower configuration supports mounting of 7.62mm or 12.7mm machine guns to strengthen long-distance warning and deterrence capability at duty posts.
Fills the domestic technical blank by breaking the terrain limitation of wheel-based anti-terror vehicles, realizing flexible mobile sentry duty in mountainous, muddy and bumpy border zones.
This equipment is mainly used for fixed-point sentry protection by public security, armed police and border defense troops.

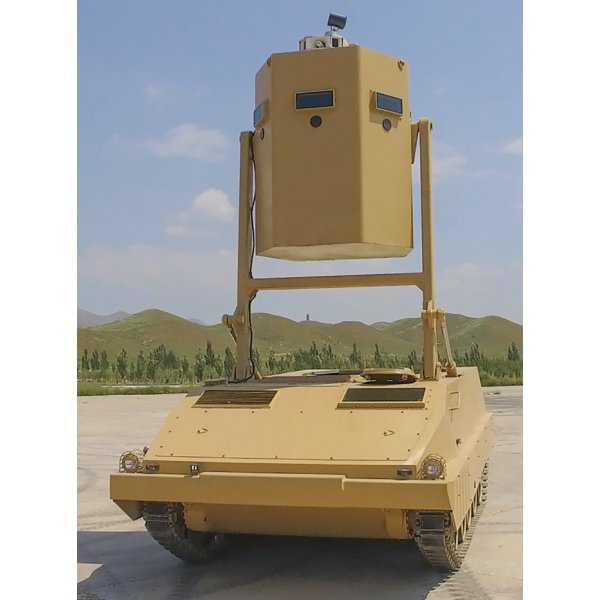

It adopts a full-track armored chassis and carries a vertically liftable armored sentry cabin to achieve rapid post rotation at patrol stations.
It breaks the limitation of wheel-based anti-riot vehicles on complex roads and fills the domestic industry blank.
Main Specification
|
Full Vehicle Weight | ≤17T |
Crew Capacity | 1 operator + 1 sentry |
Overall Dimension (L×W×H) | 6040 × 3100 × 2800 (cabin lowered) / 5600 (machine gun lifted) |
| Engine Rated Power | 235kW |
| Max Road Speed | ≥60km/h |
| Gradeability | ≥28° |
| Max Lateral Tilt Driving Gradient | ≥25° |
| Max Trench Crossing Width | 1.5m |
| Max Vertical Obstacle Crossing Height | 0.5m |
| Armor Protection | Ballistic protection up to NIJ Level I |
| Early Warning & Protection Functions | Early Warning & Protection Functions |
| Optional Firepower Configuration | 7.62mm or 12.7mm machine gun |
