BAW2043HHR51D Ruisheng Two-Seat Military Part-time 4WD Diesel Bare Chassis

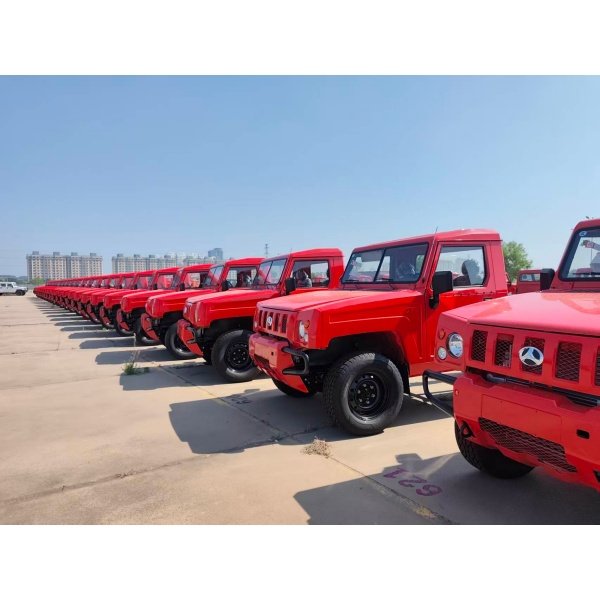

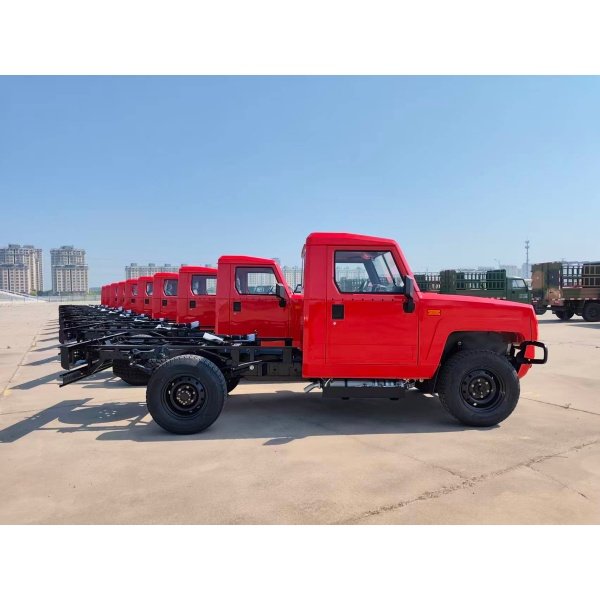

 2-Seat Part-time 4WD Diesel Class II Off-road Bare Chassis
 2-Seat Part-time 4WD Diesel Class II Off-road Bare Chassis
 2-Seat Part-time 4WD Diesel Class II Off-road Bare Chassis
 2-Seat Part-time 4WD Diesel Class II Off-road Bare Chassis

2-Seat Part-time 4WD Diesel Class II Off-road Bare Chassis

This Ruisheng BAW2043HHR51D is a single-row two-seat military off-road bare chassis with non-load-bearing body design. It matches a 2.36L high-torque diesel engine, supporting National III and National VI b dual emission standards to adapt to vehicle registration regulations of various countries. Equipped with mechanical two-speed transfer case + part-time four-wheel drive system together with leaf spring dependent suspension, the chassis features 225mm ultra-high ground clearance, outstanding climbing and cross-country capability. Compact two-person cabin layout is widely applied for refitting fire rescue vehicles, field engineering vehicles, border patrol cars and special emergency equipment, featuring simple mechanical structure, low failure rate and easy global maintenance.

Product TypeClass II Bare Chassis
Model No.BAW2043HHR51D
Brand NameRuisheng Brand
Curb Weight (Kg)1980
Gross Vehicle Weight (Kg)4465
Axle Load (Kg)1570/2895
Wheelbase (mm)3350
Front/Rear Track (mm)1540
Leaf Spring Quantity (pcs)-/3
Tire Specification7.00R16LT12PR/
265/70R16LT 10PR
Overall Dimension
L×W×H (mm)
5410,5350×1940×2105,1955
Cargo Box Dimension
L×W×H (mm)
/
Minimum Ground Clearance (mm)225
Minimum Turning Diameter (m)15
Maximum Speed (Km/h)120
Number of Axles2
Seating Capacity (persons)2
Approach/Departure Angle (°)42/25
Front/Rear Overhang (mm)835/1225,775/1225
Engine ModelYCY24165-66/YCY24140-30A
Fuel TypeDiesel
Emission StandardNational VI b / National III
Displacement (mL)2360
Rated Power/Speed kW/r/min120、103/2950
Max Torque/Speed N·m/r/min350/1500-2400
Transmission5MT
Drive LayoutFront-engine 4WD
4WD TypePart-time 4WD
Transfer Case ControlMechanical 2-speed Manual Shift
Front Suspension TypeLongitudinal Leaf Spring Non-independent Suspension
Rear Suspension TypeLongitudinal Leaf Spring Non-independent Suspension
Steering BoosterMechanical Hydraulic Assist
Body StructureNon-load-bearing Body
Front/Rear Brake TypeFront Disc, Rear Drum
Parking Brake TypeHand Brake
ABS+EBD
Energy-absorbing Steering Column
Front 3-point Seat Belts
Rear 3-point Seat Belts
Tow Hook
Steering Wheel Tilt Adjustment
Standard Steering Wheel
Manual Integrated Heating & Cooling AC
Center Storage Box
Front Reading Lamp
Rear Dome Lamp
Cigarette Lighter
Driver Seat Adjustment● Fore/aft adjustment
● Backrest adjustment
Passenger Seat Adjustment● Fore/aft adjustment
● Backrest adjustment
Fabric Seats
Leather Seats
Speakers2 pcs
Radio
External Audio Input (AUX/USB/iPod etc.)USB (Front: 1, Rear: 0)
Manual Outer Rearview Mirror
Front Fog Lamp
Rear Fog Lamp
Halogen Headlamp
High-mounted Brake Light/
Water-saving Spray Wiper Nozzle
