PXAGV20B 20 Ton Ultra-Long Low-Profile Flatbed AGV

Products

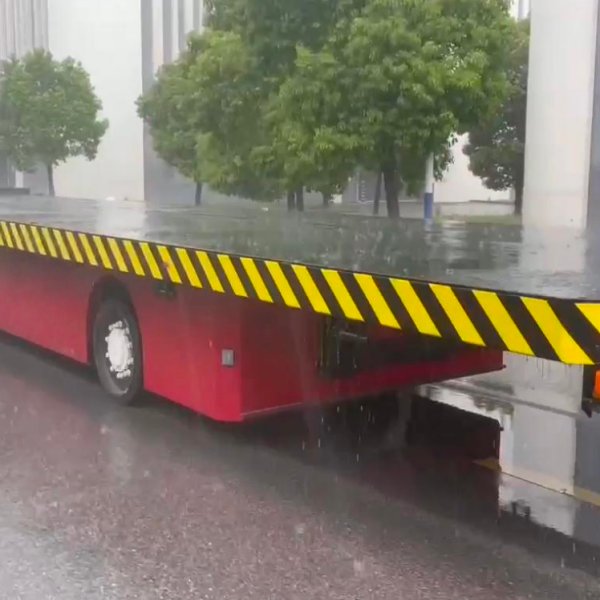

20 Ton Ultra-Long Low-Profile Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle
20 Ton Ultra-Long Low-Profile Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle

20 Ton Ultra-Long Low-Profile Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle

  • 20 Ton Heavy Load Capacity: Ultra-long low-profile flatbed design for transporting large, oversize industrial loads.

  • Robust Low-Profile Platform: 1253mm height for easy loading/unloading of low-clearance or overlength cargo.

  • GNSS+IMU Hybrid Navigation: No magnetic tape required, ideal for large open outdoor yards and ports.

  • Balanced Performance: Max speed 10 km/h, 7° climbing ability, and 10m turning radius for stable, controlled operation.

  • Long Endurance: 81kWh battery delivers up to 35km range on a single charge, suitable for multi-shift work.

Main Specification

Model

PXAGV20B

Overall Dimensions

13300mm (L)  × 3600mm (W) × 1253mm (H)

Maximum Speed

10km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

20T

Minimum Turning Radius

10m

Superstructure Type

Flatbed

Navigation Method

GNSS + IMU + Inertial Navigation

Battery Capacity

81kWh

Operating Range

35km
