This KA-certified explosion-proof mining haulage vehicle is powered by a Yuchai turbocharged diesel engine and adopts 4×4 all-wheel drive configuration with hydraulic wet brake, fully compliant with underground mine safety regulations.

Products
UQ-15(A) 15-Ton Mining Dump Truck
UQ-15(A) 15-Ton Mining Dump Truck
UQ-15(A) 15-Ton Mining Dump Truck
UQ-15(A) 15-Ton Mining Dump Truck
UQ-15(A) 15-Ton Mining Dump Truck
UQ-15(A) 15-Ton Mining Dump Truck
UQ-15(A) 15-Ton Mining Dump Truck
UQ-15(A) 15-Ton Mining Dump Truck

UQ-15(A) 15-Ton Mining Dump Truck

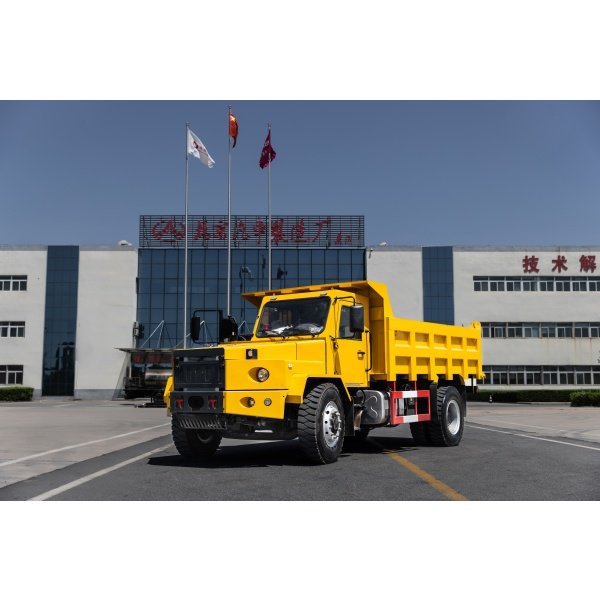

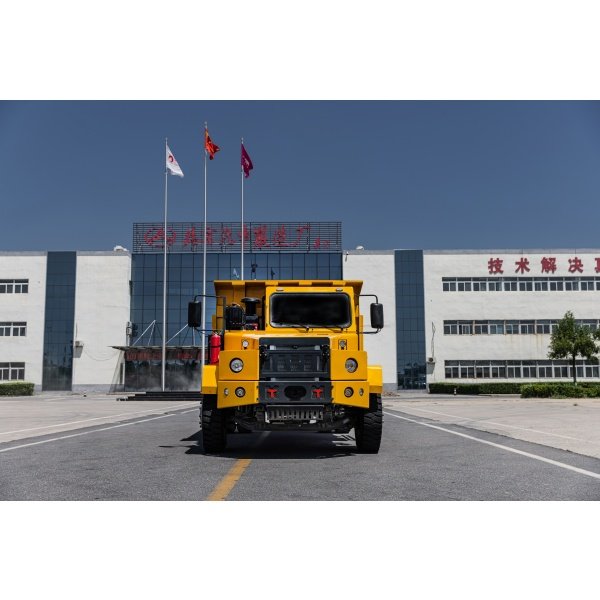

This KA-certified explosion-proof mining haulage vehicle is powered by a Yuchai turbocharged diesel engine and adopts 4×4 all-wheel drive configuration with hydraulic wet brake, fully compliant with underground mine safety regulations.

With a 15-ton rated loading capacity and 7.5m³ cargo box volume, this mining tipper truck is designed for transporting ores, gravel and construction wastes in underground and open-pit mines, featuring stable climbing performance and reliable unloading system, with all vehicle configurations available for customized adjustment.

Main Specification

Overall Dimensions

6960mm(L) × 2570mm(W) × 2620mm(H)

Wheelbase

3940 mm

Curb Weight

11120 kg

Cargo Box Volume

7.5 m³

Max. Gradeability

14°

Minimum Ground Clearance

300 mm

Inside/Outside Turning Radius

5000/8500 mm

Cargo Box Tipping Angle

43°

Cargo Box Lifting Time

≤30 s

Cargo Box Lowering Time

≤30 s
Max. Height During Unloading4900 mm
Loading Height2150 mm
Front/Rear Tire Specification11.00R20 18PR
Engine ModelYCA07P260-T400
Engine ManufacturerYuchai Machinery
Displacement6871 mL
Intake ModeTurbocharged
Transmission7-speed Manual Transmission
Rated Power/Speed191kW/2200r/min
Max. Torque/Speed1050Nm/1400-1700r/min
Fuel TypeDiesel
Drive Type4×4
Front/Rear SuspensionLongitudinal Leaf Spring Non-independent Suspension
Steering SystemHydraulic Power Steering
Front/Rear Brake TypeHydraulic Wet Brake
Parking Brake TypeSpring Brake with Hydraulic Release
Note: Other configurations can be CUSTOMIZED according to customer requirements.
