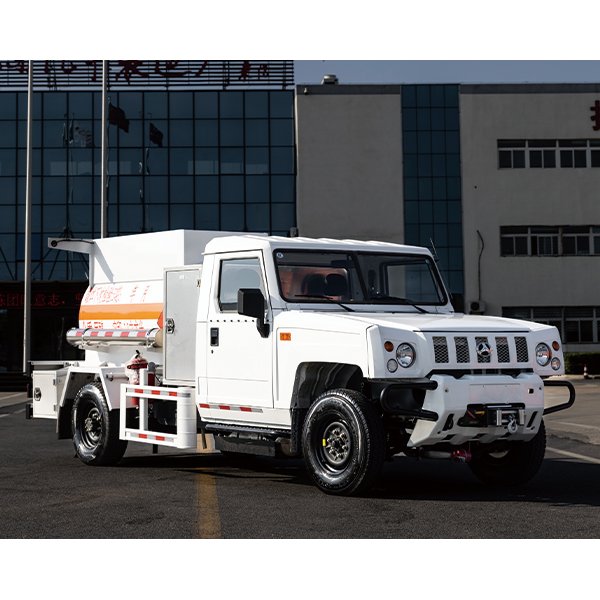

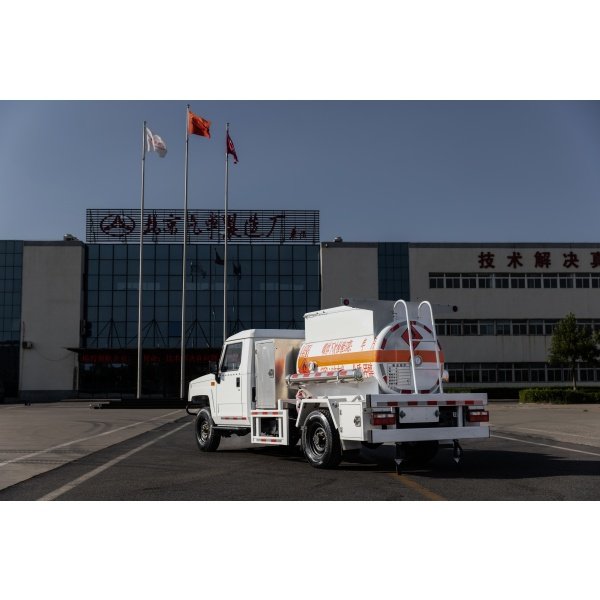

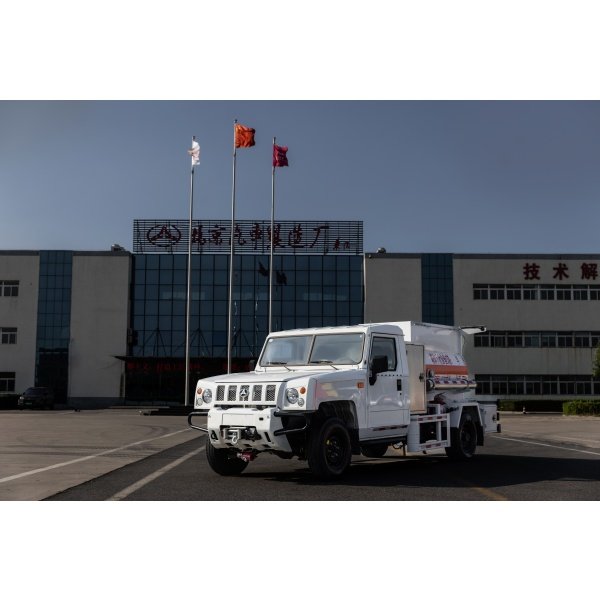

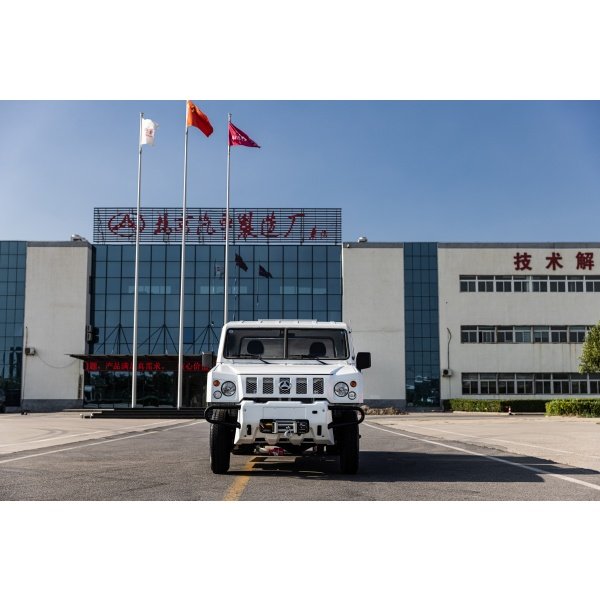

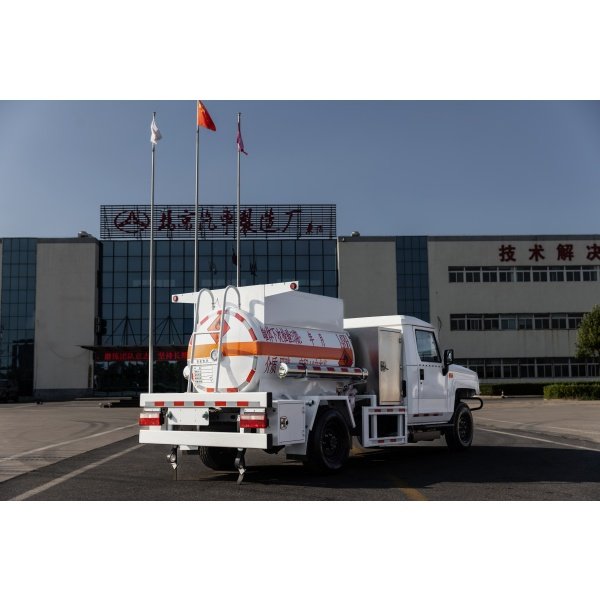

Warrior 4WD Hazardous Chemical Class II Chassis For Fuel Tank & Dangerous Goods Truck Modification
Professional hazardous chemical dedicated bare chassis, meets national dangerous goods transport vehicle chassis safety standards, reserved special mounting interfaces for oil tank, chemical storage tank and explosion-proof auxiliary devices.

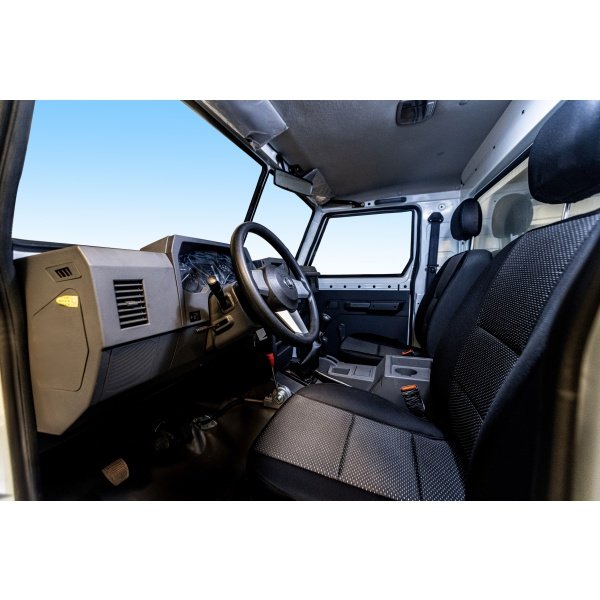

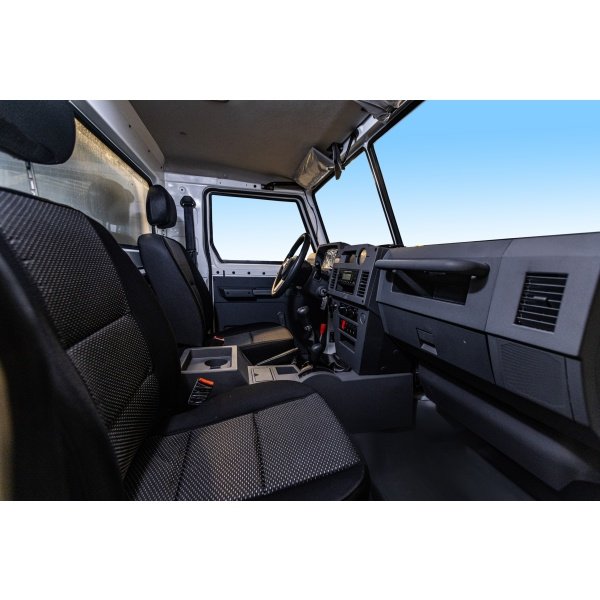

Single cab 2-person layout, part-time four-wheel drive design with reinforced leaf spring suspension, strong off-road performance for remote mountain chemical material transportation and emergency rescue.
Equipped with Yuchai turbocharged diesel engine complying with National VI emission standard, stable low-speed high torque output, matched with explosion-proof electrical system to fit hazardous goods operation safety requirements.
Matched with manual 5-speed transmission, max speed up to 120km/h, 70L fuel tank and heavy-duty off-road tires, reliable long-distance cross-country transportation of flammable and chemical materials.
Full set of safety reserved design including explosion-proof wiring harness, static conduction structure and flame retardant components, fully satisfy modification demand of fuel tank truck, chemical transport vehicle and emergency rescue tanker.
Products
Warrior 4WD Hazardous Chemical Class II Chassis For Fuel Tank & Dangerous Goods Truck Modification
Professional hazardous chemical dedicated bare chassis, meets national dangerous goods transport vehicle chassis safety standards, reserved special mounting interfaces for oil tank, chemical storage tank and explosion-proof auxiliary devices.
Single cab 2-person layout, part-time four-wheel drive design with reinforced leaf spring suspension, strong off-road performance for remote mountain chemical material transportation and emergency rescue.
Equipped with Yuchai turbocharged diesel engine complying with National VI emission standard, stable low-speed high torque output, matched with explosion-proof electrical system to fit hazardous goods operation safety requirements.
Matched with manual 5-speed transmission, max speed up to 120km/h, 70L fuel tank and heavy-duty off-road tires, reliable long-distance cross-country transportation of flammable and chemical materials.
Full set of safety reserved design including explosion-proof wiring harness, static conduction structure and flame retardant components, fully satisfy modification demand of fuel tank truck, chemical transport vehicle and emergency rescue tanker.
Engine Universal Parameters |
| Overall Dimension | 5700×1850×1960/2100 mm |
| Wheel Base | 3695 mm |
| Wheel Track | 1540 mm |
| Curb Mass | 1990 kg |
| Total Gross Mass | 4465 kg |
| Rated Passengers | 2 persons |
| Transmission | Manual 5-speed gearbox |
| Drive Mode | Part-time 4WD |
| Suspension Type | Front & Rear Leaf Spring (9/8+8); Front single auxiliary spring (-/3) |
| Tire Spec | Front:7.00R16LT 12PR; Rear:265/70R16LT 10PR |
| Fuel Type | Diesel |
Engine Model | YCY24140-60A |
Displacement | 2360 mL |
| Power / Rotate Speed | 103kW/2950r/min |
| Torque / Rotate Speed | 350N·m/1400-2400r/min |
| Air Intake Mode | Turbocharged |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Emission Standard | Euro VI |
| Fuel Tank Volume | 70 L |
| Max Speed | 120 km/h |
Export Remarks
This chassis adopts full explosion-proof electrical matching, static elimination design and flame retardant wiring, strictly compliant with dangerous goods transport vehicle chassis production standards, widely modified into fuel tank trucks, chemical liquid transport vehicles and emergency chemical disposal vehicles.
