Warrior 4WD Mini Tipper Dump Truck | Off-Road Civil Transport Vehicle For Export

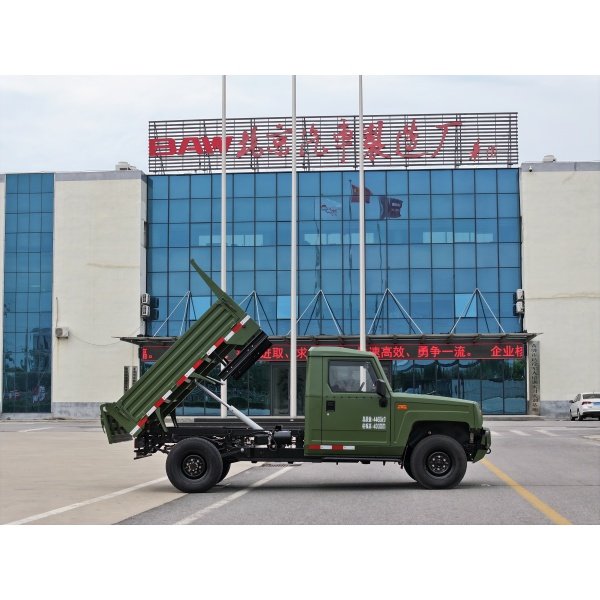

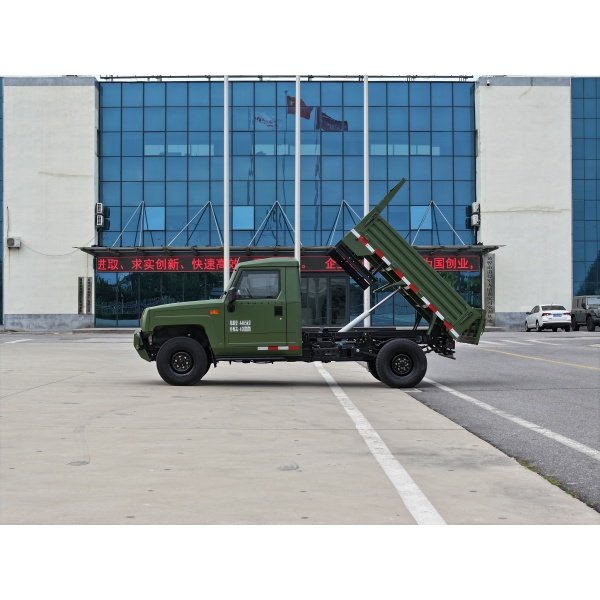

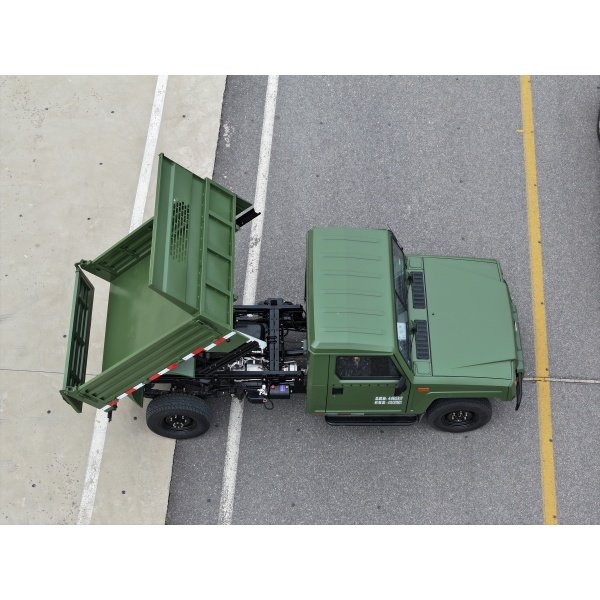

Single cab 2-seat layout equipped with hydraulic self-unloading cargo box, automatic lifting function for fast unloading of sand, gravel, grain and construction waste.
Adopt part-time four-wheel drive system and reinforced front & rear leaf spring suspension, strong off-road performance adapting to mountain, muddy, rural rough construction roads.
Standard Yuchai turbocharged diesel engine; 2.47L gasoline engine optional for overseas orders, emission meets National III & V standards to match multi-country import requirements.
Matched with manual 5-speed transmission, maximum speed up to 120km/h, 70L large fuel tank and heavy-duty off-road tires for long-distance field transportation.
Compact overall dimension with reasonable wheelbase design, flexible turning radius, ideal for narrow mountain roads, farmland and small-scale construction project material transport.
Products
Warrior 4WD Mini Tipper Dump Truck | Off-Road Civil Transport Vehicle For Export
Single cab 2-seat layout equipped with hydraulic self-unloading cargo box, automatic lifting function for fast unloading of sand, gravel, grain and construction waste.
Adopt part-time four-wheel drive system and reinforced front & rear leaf spring suspension, strong off-road performance adapting to mountain, muddy, rural rough construction roads.
Standard Yuchai turbocharged diesel engine; 2.47L gasoline engine optional for overseas orders, emission meets National III & V standards to match multi-country import requirements.
Matched with manual 5-speed transmission, maximum speed up to 120km/h, 70L large fuel tank and heavy-duty off-road tires for long-distance field transportation.
Compact overall dimension with reasonable wheelbase design, flexible turning radius, ideal for narrow mountain roads, farmland and small-scale construction project material transport.
Main Specification |
Overall Dimension | 4990×1940×1990 mm |
Wheelbase | 3350 mm |
Front/Rear Track | 1540 mm |
| Curb Weight | 2285 kg / 2425 kg |
| Gross Weight | 4465 kg |
| Seating Capacity | 2 persons |
| Transmission | Manual 5-speed gearbox |
| Drive Mode | Part-time 4WD |
| Suspension | Front & Rear Leaf Spring (9/8+8) |
| Tire Spec | Front:7.00R16LT 12PR; Rear:265/70R16LT 10PR |
| Max Speed | 120km/h
|
| Fuel Type | Diesel (2.47L gasoline optional for export) |
| Engine Model | YCY24140-60A |
| Displacement | 2360 mL |
| Max Power / RPM | 103kW/2950r/min |
| Max Torque / RPM | 350N·m/1400-2400r/min |
| Intake Type | Turbocharged |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Emission Standard | Euro VI |
| Fuel Tank Capacity | 70L |
Export Supplementary Note
2.47L gasoline engine can be customized for overseas export orders, emission standards reach National III and National V to satisfy import inspection standards of different regions.
