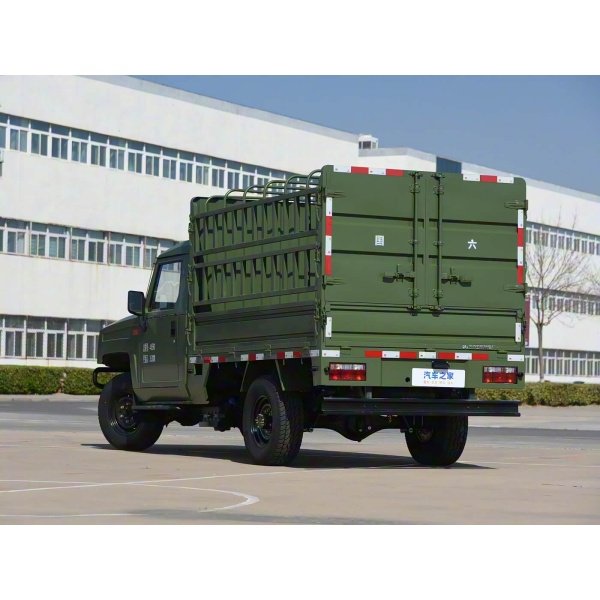

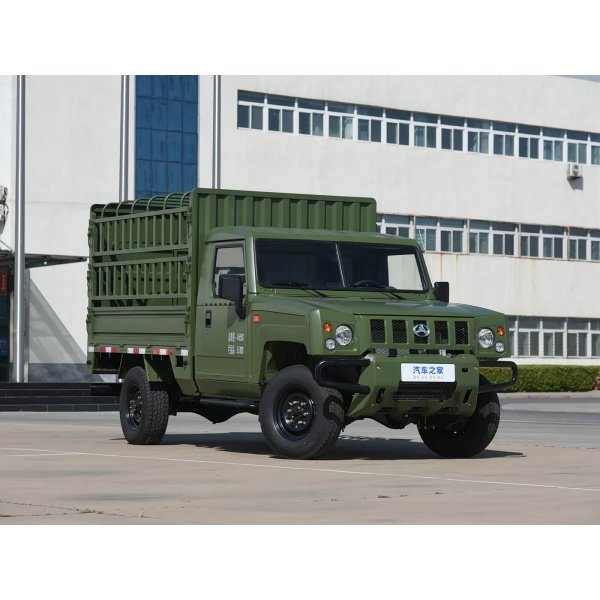

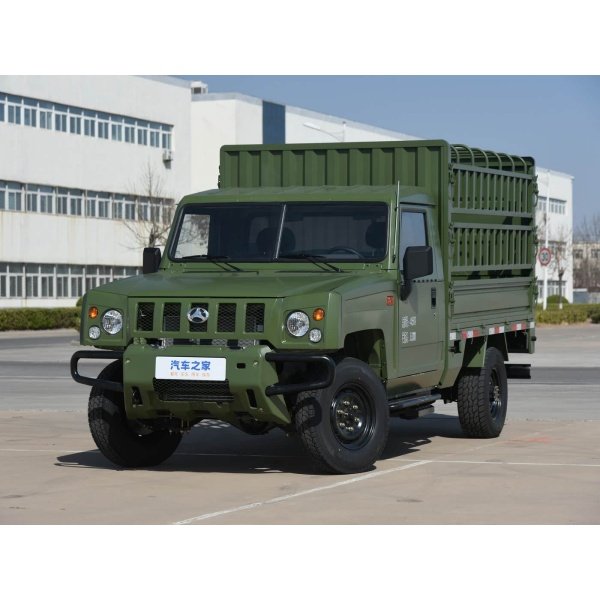

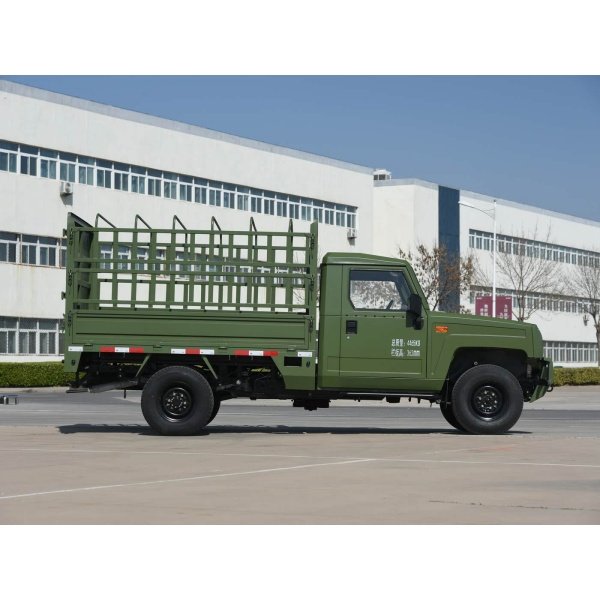

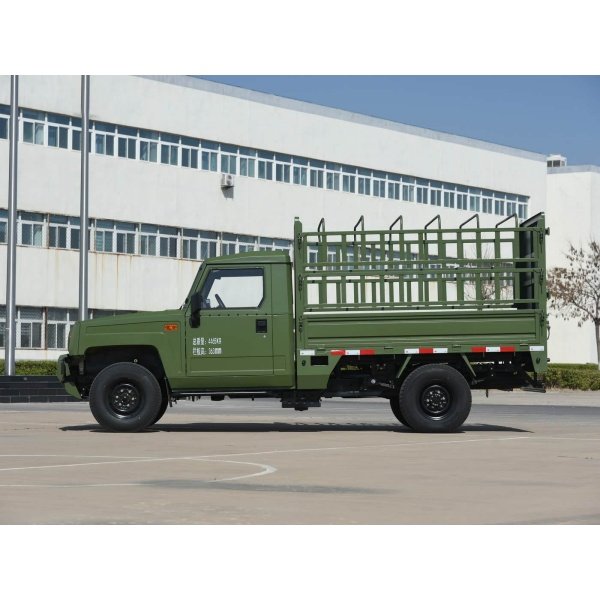

Warrior 4WD Stake Body Cargo Truck | Off-Road Cage Transport Vehicle For Export
Three configurable versions including 3350 single cab, 3695 single cab and 3695 double cab, covering 2-seat and 5-seat layouts to balance passenger transport and cargo carrying needs.
Full metal enclosed stake cage cargo compartment features good ventilation and high visibility, perfectly suitable for transporting agricultural products, livestock and scattered industrial materials.

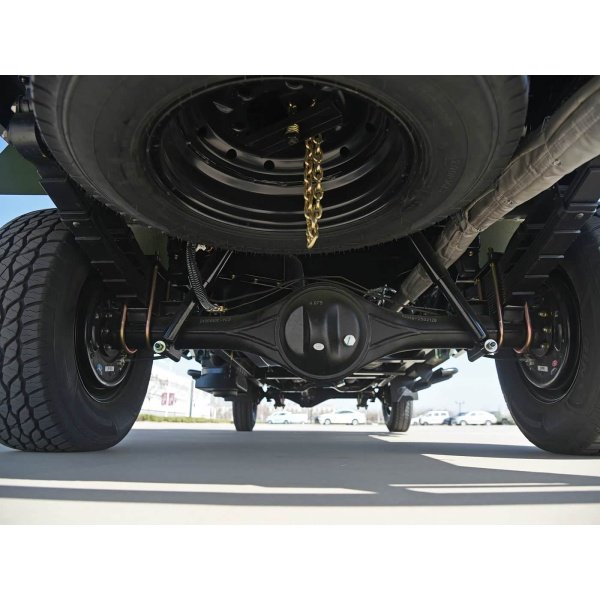

Equipped with part-time four-wheel drive system and reinforced front & rear multi-leaf spring suspension, it delivers excellent load-bearing capacity and off-road performance for mountain, muddy and rural complex road conditions.

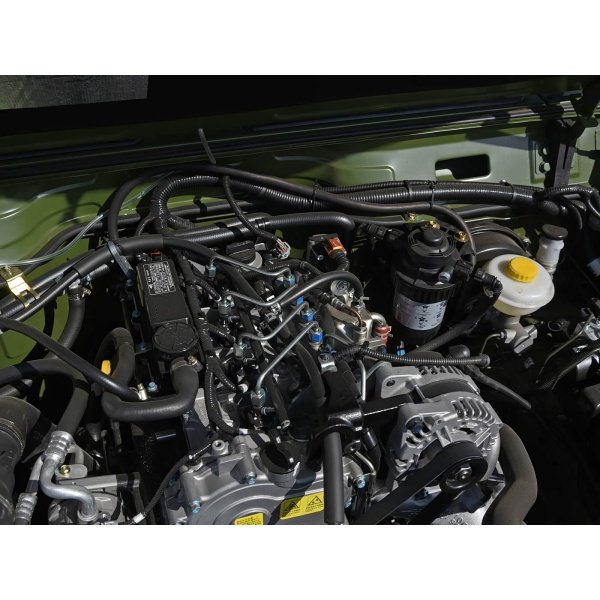

Standard matched Yuchai turbocharged diesel engine; 2.47L gasoline engine is optional for overseas orders, which can meet National III and National V emission standards to match import requirements of various countries.
Matched with manual 5-speed transmission, maximum speed up to 120km/h, 70L large-capacity fuel tank and heavy-duty off-road tires, supporting long-distance cross-border transportation and outdoor field operation.
Main Specification |
| Item | 3350 Single Cab | 3695 Single Cab | 3695 Double Cab | 3695 Double Cab |
Overall Dimension | 5470×1930×1940/2380 mm | 5720×1930×1940/2380 mm | 5870×1850×1950/2380 mm | 5840×1850×2025 mm |
Wheelbase | 3350 mm | 3695 mm | 3695 mm | 3695 mm |
Front/Rear Track | 1540 mm | 1540 mm | 1540 mm | 1540 mm |
| Curb Weight | 2690 kg | 2530 kg | 2420 kg | 2330 kg |
| Gross Weight | 4465 kg | 4465 kg | 4130 kg | 4465 kg |
| Seating Capacity | 2 persons | 2 persons | 5 persons | 5 persons |
| Transmission | Manual 5-speed gearbox | Manual 5-speed gearbox | Manual 5-speed gearbox | Manual 5-speed gearbox |
| Drive Mode | Part-time 4WD | Part-time 4WD | Part-time 4WD | Part-time 4WD |
| Suspension | Front & Rear Leaf Spring (9/8+8) | Front & Rear Leaf Spring (9/8+8) | Front & Rear Leaf Spring (9/8+8) |
|
| Tire Spec | Front:7.00R16LT 12PR; Rear:265/70R16LT 10PR | Front:7.00R16LT 12PR; Rear:265/70R16LT 10PR | Front:7.00R16LT 12PR; Rear:265/70R16LT 10PR | 265/75R16LT 10PR |
Engine Universal Parameters |
Fuel Type | Diesel (2.47L gasoline optional for export) |
Engine Model | YCY24140-60A |
Displacement | 2360 mL |
| Power / Rotate Speed | 103kW/2950r/min |
| Torque / Rotate Speed | 350N·m/1400-2400r/min |
| Air Intake Mode | Turbocharged |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Emission Standard | Euro VI; Export version meets Euro III & V |
| Fuel Tank Volume | 70 L |
| Max Speed | 120 km/h |
Export Remarks
2.47L gasoline engine can be customized for overseas export orders, emission standards reach National III and National V to satisfy import inspection standards of different regions.
