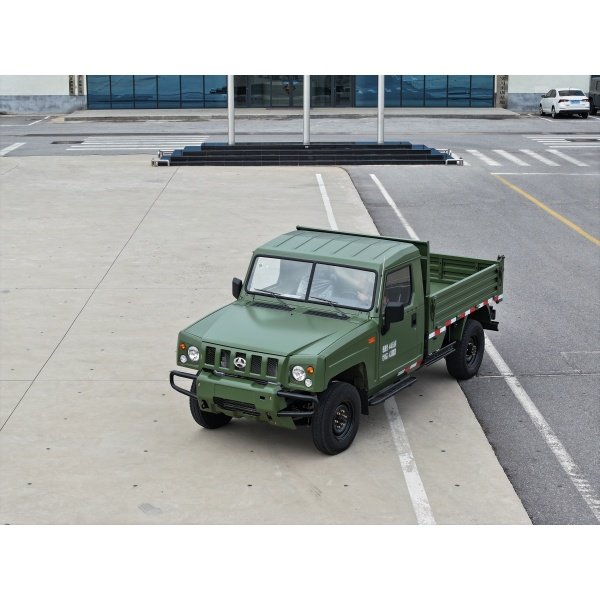

Warrior 4WD Tipper Class II Chassis | Off-Road Dump Bare Chassis For Civil & Export

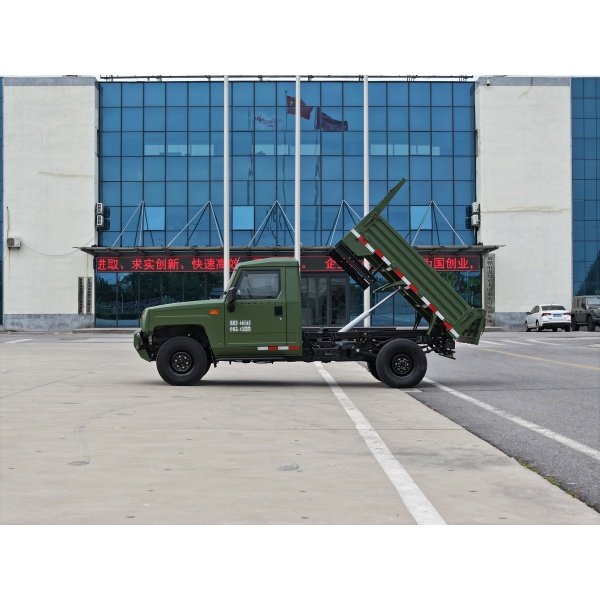

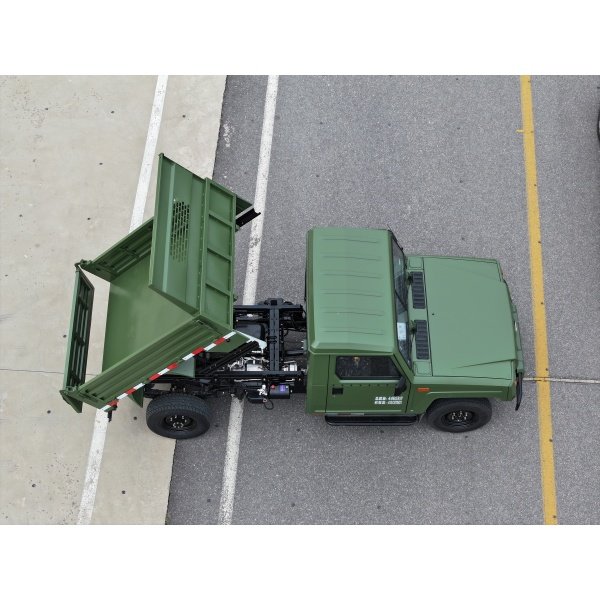

Single cab 2-seat class II bare chassis with pre-reserved hydraulic lifting mounting interface, convenient to install full hydraulic self-unloading cargo box for sand, gravel and farm produce transport.
Adopt part-time four-wheel drive system and reinforced front & rear multi-leaf spring suspension, strong load capacity and all-terrain performance for muddy mountain, farmland and rural construction roads.
Standard Yuchai turbocharged diesel engine with National VI emission; 2.47L gasoline engine optional for overseas orders, meeting National III & V import standards of multiple countries.
Matched with manual 5-speed transmission, max speed up to 120km/h, 70L large fuel tank and heavy-duty off-road tires for long-distance cross-border delivery and field operation.
Compact 3350mm wheelbase design with flexible turning radius, suitable for narrow mountain roads and small-scale construction projects, widely customized into mini dump trucks for domestic and export markets.
Main Specification |
| Overall Dimension | 4925×1940×1965 mm |
| Wheel Base | 3350 mm |
| Wheel Track | 1540 mm |
| Curb Mass | 1980 kg |
| Total Gross Mass | 4465 kg |
| Rated Passengers | 2 persons |
| Transmission | Manual 5-speed gearbox |
| Drive Mode | Part-time 4WD |
| Suspension Type | Front & Rear Leaf Spring (9/8+8 layers) |
| Tire Spec | Front:7.00R16LT 12PR; Rear:265/70R16LT 10PR |
Fuel Type | Diesel (2.47L gasoline optional for export) |
Engine Model | YCY24140-60A |
Displacement | 2360 mL |
| Power / Rotate Speed | 103kW/2950r/min |
| Torque / Rotate Speed | 350N·m/1400-2400r/min |
| Air Intake Mode | Turbocharged |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Emission Standard | Euro VI; Export version meets Euro III & V |
| Fuel Tank Volume | 70 L |
| Max Speed | 120 km/h |
Export Remarks
2.47L gasoline engine can be customized for overseas export orders, emission standards reach National III and National V to satisfy customs inspection requirements of different regions. This chassis is specially developed for mini tipper truck refitting.
