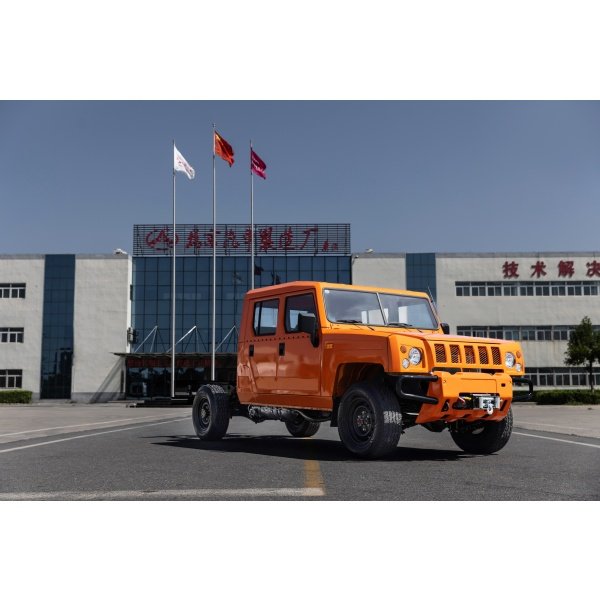

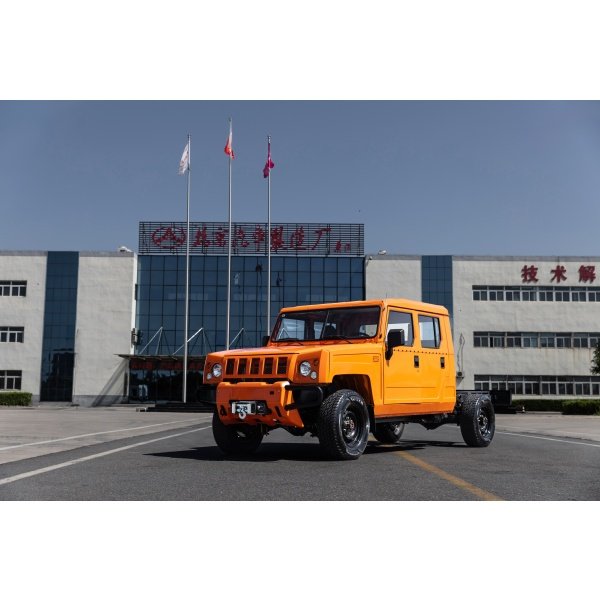

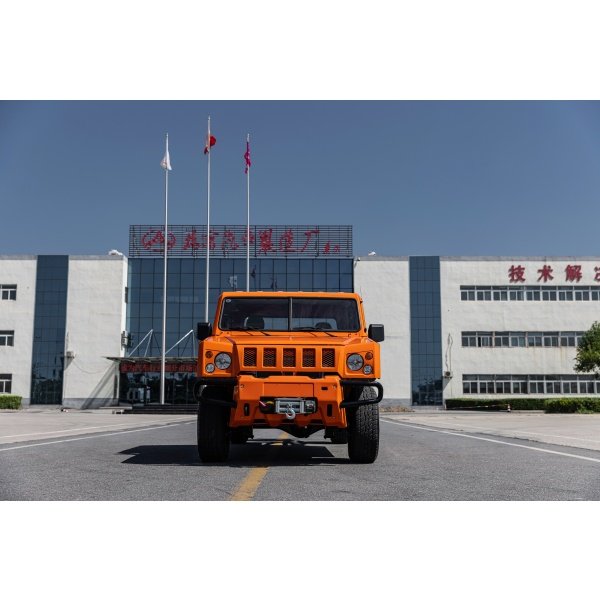

Warrior Double Cab Class II 4WD Chassis For Fire & Emergency Vehicle Modification

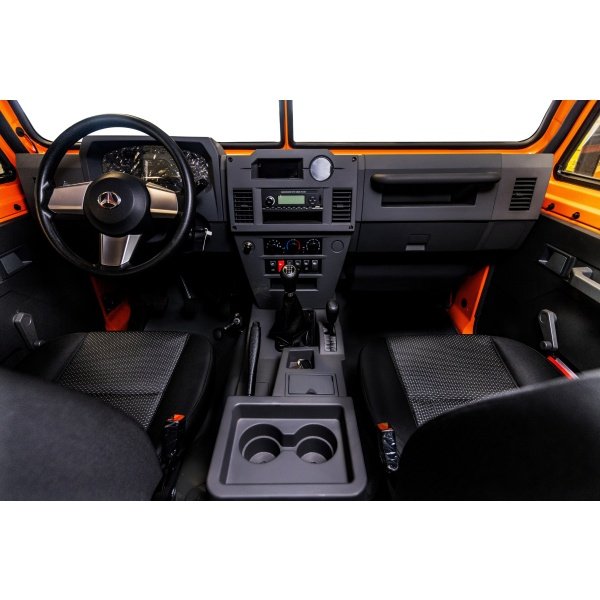

Two wheelbase configurations (3350mm & 3695mm) available, double cab layout with 2+3 five-passenger seating to meet multi-person emergency operation demands.

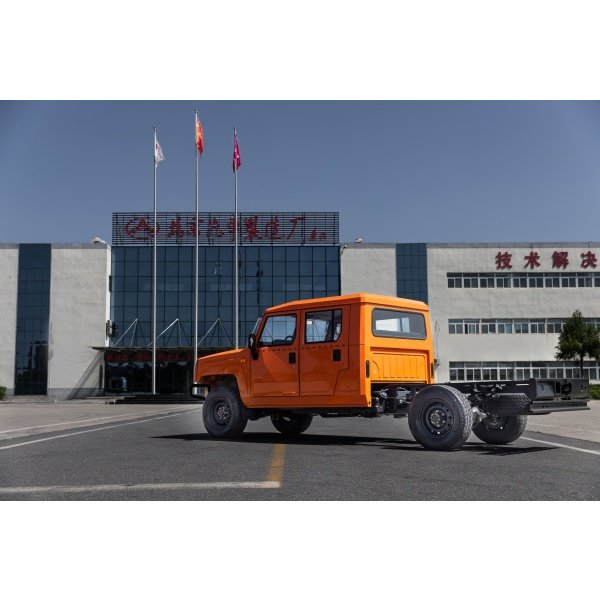

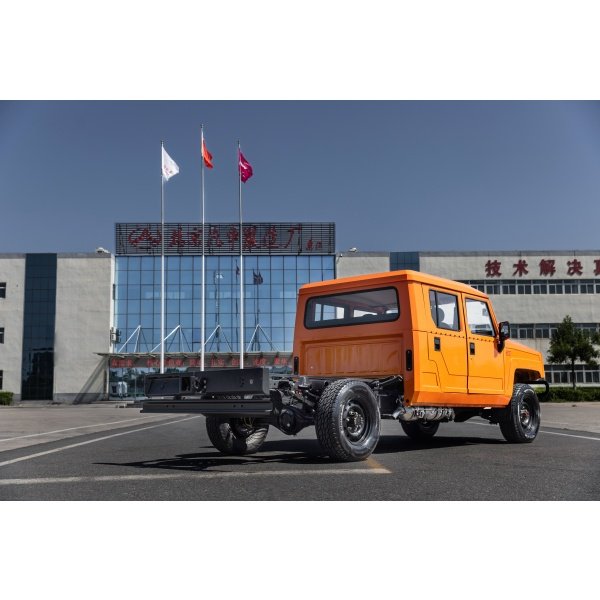

Class II bare chassis without cargo compartment, complete reserved mounting holes and interfaces, convenient for installing fire pumps, communication cabinets, rescue equipment and other customized superstructures.
Equipped with part-time four-wheel drive system and reinforced front & rear leaf spring suspension, excellent load capacity and all-terrain performance for mountain, muddy and wild disaster sites.
Standard Yuchai turbocharged diesel engine with two power versions, complying with National VI emission standard, stable high torque output to support full-load special equipment operation.
Matched with manual 5-speed transmission, maximum speed up to 120km/h, 70L large fuel tank and multi-spec heavy-duty off-road tires, reliable for long-distance cross-country emergency patrol missions.
Products
Warrior Double Cab Class II 4WD Chassis For Fire & Emergency Vehicle Modification
Two wheelbase configurations (3350mm & 3695mm) available, double cab layout with 2+3 five-passenger seating to meet multi-person emergency operation demands.
Class II bare chassis without cargo compartment, complete reserved mounting holes and interfaces, convenient for installing fire pumps, communication cabinets, rescue equipment and other customized superstructures.
Equipped with part-time four-wheel drive system and reinforced front & rear leaf spring suspension, excellent load capacity and all-terrain performance for mountain, muddy and wild disaster sites.
Standard Yuchai turbocharged diesel engine with two power versions, complying with National VI emission standard, stable high torque output to support full-load special equipment operation.
Matched with manual 5-speed transmission, maximum speed up to 120km/h, 70L large fuel tank and multi-spec heavy-duty off-road tires, reliable for long-distance cross-country emergency patrol missions.
Main Specification |
| Item | Model BAW2043HMS53D | Model BAW2043HMS61D |
Overall Dimension | 5250×1850×1955 mm | 5625×1850×1970 mm |
Wheelbase | 3350 mm | 3695 mm |
Front/Rear Track | 1540 mm | 1540 mm |
| Curb Weight | 2050 kg | 2200 kg |
| Gross Weight | 4465 kg | 4465 kg |

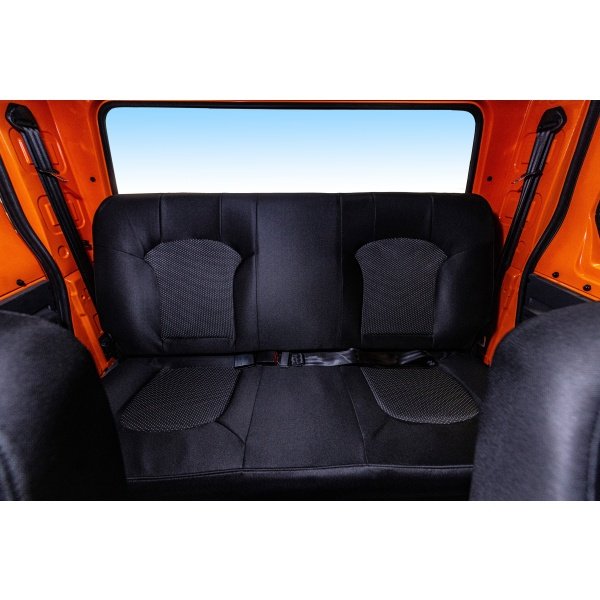

| Seating Capacity | 2+3 persons (5 seats total) | 2+3 persons (5 seats total) |
| Transmission | Manual 5-speed gearbox | Manual 5-speed gearbox |
| Drive Mode | Part-time 4WD | Part-time 4WD |
| Suspension | Front & Rear Leaf Spring (9/8+8); Front single auxiliary spring (-/3) | Front & Rear Leaf Spring (9/8+8); Front single auxiliary spring (-/3) |
| Tire Spec | Front:7.00R16LT 12PR ;Rear:265/70R16LT 10PR | Front:265/70R16LT 10PR / 8PR; Rear:7.00R16LT 12PR / 265/70R16LT 10PR |
Engine Universal Parameters |
Fuel Type | Diesel |
Engine Model | YCY24140-60A / YCY24165-66 |
Displacement | 2360 mL |
| Power / Rotate Speed | 103kW/2950r/min; 120kW/3000r/min |
| Torque / Rotate Speed | 350N·m/1400-2400r/min; 400N·m/1400-2900r/min |
| Air Intake Mode | Turbocharged |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Emission Standard | Euro VI |
| Fuel Tank Volume | 70 L |
| Max Speed | 120 km/h |
Application Supplementary Note
This double cab bare chassis is specially supplied to modification manufacturers, widely used for forest fire patrol vehicles, fire rescue command vehicles, emergency communication vehicles and municipal multi-functional service vehicles.
