​​This KA-certified explosion-proof underground mine safety vehicle is equipped with an Isuzu turbocharged diesel engine and part-time four-wheel drive system, adopting hydraulic wet brake to meet underground mine explosion-proof safety standards.

Products

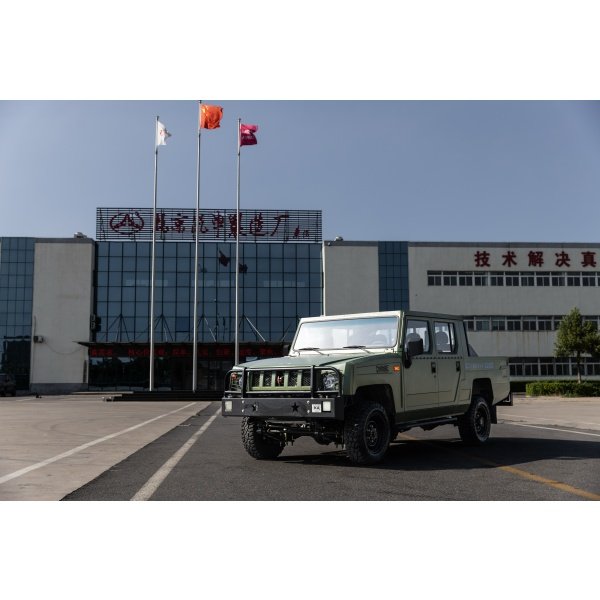

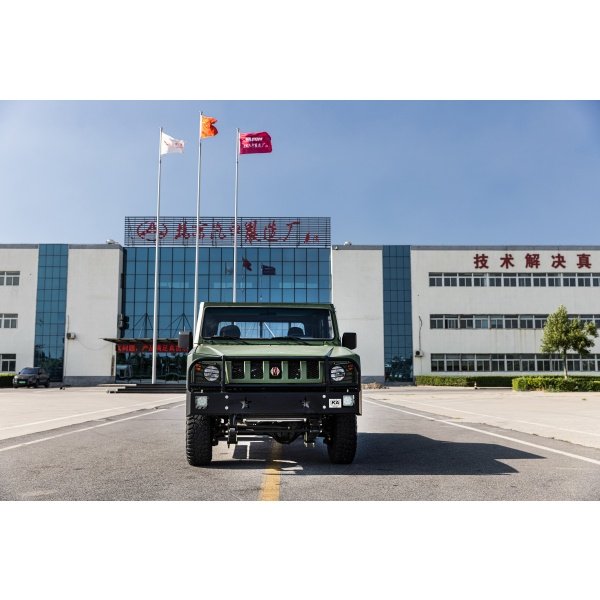

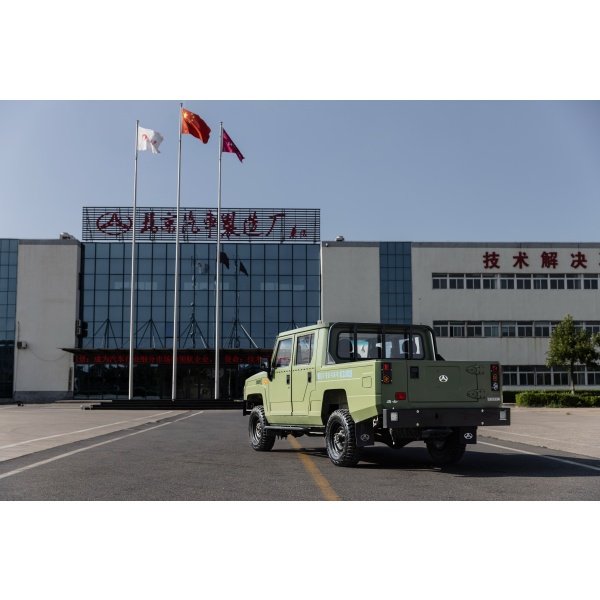

Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle
Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle

Warrior Series Double-row Mining Material Transport Truck FL-0.5(A)/(C)/(E) KA-certified Explosion-proof Underground Mine Safety Vehicle

    This KA-certified explosion-proof underground mine safety vehicle is equipped with an Isuzu turbocharged diesel engine and part-time four-wheel drive system, adopting hydraulic wet brake to meet underground mine explosion-proof safety standards.

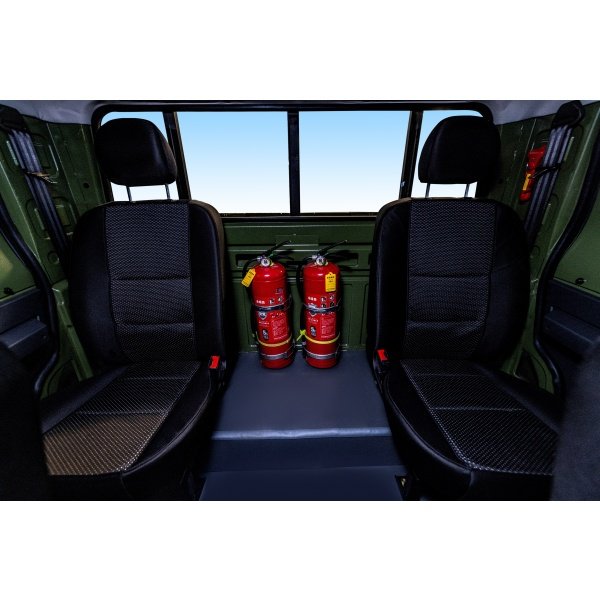

    This 4-seat double-row mining material truck realizes passenger and cargo integrated transportation, widely used for transporting mining workers, maintenance tools and bulk materials in coal mines and metal mines, with customizable configurations available.

Main Specification

Overall Dimensions

5010mm(L) × 1950mm(W) × 2090mm(H)

Wheelbase

3035 mm

Front/Rear Track

1540 mm

Number of Doors

4

Seating Capacity

4 seats

Fuel Tank Capacity

75 L

Curb Mass

2480 / 2800 kg

Gross Vehicle Mass

2980 / 3300 kg

Maximum Gradeability

14°

Maximum Traction Force

≥20 kN
Minimum Turning Radius (Outer Edge)8.1 m
Minimum Ground Clearance210 mm
Tire SpecificationLT265/70R17
Engine Model4KH1-TCF40
Engine ManufacturerISUZU (China) Engine Co., Ltd.
Displacement2999 mL
Intake ModeTurbocharged
Transmission3-speed Manual + 1-speed Automatic
Rated Power/Speed95kW/2900r/min
Max. Torque/Speed320Nm/1700-2800r/min
Fuel TypeDiesel
4WD ModePart-time Four-wheel Drive
Front/Rear SuspensionLeaf Spring Non-independent Suspension
Steering SystemHydraulic Power Steering
Front/Rear Brake TypeHydraulic Wet Brake
Parking Brake TypeSpring Brake with Hydraulic Release
Note: Other configurations can be CUSTOMIZED according to customer requirements.
