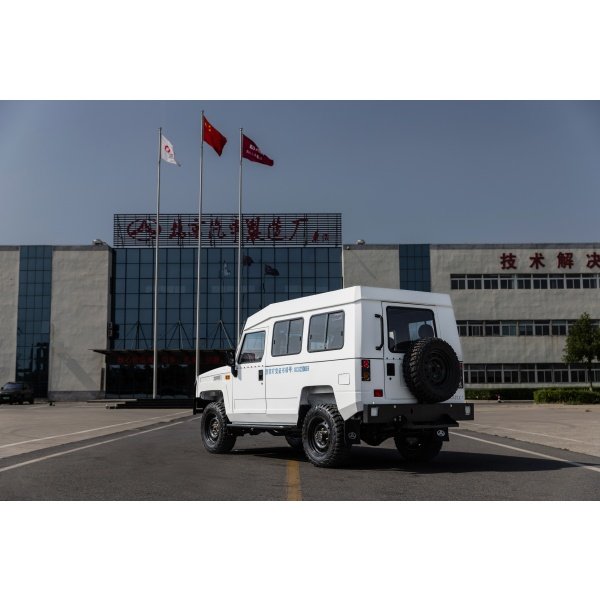

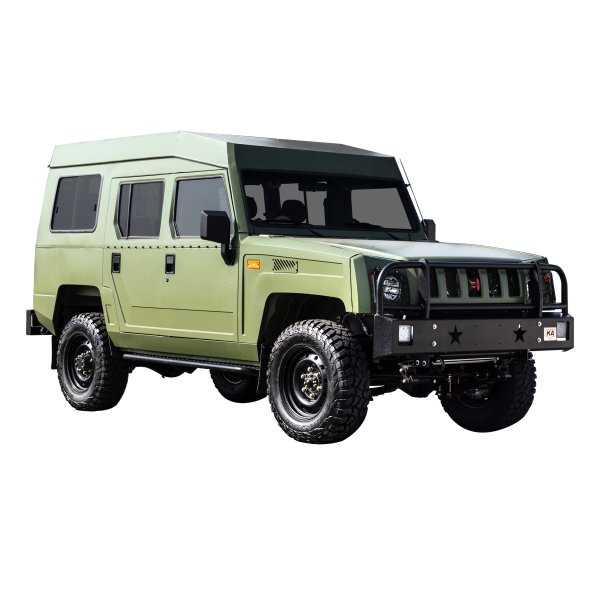

Warrior Series Four-door Five-seat Mining Personnel Carrier
This KA-certified explosion-proof underground mine safety vehicle adopts an Isuzu turbocharged diesel engine and part-time four-wheel drive structure, equipped with a hydraulic wet brake system to meet underground safety standards. It is mainly used for staff transportation and safety patrol in coal and metal mines, and all configurations can be customized to fit diverse high-risk mining transport demands.
Products
Warrior Series Four-door Five-seat Mining Personnel CarrierThis KA-certified explosion-proof underground mine safety vehicle adopts an Isuzu turbocharged diesel engine and part-time four-wheel drive structure, equipped with a hydraulic wet brake system to meet underground safety standards. It is mainly used for staff transportation and safety patrol in coal and metal mines, and all configurations can be customized to fit diverse high-risk mining transport demands.
KA Certified Explosion-Proof Safety Design
Wet hydraulic braking, explosion-proof electrical components, intrinsically safe modification, compliant with underground mine safety access standards.
Reliable ISUZU Power Assembly
Turbocharged diesel engine features low fuel consumption, stable performance and convenient global spare parts procurement, reducing later maintenance costs.
Strong Off-Road Trafficability
Part-time four-wheel drive, high ground clearance and large traction force ensure stable driving on muddy, steep and narrow mine roads.

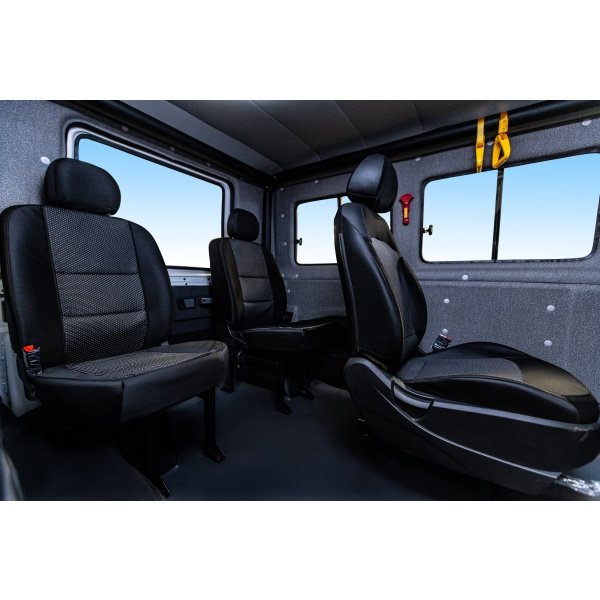

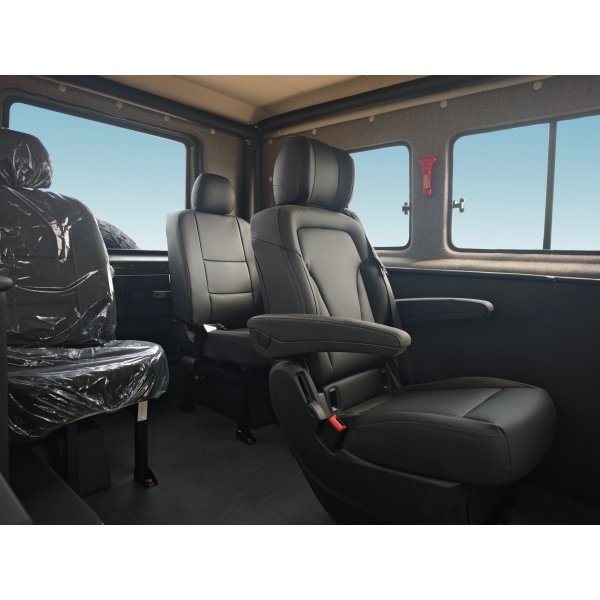

Comfortable 5-seat Cabin Layout
Four-door passenger layout, reasonable interior space, suitable for daily underground worker transportation and safety inspection missions.
Main Specification | |
Overall Dimensions | ≤ 4570mm(L) × 1925mm(W) × 2180mm(H) |
Wheelbase | 2800 mm |
Front/Rear Track | 1540 mm |
Number of Doors | 4 |
Seating Capacity | 5 seats |
Fuel Tank Capacity | 45 L |
Curb Mass | 2340 / 2860 kg |
Gross Vehicle Mass | 3340 / 3600 kg |
Maximum Gradeability | 14° |
Maximum Traction Force | ≥20 kN |
| Minimum Turning Radius (Outer Edge) | 7.55 m |
| Minimum Ground Clearance | 240 mm |
| Tire Specification | LT265/70R17 |
| Engine Model | 4KH1-TCF40 |
| Engine Manufacturer | ISUZU (China) Engine Co., Ltd. |
| Displacement | 2999 mL |
| Intake Mode | Turbocharged |
| Transmission | 3-speed Manual + 1-speed Automatic |
| Rated Power/Speed | 95kW/2900r/min |
| Max. Torque/Speed | 320Nm/1700-2800r/min |
| Fuel Type | Diesel |
| 4WD Mode | Part-time Four-wheel Drive |
| Front/Rear Suspension | Leaf Spring Non-independent Suspension |
| Steering System | Hydraulic Power Steering |
| Front/Rear Brake Type | Hydraulic Wet Brake |
| Parking Brake Type | Spring Brake with Hydraulic Release |
| Note: Other configurations can be CUSTOMIZED according to customer requirements. | |
