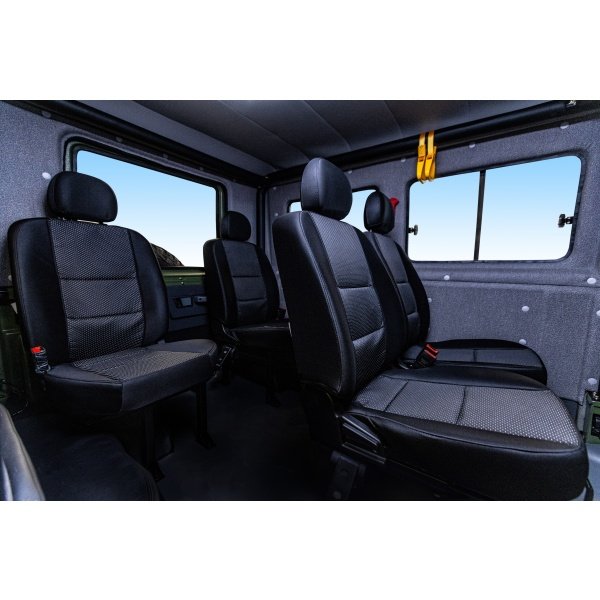

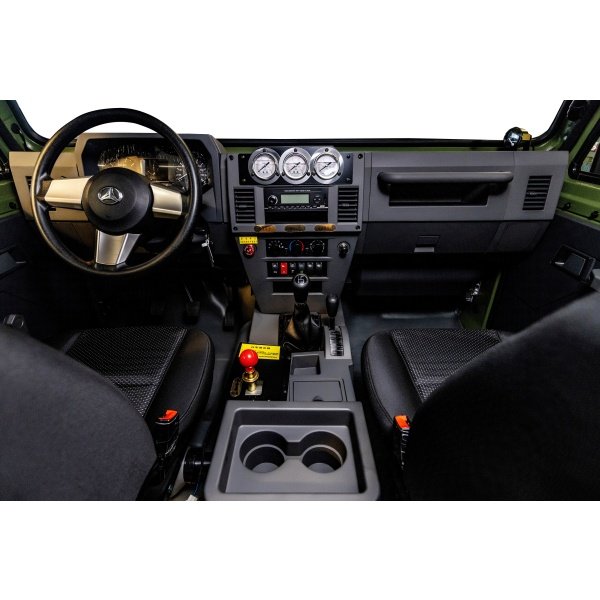

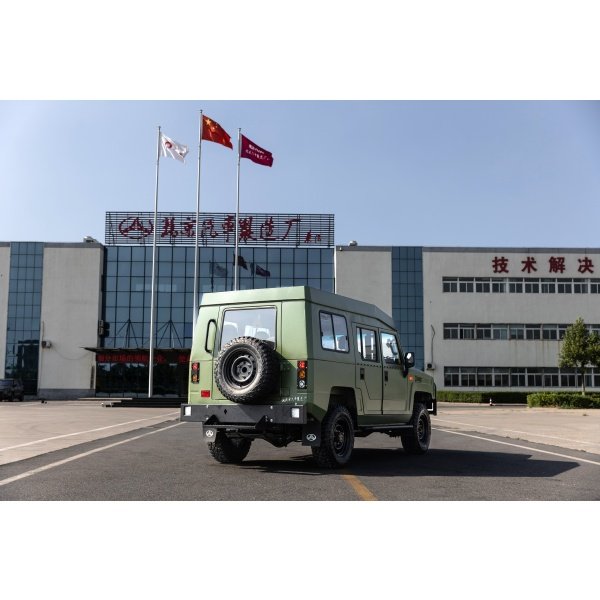

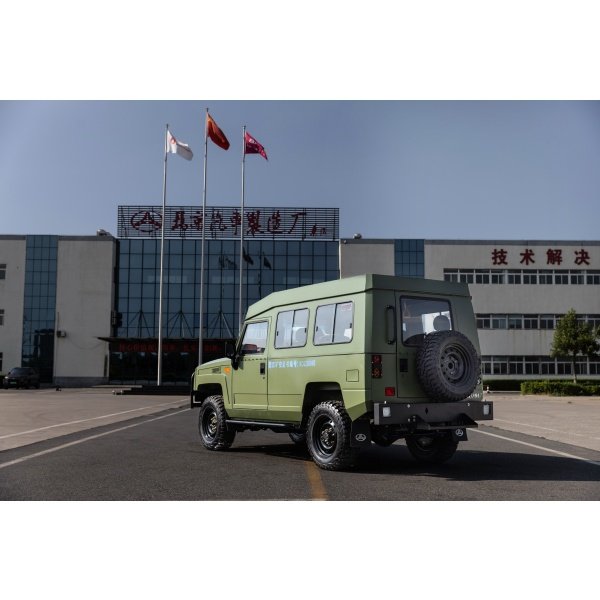

Warrior Series Four-door Six-seat Mining Personnel Carrier
Warrior Series Four-door Six-seat Mining Personnel Carrier, the KA-certified explosion-proof underground mine safety vehicle is equipped with an Isuzu turbocharged diesel engine and part-time four-wheel drive, fitted with a reliable hydraulic wet brake system to meet underground mining safety standards. This 6-seat mining personnel carrier is widely used for staff transportation and safety patrol in coal mines and metal mines, with all configurations available for customized production.
Products
Warrior Series Four-door Six-seat Mining Personnel CarrierWarrior Series Four-door Six-seat Mining Personnel Carrier, the KA-certified explosion-proof underground mine safety vehicle is equipped with an Isuzu turbocharged diesel engine and part-time four-wheel drive, fitted with a reliable hydraulic wet brake system to meet underground mining safety standards. This 6-seat mining personnel carrier is widely used for staff transportation and safety patrol in coal mines and metal mines, with all configurations available for customized production.
Main Specification | |
Overall Dimensions | ≤ 4570mm(L) × 1925mm(W) × 2180mm(H) |
Wheelbase | 2800 mm |
Front/Rear Track | 1540 mm |
Number of Doors | 4 |
Seating Capacity | 6 seats |
Fuel Tank Capacity | 45 L |
Curb Mass | 2600 / 2800 kg |
Gross Vehicle Mass | 3600 / 3860 kg |
Maximum Gradeability | 14° |
Maximum Traction Force | ≥20 kN |
| Minimum Turning Radius (Outer Edge) | 7.55 m |
| Minimum Ground Clearance | 240 mm |
| Tire Specification | LT265/70R17 |
| Engine Model | 4KH1-TCF40 |
| Engine Manufacturer | ISUZU (China) Engine Co., Ltd. |
| Displacement | 2999 mL |
| Intake Mode | Turbocharged |
| Transmission | 3-speed Manual + 1-speed Automatic |
| Rated Power/Speed | 95kW/2900r/min |
| Max. Torque/Speed | 320Nm/1700-2800r/min |
| Fuel Type | Diesel |
| 4WD Mode | Part-time Four-wheel Drive |
| Front/Rear Suspension | Leaf Spring Non-independent Suspension |
| Steering System | Hydraulic Power Steering |
| Front/Rear Brake Type | Hydraulic Wet Brake |
| Parking Brake Type | Spring Brake with Hydraulic Release |
| Note: Other configurations can be CUSTOMIZED according to customer requirements. | |
