Warrior FL-1.5(D) Single-row Mining Material Truck|KA Certified Underground Mine Transport Vehicle

Products

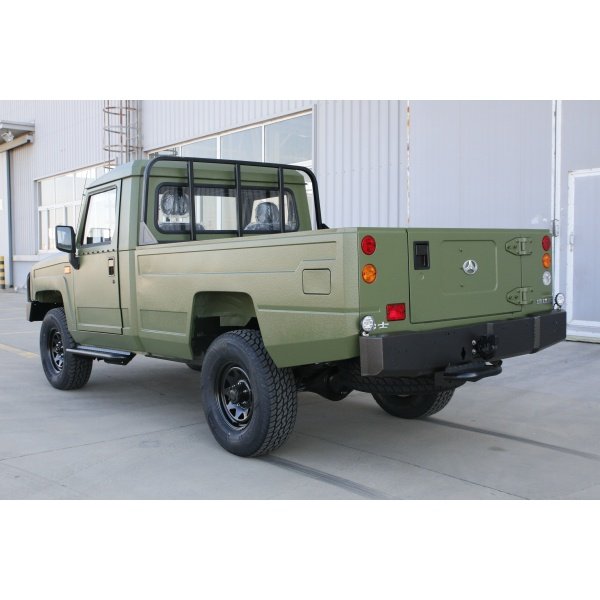

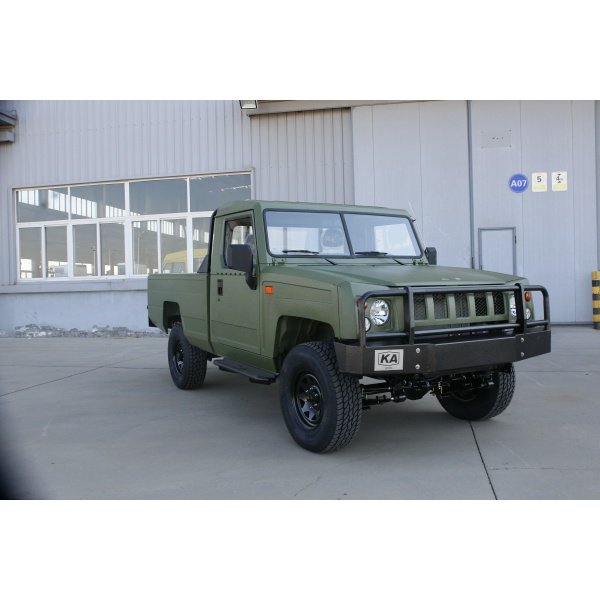

Warrior Series Single-row Mining Material Transport Truck FL-1.5(D) KA-certified Explosion-proof Underground Mine Safety Vehicle

This KA-certified explosion-proof underground mine safety vehicle is equipped with an Isuzu turbocharged diesel engine and part-time four-wheel drive system, fitted with hydraulic wet brake to meet underground mine explosion-proof safety standards.

This 2-seat single-row mining material truck is mainly used for transporting mining tools, spare parts and various bulk materials in underground coal and metal mines, and all configurations can be customized according to site requirements.

Liorah

13780658694

+86 13780658694

liorah@charymachinery.com

Inquiry List Add To Inquire Vehicle

Main Specification
Overall Dimensions	5110mm(L) × 1920mm(W) × 1970mm(H)
Wheelbase	3035 mm
Front/Rear Track	1540 mm
Number of Doors	2
Seating Capacity	2 seats
Fuel Tank Capacity	75 L
Curb Mass	2260 kg
Gross Vehicle Mass	3760 kg
Maximum Gradeability	14°
Maximum Traction Force	≥15 kN
Minimum Turning Radius (Outer Edge)	7.8 m
Minimum Ground Clearance	210 mm
Tire Specification	LT265/70R17
Engine Model	4KH1-TCF40
Engine Manufacturer	ISUZU (China) Engine Co., Ltd.
Displacement	2999 mL
Intake Mode	Turbocharged
Transmission	3-speed Manual
Rated Power/Speed	95kW/2900r/min
Max. Torque/Speed	320Nm/1700-2800r/min
Fuel Type	Diesel
4WD Mode	Part-time Four-wheel Drive
Front/Rear Suspension	Leaf Spring Non-independent Suspension
Steering System	Hydraulic Power Steering
Front/Rear Brake Type	Hydraulic Wet Brake
Parking Brake Type	Spring Brake with Hydraulic Release
Note: Other configurations can be CUSTOMIZED according to customer requirements.
