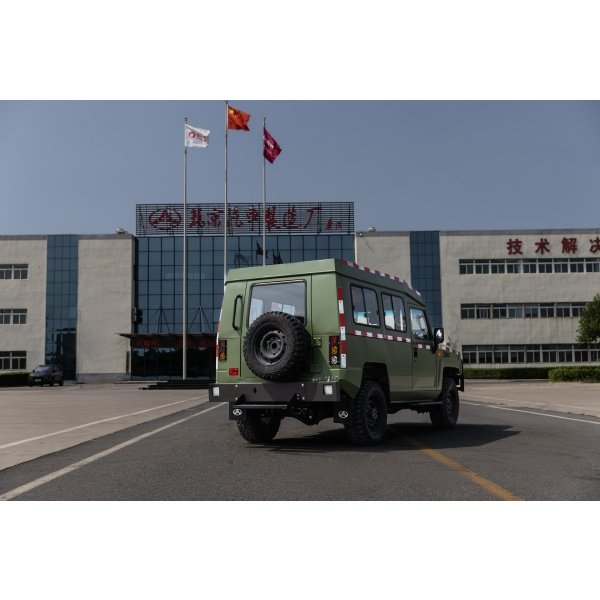

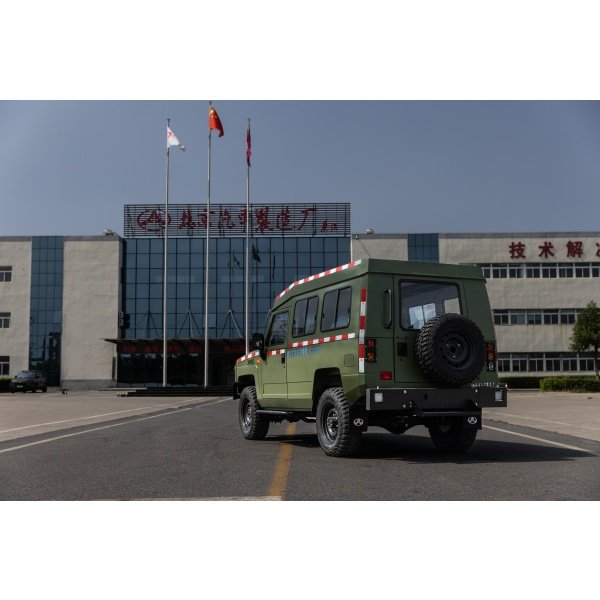

Warrior Series Three-door Nine-seat Mining Personnel Carrier
This KA-certified explosion-proof underground mine safety vehicle adopts an Isuzu turbocharged diesel engine and part-time four-wheel drive system, equipped with hydraulic wet brake to meet underground explosion-proof safety standards. As a 9-seat large-capacity mining passenger vehicle, it is widely used for batch staff transportation and mine safety patrol in coal mines and metal mines, and all vehicle configurations support customized adjustment.
Products
Warrior Series Three-door Nine-seat Mining Personnel CarrierThis KA-certified explosion-proof underground mine safety vehicle adopts an Isuzu turbocharged diesel engine and part-time four-wheel drive system, equipped with hydraulic wet brake to meet underground explosion-proof safety standards. As a 9-seat large-capacity mining passenger vehicle, it is widely used for batch staff transportation and mine safety patrol in coal mines and metal mines, and all vehicle configurations support customized adjustment.
Main Specification | |
Overall Dimensions | ≤ 4570mm(L) × 1925mm(W) × 2180mm(H) |
Wheelbase | 2800 mm |
Front/Rear Track | 1540 mm |
Number of Doors | 3 |

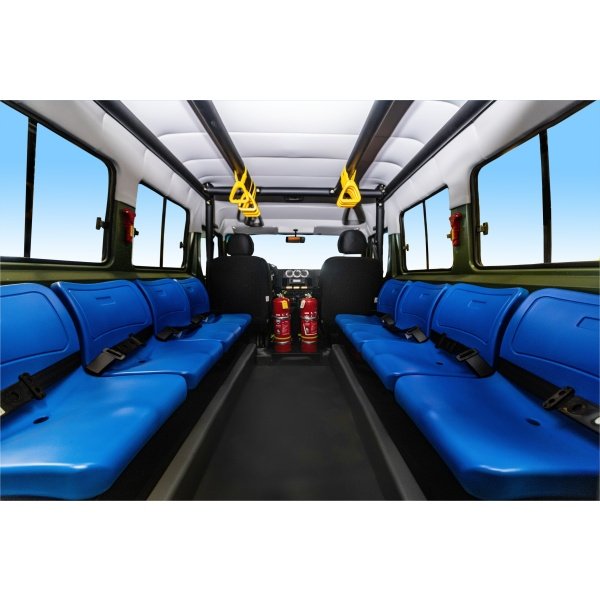

Seating Capacity | 9 seats |
Fuel Tank Capacity | 45 L |
Curb Mass | 2340 / 2860 kg |
Gross Vehicle Mass | 3340 / 3860 kg |
Maximum Gradeability | 14° |
Maximum Traction Force | ≥20 kN |
| Minimum Turning Radius (Outer Edge) | 8.2 m |
| Minimum Ground Clearance | 240 mm |
| Tire Specification | LT265/70R17 |
| Engine Model | 4KH1-TCF40 |
| Engine Manufacturer | ISUZU (China) Engine Co., Ltd. |
| Displacement | 2999 mL |
| Intake Mode | Turbocharged |
| Transmission | 3-speed Manual + 1-speed Automatic |
| Rated Power/Speed | 95kW/2900r/min |
| Max. Torque/Speed | 320Nm/1700-2800r/min |
| Fuel Type | Diesel |
| 4WD Mode | Part-time Four-wheel Drive |
| Front/Rear Suspension | Leaf Spring Non-independent Suspension |
| Steering System | Hydraulic Power Steering |
| Front/Rear Brake Type | Hydraulic Wet Brake |
| Parking Brake Type | Spring Brake with Hydraulic Release |
| Note: Other configurations can be CUSTOMIZED according to customer requirements. | |
