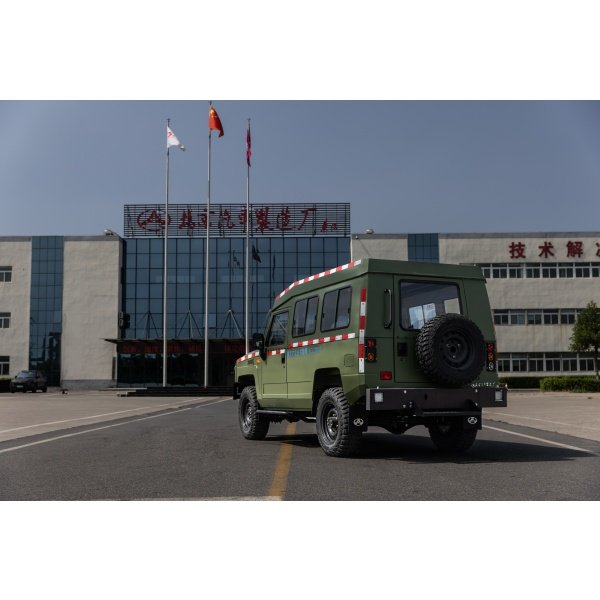

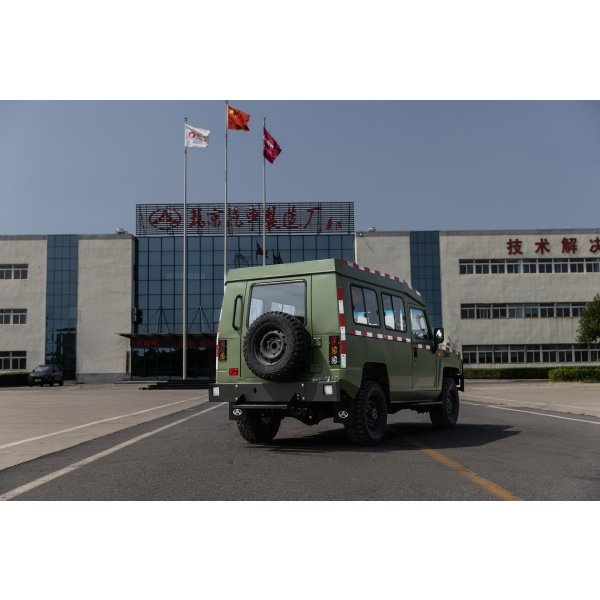

Warrior Series Three-door Ten-seat Mining Personnel Carrier

This KA-certified explosion-proof underground mine safety vehicle is equipped with an Isuzu turbocharged diesel engine and part-time four-wheel drive, adopting hydraulic wet brake to meet underground mine explosion safety requirements. Designed as a 10-seat high-capacity mining passenger vehicle, it is widely used for centralized staff transportation and daily safety patrol in coal mines and metal mines, with flexible customized configurations available.

Liorah

13780658694

+8613780658694

liorah@charymachinery.com

Inquiry List Add To Inquire Vehicle

Main Specification
Overall Dimensions	≤ 4570mm(L) × 1925mm(W) × 2180mm(H)
Wheelbase	2800 mm
Front/Rear Track	1540 mm
Number of Doors	3
Seating Capacity	10 seats
Fuel Tank Capacity	45 L
Curb Mass	2340 / 2860 kg
Gross Vehicle Mass	3340 / 3600 kg
Maximum Gradeability	14°
Maximum Traction Force	≥20 kN
Minimum Turning Radius (Outer Edge)	8.2 m
Minimum Ground Clearance	240 mm
Tire Specification	LT265/70R17
Engine Model	4KH1-TCF40
Engine Manufacturer	ISUZU (China) Engine Co., Ltd.
Displacement	2999 mL
Intake Mode	Turbocharged
Transmission	3-speed Manual + 1-speed Automatic
Rated Power/Speed	95kW/2900r/min
Max. Torque/Speed	320Nm/1700-2800r/min
Fuel Type	Diesel
4WD Mode	Part-time Four-wheel Drive
Front/Rear Suspension	Leaf Spring Non-independent Suspension
Steering System	Hydraulic Power Steering
Front/Rear Brake Type	Hydraulic Wet Brake
Parking Brake Type	Spring Brake with Hydraulic Release
Note: Other configurations can be CUSTOMIZED according to customer requirements.
