Warrior Single Cab Class II 4WD Chassis Truck For Fire & Special Vehicle Modification
Three wheelbase chassis models (3035/3695/3350mm) available, flexible frame layout to meet different upfitting demands of fire trucks, rescue vehicles and municipal service vehicles.
Single cab 2-passenger layout, bare class II chassis design without cargo body, reserved complete mounting interface for customized special equipment superstructure installation.
Part-time four-wheel drive system with two leaf spring suspension configurations, strong load-bearing and all-terrain performance to adapt mountain, muddy and wild field operation environments.
Standard Yuchai turbocharged diesel engine with two power tuning versions, Euro VI emission standard, stable torque output to support heavy-duty special equipment operation.
Matched with manual 5-speed transmission, max speed 120km/h, 70L fuel tank and multi-spec heavy off-road tires, reliable long-distance field driving for disaster emergency missions.
Products

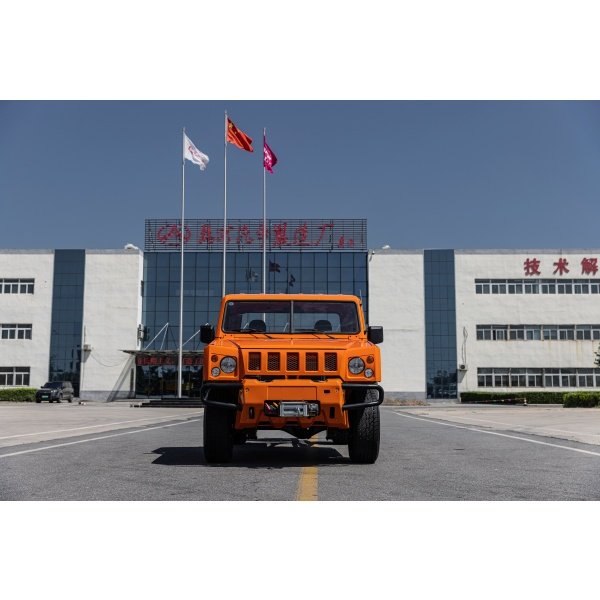

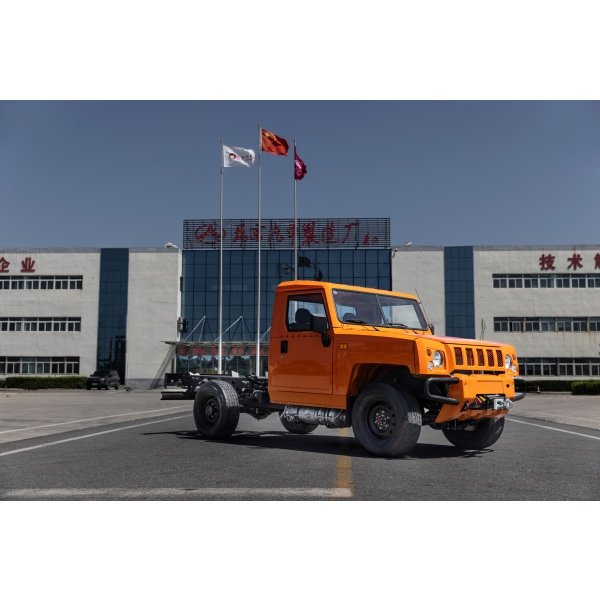

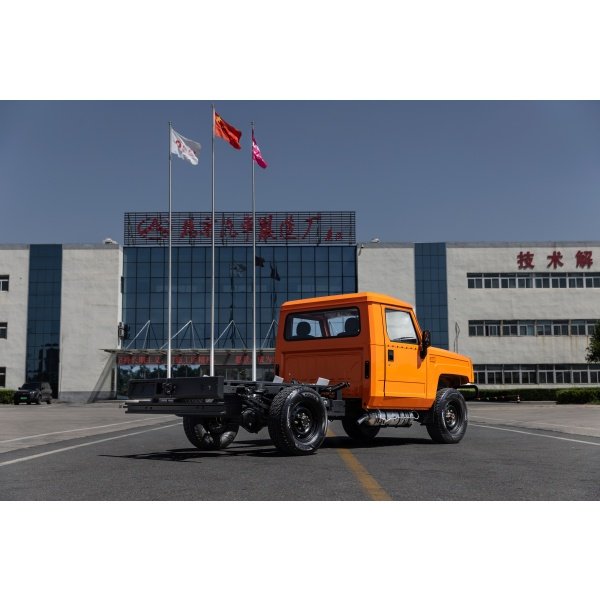

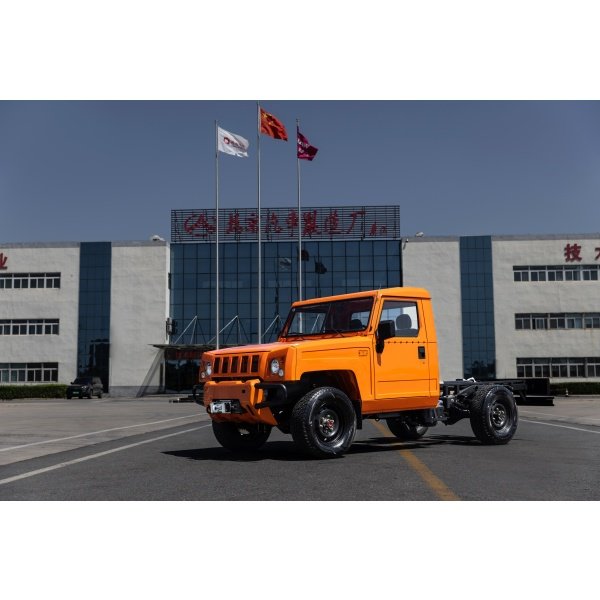

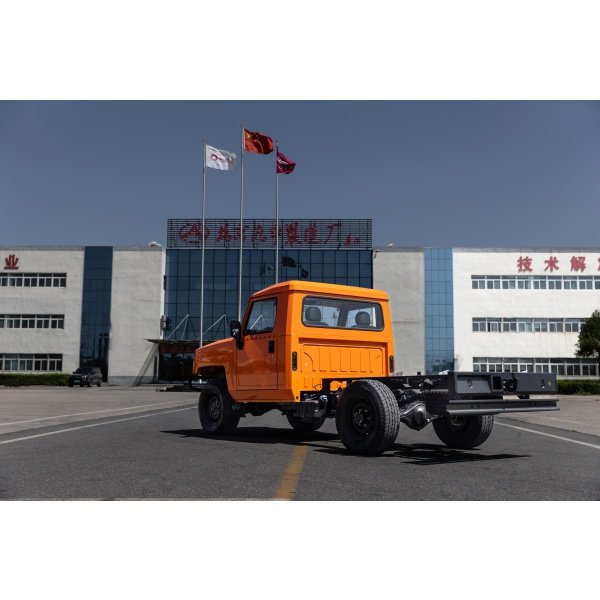

Warrior Single Cab Class II 4WD Chassis Truck For Fire & Special Vehicle Modification
Three wheelbase chassis models (3035/3695/3350mm) available, flexible frame layout to meet different upfitting demands of fire trucks, rescue vehicles and municipal service vehicles.

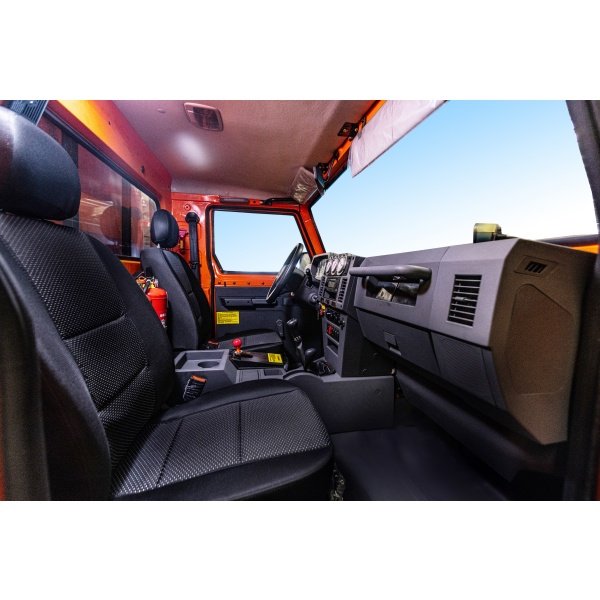

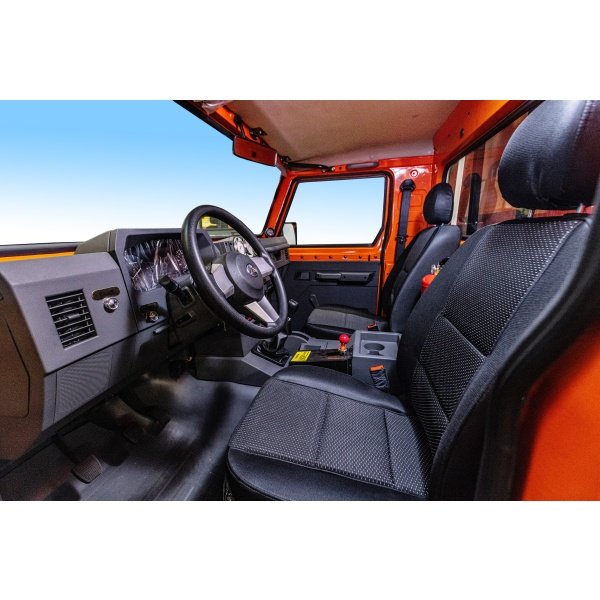

Single cab 2-passenger layout, bare class II chassis design without cargo body, reserved complete mounting interface for customized special equipment superstructure installation.
Part-time four-wheel drive system with two leaf spring suspension configurations, strong load-bearing and all-terrain performance to adapt mountain, muddy and wild field operation environments.
Standard Yuchai turbocharged diesel engine with two power tuning versions, Euro VI emission standard, stable torque output to support heavy-duty special equipment operation.
Matched with manual 5-speed transmission, max speed 120km/h, 70L fuel tank and multi-spec heavy off-road tires, reliable long-distance field driving for disaster emergency missions.
Main Specification |
| Item | Model BAW2043HHS42D | Model BAW2043HHS61D | Model BAW2043HHR51D |
Overall Dimension | 4890×1830×1950 mm | 5785×1830×1950 mm | 5410/5350×1940×2105/1955 mm |
Wheelbase | 3035 mm | 3695 mm | 3350 mm |
Front/Rear Track | 1540 mm | 1540 mm | 1540 mm |
| Curb Weight | 1850 / 1990 kg | 2050 kg | 1980 kg |
| Gross Weight | 4465 kg | 3955 kg | 4465 kg |
| Seating Capacity | 2 persons | 2 persons | 2 persons |
| Transmission | Manual 5-speed gearbox | Manual 5-speed gearbox | Manual 5-speed gearbox |
| Drive Mode | Part-time 4WD | Part-time 4WD | Part-time 4WD |
| Suspension Type | Front & Rear Leaf Spring (9/8+8); Front single rear auxiliary spring (-/3) | Front single rear leaf spring (-/8) | Front & Rear Leaf Spring (9/8+8); Front single rear auxiliary spring (-/3) |
| Tire Spec | Front:265/70R16LT 10PR; Rear:7.00R16LT 12PR | Front:265/70R16LT 8PR; Rear:7.00R16LT 12PR | Front:7.00R16LT 12PR; Rear:265/70R16LT 10PR |
Engine Universal Parameters |
Fuel Type | Diesel |
Engine Model | YCY24140-60A / YCY24165-66 |
Displacement | 2360 mL |
| Power / Rotate Speed | 103kW/2950r/min; 120kW/3000r/min |
| Torque / Rotate Speed | 350N·m/1400-2400r/min; 400N·m/1400-2900r/min |
| Air Intake Mode | Turbocharged |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Emission Standard | Euro VI |
| Fuel Tank Volume | 70 L |
| Max Speed | 120 km/h |
Export Remarks
This bare class II chassis is customized for refitting factories, widely used for forest fire vehicles, fire rescue trucks, emergency tool vehicles and municipal engineering special vehicles.
