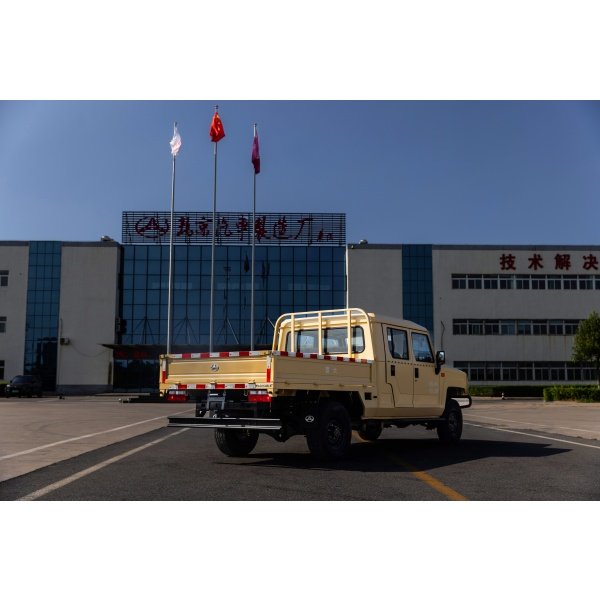

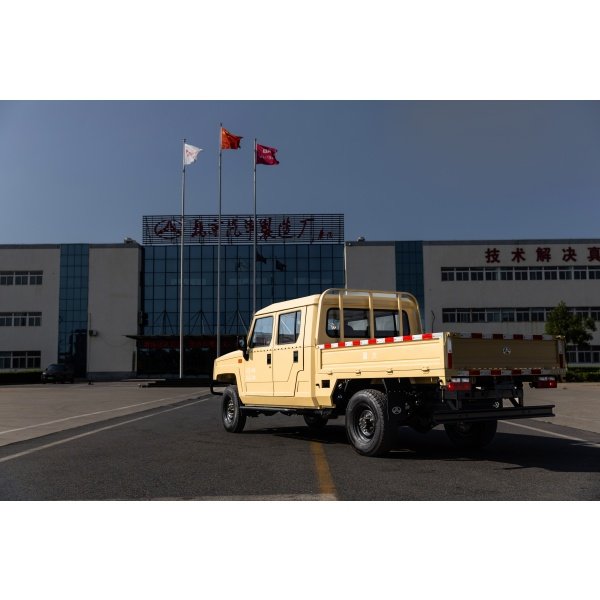

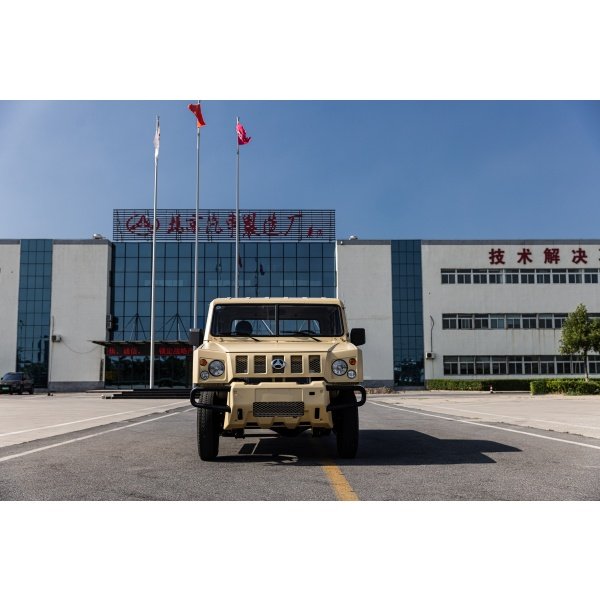

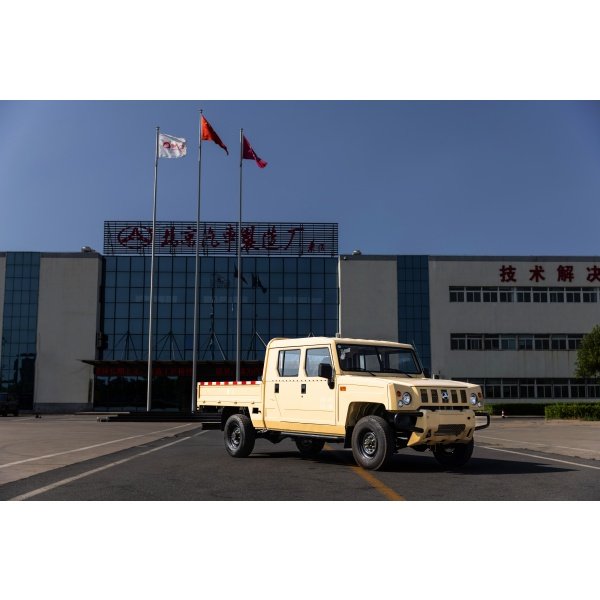

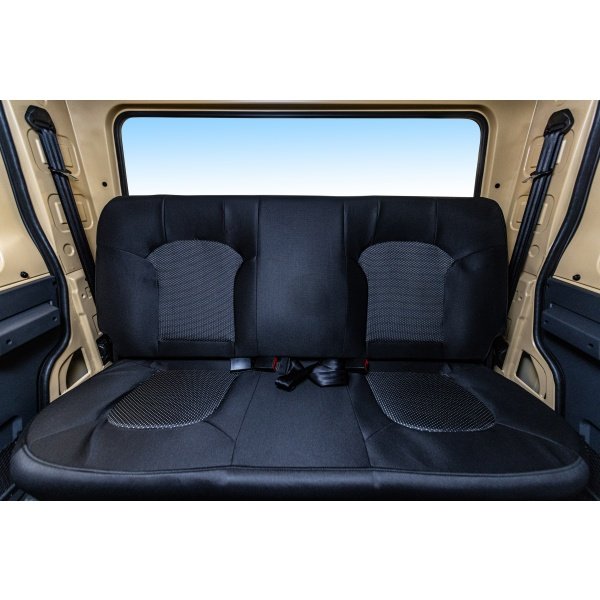

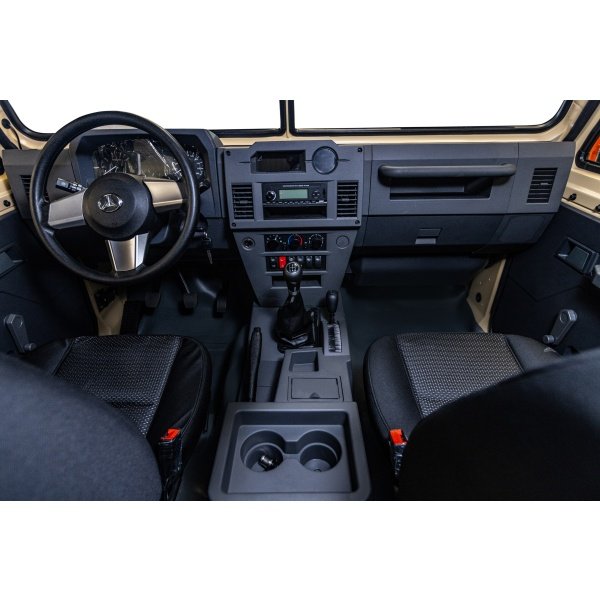

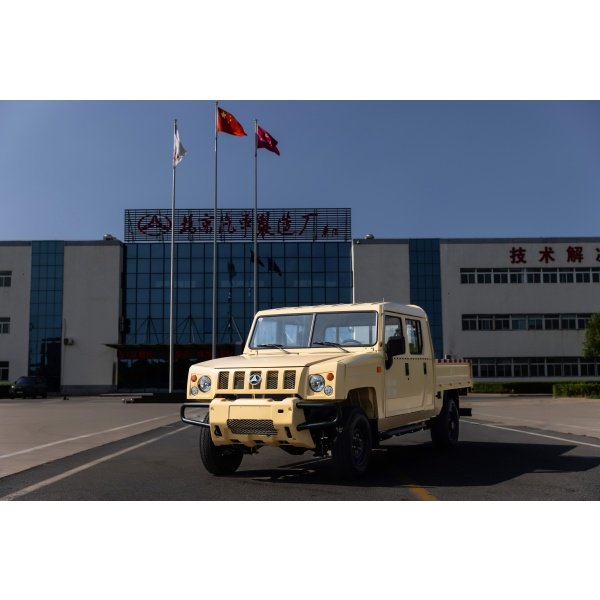

Warrior Single & Double Cab 4WD Pickup Truck | Export Diesel Off-Road Pickup
Two cab layouts available: single cab (2 seats) and double cab (5 seats), matched with 3035/3695mm two wheelbases to meet passenger and cargo transportation demands.
Standard Yuchai turbocharged diesel engine; 2.47L gasoline engine optional for overseas markets, complying with National III & National V export emission regulations.
Part-time four-wheel drive system and heavy-duty off-road tires, excellent cross-country performance for mountain, construction site and rural complex road conditions.
Equipped with manual 5-speed transmission, maximum speed up to 120km/h, stable power output and strong cargo carrying capacity for multi-scenario civilian operations.
Large 70L fuel tank for long cruising range, rugged high-strength body structure, suitable for daily transport, field inspection and global export business.
Products
Warrior Single & Double Cab 4WD Pickup Truck | Export Diesel Off-Road Pickup
Two cab layouts available: single cab (2 seats) and double cab (5 seats), matched with 3035/3695mm two wheelbases to meet passenger and cargo transportation demands.
Standard Yuchai turbocharged diesel engine; 2.47L gasoline engine optional for overseas markets, complying with National III & National V export emission regulations.
Part-time four-wheel drive system and heavy-duty off-road tires, excellent cross-country performance for mountain, construction site and rural complex road conditions.
Equipped with manual 5-speed transmission, maximum speed up to 120km/h, stable power output and strong cargo carrying capacity for multi-scenario civilian operations.
Large 70L fuel tank for long cruising range, rugged high-strength body structure, suitable for daily transport, field inspection and global export business.
Main Specification |
| Item | 3035 Single Cab | 3695 Single Cab | 3350 Double Cab | 3695 Double Cab |
Overall Dimension | 5110×1830×2025 mm | 5870×1850×2380 mm | 5110×1830×2025 mm | 5840×1850×2025 mm |
Wheelbase | 3035 mm | 3695 mm | 3350 mm | 3695 mm |
Front/Rear Track | 1540 mm | 1540 mm | 1540 mm | 1540 mm |
| Curb Weight | 1900 kg | 2350 kg | 2150 kg | 2330 kg |
| Gross Weight | 3955 kg | 3955 kg | 3955 kg | 4465 kg |
| Seating Capacity | 2 persons | 2 persons | 5 persons | 5 persons |
| Transmission | Manual 5-speed gearbox | Manual 5-speed gearbox | Manual 5-speed gearbox | Manual 5-speed gearbox |
| Drive Mode | Part-time 4WD | Part-time 4WD | Part-time 4WD | Part-time 4WD |
| Tire Spec | 265/75R16LT 10PR | 265/75R16LT 10PR | 265/75R16LT 10PR | 265/75R16LT 10PR |
Engine Universal Parameters |
Fuel Type | Diesel (2.47L gasoline optional for export) |
Engine Model | YCY24140 |
Displacement | 2360 mL |
| Power / Rotate Speed | 103kW/2950r/min |
| Torque / Rotate Speed | 350N·m/1400-2400r/min |
| Air Intake Mode | Turbocharged |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Emission Standard | Euro VI; Export version meets Euro III & V |
| Fuel Tank Volume | 70 L |
| Max Speed | 120 km/h |
Export Remarks
2.47L gasoline engine optional for overseas orders, emission standards reach National III and National V to satisfy different country import requirements.
