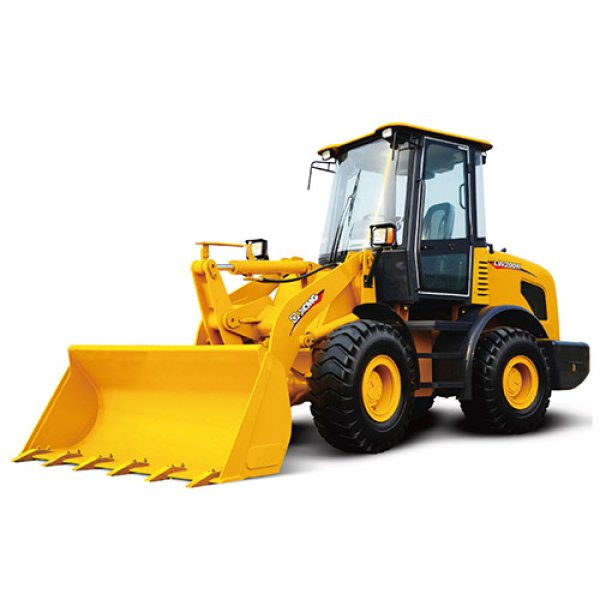

Wheel Loader LW200KN
Oriemac Wheel Loader With Double Rocker Arms Chinese Wheel Loader LW200KN For Sale
Wheel Loader
Wheel Loader LW200KNOriemac Wheel Loader With Double Rocker Arms Chinese Wheel Loader LW200KN For Sale
Description | Specification | Unit | |
Model | LW200KN | ||
Rated operating load | 2000 | kg | |
Bucket capacity | 0.9-1.1 | m3 | |
Machine weight | 6500±200 | kg | |
Dump clearance at maximum lift | 2530-2700 | mm | |
Reach at maximum lift | 860-980 | mm | |
Wheel base | 2300 | mm | |
Tread | 1550 | mm | |
Max.breakout force | ≥60 | kN | |
Hydraulic cycle time-raise | ≤5 | s | |
Total hydraulic cycle time | ≤8.5 | s | |
Min. turning radius over tyres | 4470 | mm | |
Articulation angle | 35 | ° | |
Gradeability | 28 | ° | |
Tyre size | 16/70-20 | ||
Overall machine dimension LxWxH | 6400x1980x2950 | mm | |
Model | LR4B3ZU24/0662 | ||
Rated Power/Speed | 66.2/2400 | kW/rpm | |
Travel Speed | Ⅰ-gear(F/R) | 0-9/0-9 | km/h |
Ⅱ-gear(F/R) | 0-26/0-26 | km/h |
